F-9 Rear Brake Panel – Katalog Suku Cadang Honda WIN GF6

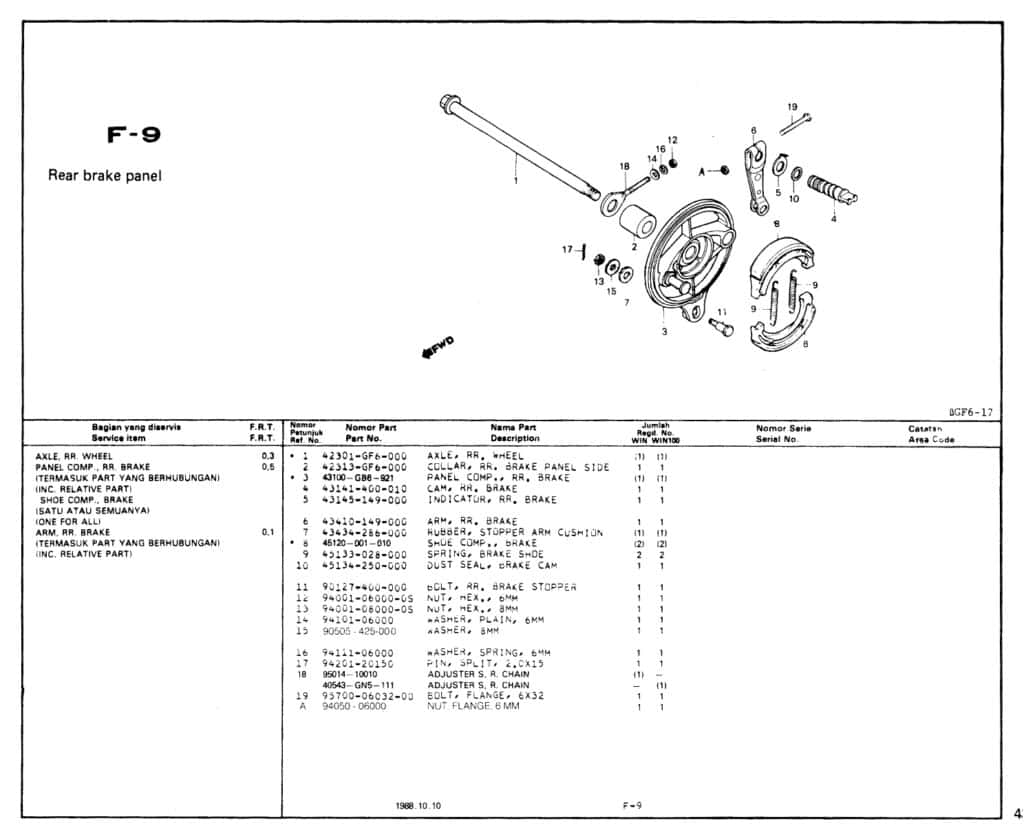

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 AXLE RR WHEEL 42301GF6000 -
2 42313GF6000 42313GF6000 -
3 43100GB6921 43100GB6921 -
4 CAM,FR BRAKE 43141400010 -
5 43145149001 43145149000 -
5 INDICATOR BRAKE 43145149001 -
6 ARM RR BRAKE 43410149000 -
7 RUBBER CUSHION 43434286000 -
8 SHOE BRAKE SET 45120001010 -
8 BRAKE SHOE (NA) 45120001011 BRAKE SHOE (NA)
9 SPRING BRAKE SHOE 45133028000 SPRING BRAKE SHOE
10 DUST SEAL,BRAKE 45134250000 DUST SEAL,BRAKE
11 BOLT,BRAKE STOP 90127400000 -
12 NUT HEX 6MM 94001060000S NUT HEX 6MM
13 NUT HEX 8MM 94001080000S NUT HEX 8MM
14 9410106000 9410106000 9410106000
15 WASHER 8MM 90505425000 WASHER 8MM
16 WASHER,SPRING 6MM 9411106000 WASHER,SPRING 6MM
17 9420120130 9420120130 -
18 9501410010 9501410010 -
18 ADJUSTER R CHAIN 40543GN5111 -
19 957000603200 957000603200 -
A NUT,FLANGE 6MM 9405006000 NUT,FLANGE 6MM
