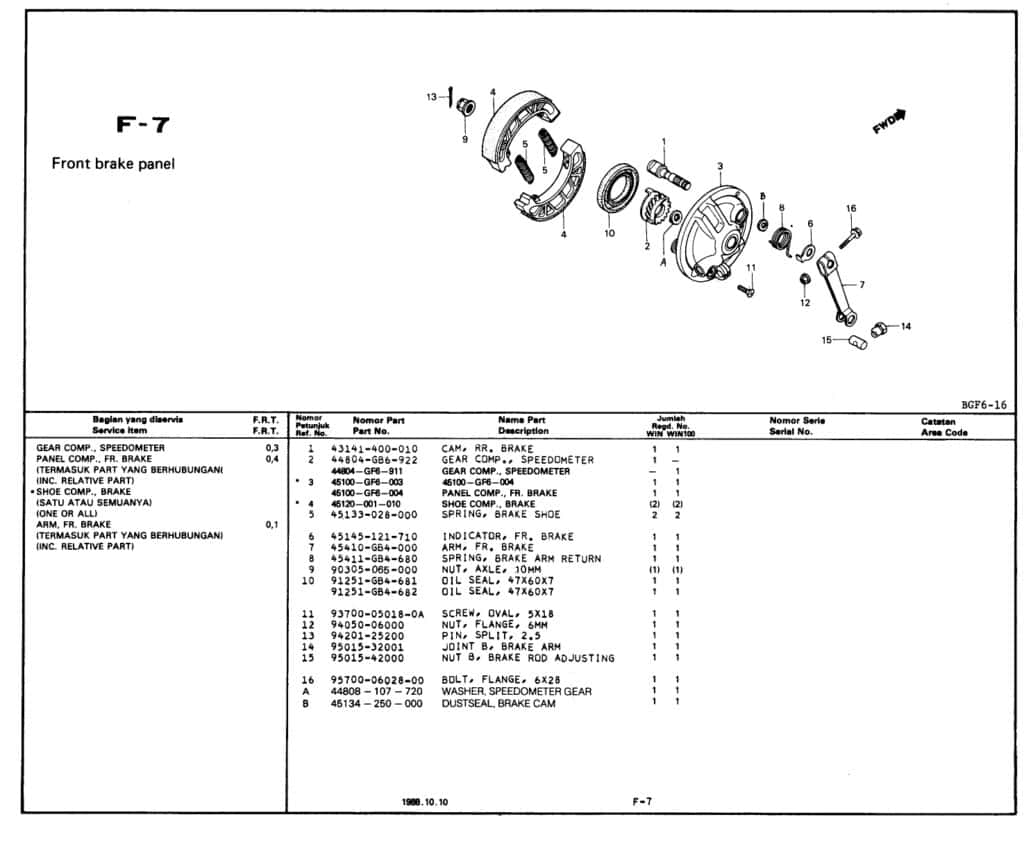

F-7 Front Brake Panel – Katalog Suku Cadang Honda WIN GF6
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
CAM,FR BRAKE |
43141400010 |
-
|
| 2 |
44804GF6922 |
44804GF6922 |
-
|
| 2 |
44804GF6911 |
44804GF6911 |
-
|
| 3 |
45100GF6003 |
45100GF6003 |
-
|
| 3 |
45100GF6004 |
45100GF6004 |
-
|
| 4 |
SHOE BRAKE SET |
45120001010 |
-
|
| 4 |
BRAKE SHOE (NA) |
45120001011 |
|
| 5 |
SPRING BRAKE SHOE |
45133028000 |
|
| 6 |
45145121711 |
45145121710 |
-
|
| 6 |
INDICATOR BRAKE |
45145121711 |
-
|
| 7 |
45410GB400 |
45410GB400 |
-
|
| 8 |
45411BG4680 |
45411BG4680 |
-
|
| 9 |
90305065000 |
90305065000 |
-
|
| 10 |
91251GB4681 |
91251GB4681 |
-
|
| 10 |
OIL SEAL 47X60X7 |
91251GB4682 |
-
|
| 11 |
93700050180A |
93700050180A |
-
|
| 12 |
NUT,FLANGE 6MM |
9405006000 |
|
| 13 |
PIN,SPLIT 2.5X20 |
9420125200 |
-
|
| 14 |
JOINT BRAKE ARM |
9501532001 |
|
| 15 |
NUT ADJUST |
9501542000 |
|
| 16 |
957000602800 |
957000602800 |
-
|
| A |
WASHER SPDMT GEAR |
44808107720 |
-
|
| B |
DUST SEAL,BRAKE |
45134250000 |
|
