F-3 Handle Lever Switch Cable – Katalog Suku Cadang Honda WIN GF6

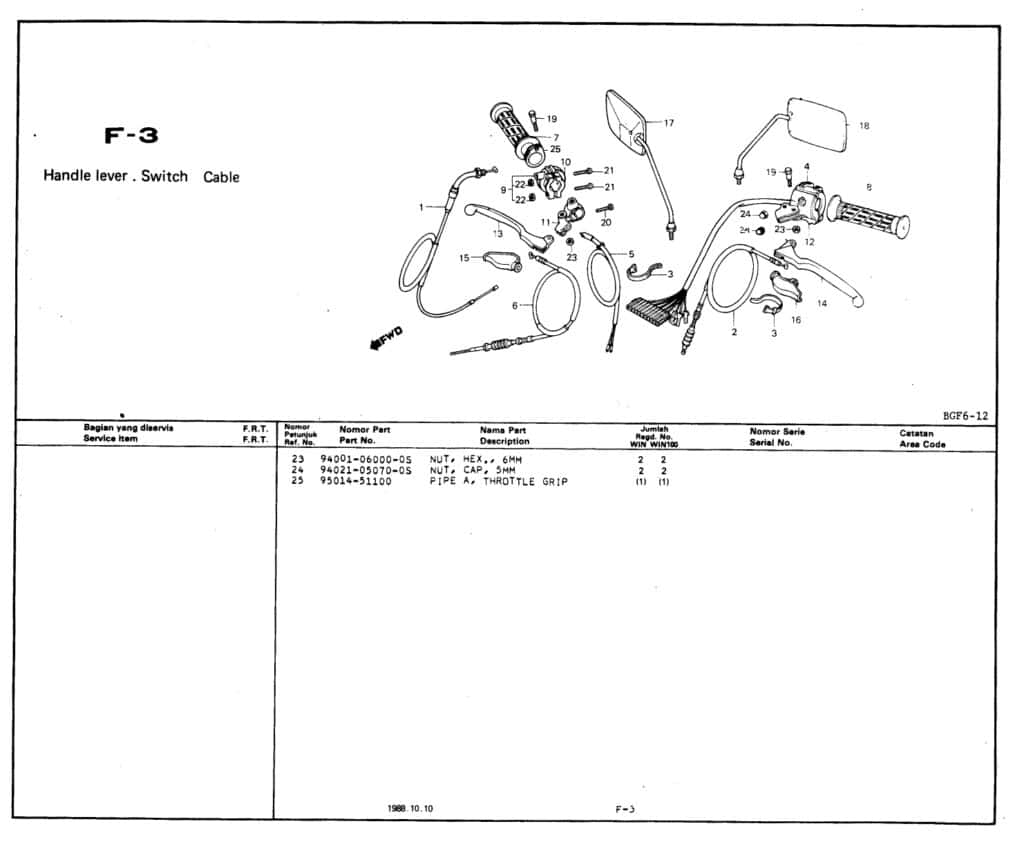

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 CABLE COMP THRTL 17910GF6000 CABLE COMP THRTL
2 CABLE COMP CLUTCH 22870GF6930 CABLE COMP CLUTCH
3 BAND B1 WIRE /K5 32161404000 BAND B1 WIRE /K5
4 35210GF6003 35210GF6003 -
4 35210GFG910 35210GFG910 -
5 35340401082 35340401082 -
6 CABLE COMP FR, BRK 45450GF6000 CABLE COMP FR, BRK
7 GRIP R HDL 53165KC5000 GRIP R HDL
8 GRIP L HDL 53166KC5000 GRIP L HDL
9 53167166610 53167166610 -
10 HOUSING,UN.THRT. 53168166000 -
11 53172GF6000 53172GF6000 -
12 LEVER R HDL 53175GF6000 LEVER R HDL
13 LEVER L HDL 53176GF6000 -
14 53178GF6000 53178GF6000 -
15 53179GF6000 53179GF6000 -
16 88110GF6000 88110GF6000 -
16 88110GF6111 88110GF6111 -
17 88120GF6000 88120GF6000 -
17 88120GF6111 88120GF6111 -
18 90114310000 90114310000 -
19 92000060250A 92000060250A -
20 935000502206 935000502206 -
21 9400105070OS 9400105070OS -
22 NUT HEX 6MM 94001060000S NUT HEX 6MM
23 NUT HEX.CAP 5MM 94021050700S -
24 PIPE A,GRIP 9501451100 -
