F-17 Step Stand – Katalog Suku Cadang Honda WIN GF6

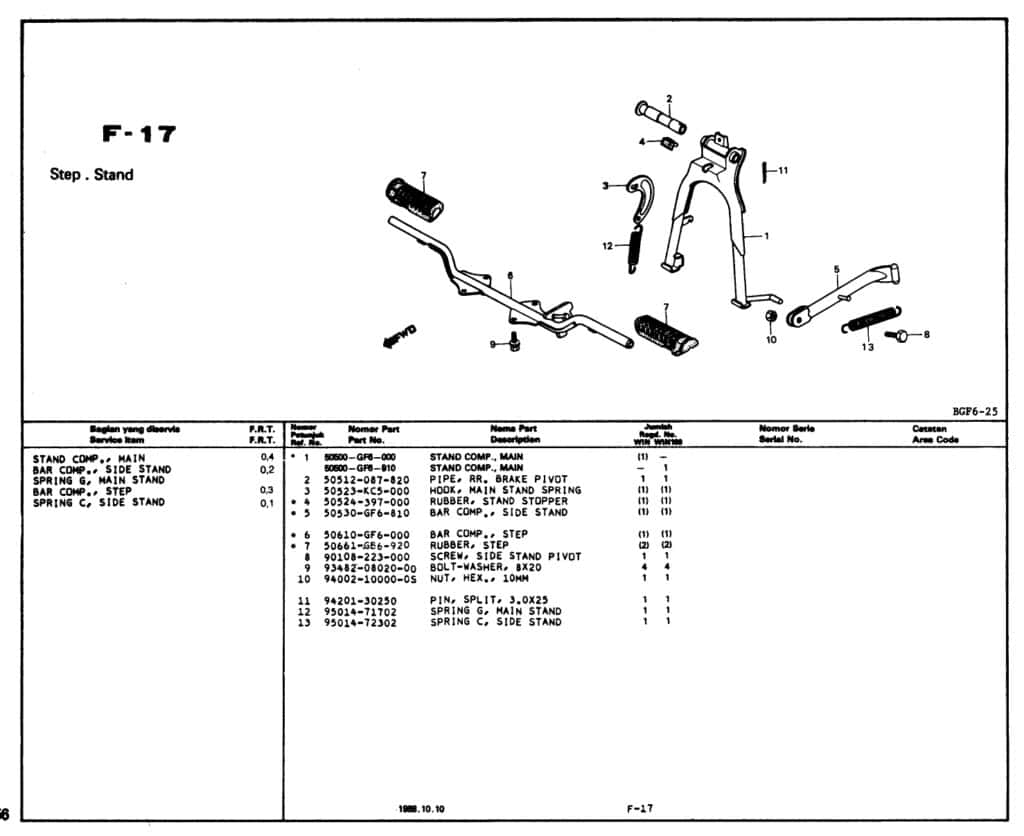

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 50500GF6000 50500GF6000 -
1 50500GF6910 50500GF6910 -
2 50512087820 50512087820 -
3 HOOK MAIN STAND 50523KC5000 HOOK MAIN STAND
4 RUBBER STAND STOP 50524397000 RUBBER STAND STOP
5 50530GF6810 50530GF6810 -
6 50610GF6000 50610GF6000 -
7 50661GB6810 50661GB6810 -
8 SCREW STAND PIVOT 90108223000 SCREW STAND PIVOT
9 934020802000 934820802000 -
10 NUT HEX 10MM 94002100000S NUT HEX 10MM
11 PIN,SPLIT 30X25 9420130250 PIN,SPLIT 30X25
12 SPRING MAIN STAND 9501471702 SPRING MAIN STAND
13 SPRING SIDE STAND 9501472302 SPRING SIDE STAND
