F-14 Air Cleaner Battery – Katalog Suku Cadang Honda WIN GF6

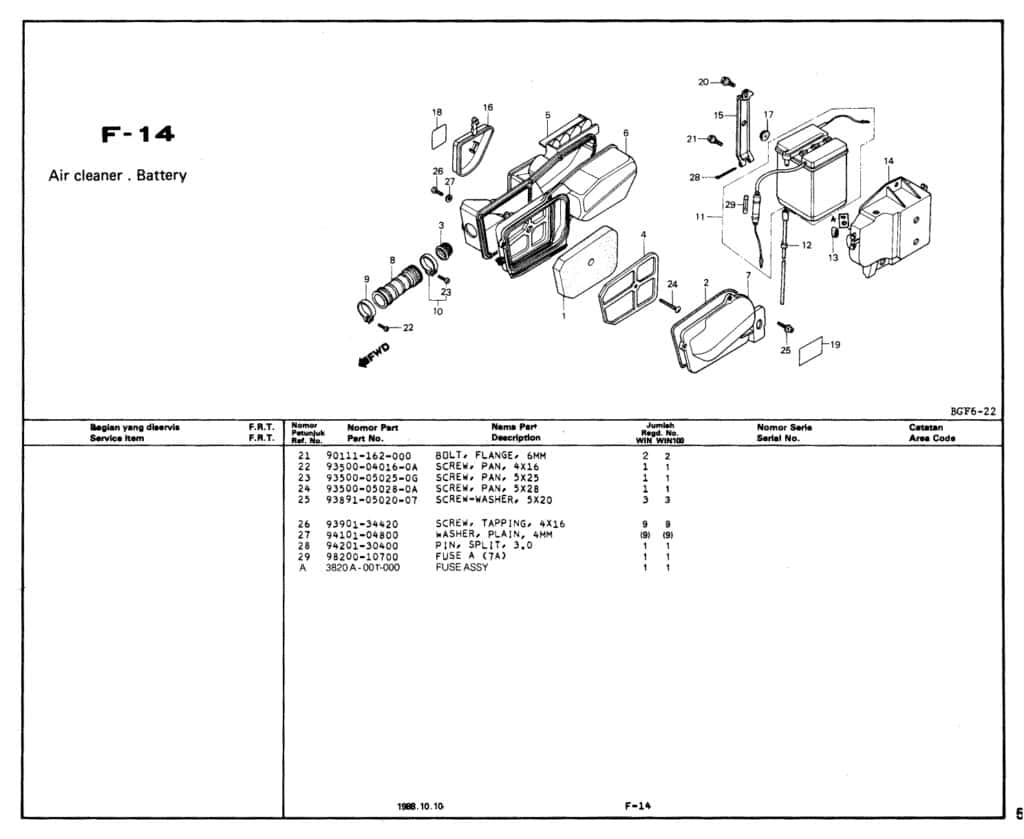

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 ELEMENT A CLEANER 17211GF6000 -
2 17212GF6000 17212GF6000 -
3 17221198000 17221198000 -
4 17224GF6000 17224GF6000 -
5 CASE AIR UNDER 17230GF6000 -
6 17231GF6000 17231GF6000 -
7 COVER A/C 17233GF6000 -
8 TUBE A/C CONN 17253GF6000 TUBE A/C CONN
9 BAND A /K5 17255323000 -
10 BAND A CONN TUBE 17255329000 BAND A CONN TUBE
12 31502GF6000 31502GF6000 -
14 CASE BATTERY 50380GF6000 -
15 50385GF6000 50385GF6000 -
16 CAP TOOL BOX 83502GF6000 CAP TOOL BOX
17 RUBBER BATTERY BOX 83618323000 RUBBER BATTERY BOX
18 87506GF6310 87506GF6310 -
18 87506GF6300 87506GF6300 -
18 87506GF6111 87506GF6111 -
19 87506KCJ920 87506KCJ920 -
19 87507340670 87507340670 -
19 87507KC5111 87507KC5111 -
20 90102GF6000 90102GF6000 -
21 BOLT FLANGE 6MM 90111162000 BOLT FLANGE 6MM
22 93500040160A 93500040160A -
23 SCREW PAN 5X25 93500050250G SCREW PAN 5X25
24 SCREW,PAN 5X28 93500050280A -
25 SCREW,WASHER 5X20 938910502007 -
26 SCREW TAPPING 4X16 9390134420 SCREW TAPPING 4X16
27 WASHER, PLAIN, 4MM 9410104800 WASHER, PLAIN, 4MM
28 9420130400 9420130400 -
29 9830010700 9830010700 -
A 3820A001000 3820A001000 -
