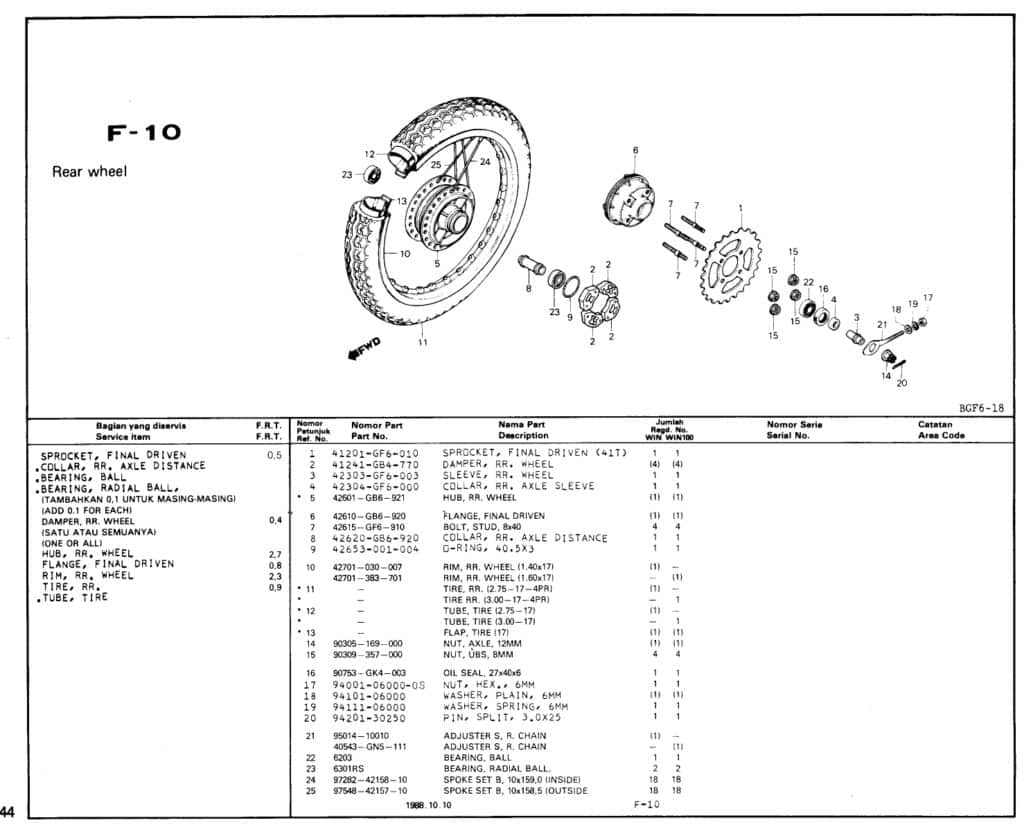

F-10 Rear Wheel – Katalog Suku Cadang Honda WIN GF6

#	Informasi Produk	Visual
1	SPROCKET DRIVEN Part Number : `41201GF6010`
2	41241GB4771 Part Number : `41241GB4770`
2	DAMPER,RR WHEEL SET Part Number : `41241GB4771`
3	42303GF6003 Part Number : `42303GF6003`
4	42304GF6000 Part Number : `42304GF6000`
5	42601GB6921 Part Number : `42601GB6921`
6	FLANGE FINAL DRV Part Number : `42610GB6920`
7	42615GF6910 Part Number : `42615GF6910`
8	COLLAR RR AXLE Part Number : `42620GB6920`
9	O-RING 40.5X3 Part Number : `42653001004`
10	42701030007 Part Number : `42701030007`
11	42701383701 Part Number : `42701383701`
12	90305169000 Part Number : `90305169000`
13	NUT HEX 8MM Part Number : `90309357000`
14	90753GK4003 Part Number : `90753GK4003`
15	NUT HEX 6MM Part Number : `94001060000S`
16	WASHER PLAIN 6MM Part Number : `9410106000`
17	WASHER,SPRING 6MM Part Number : `9411106000`
18	PIN,SPLIT 30X25 Part Number : `9420130250`
19	9501410010 Part Number : `9501410010`
20	50543GN5111 Part Number : `50543GN5111`
21	Bearing Ball 6203 Part Number : `HB6203`
22	Bearing Ball 6201 Part Number : `HB6201`
23	972824215810 Part Number : `972824215810`
24	975484215710 Part Number : `975484215710`
