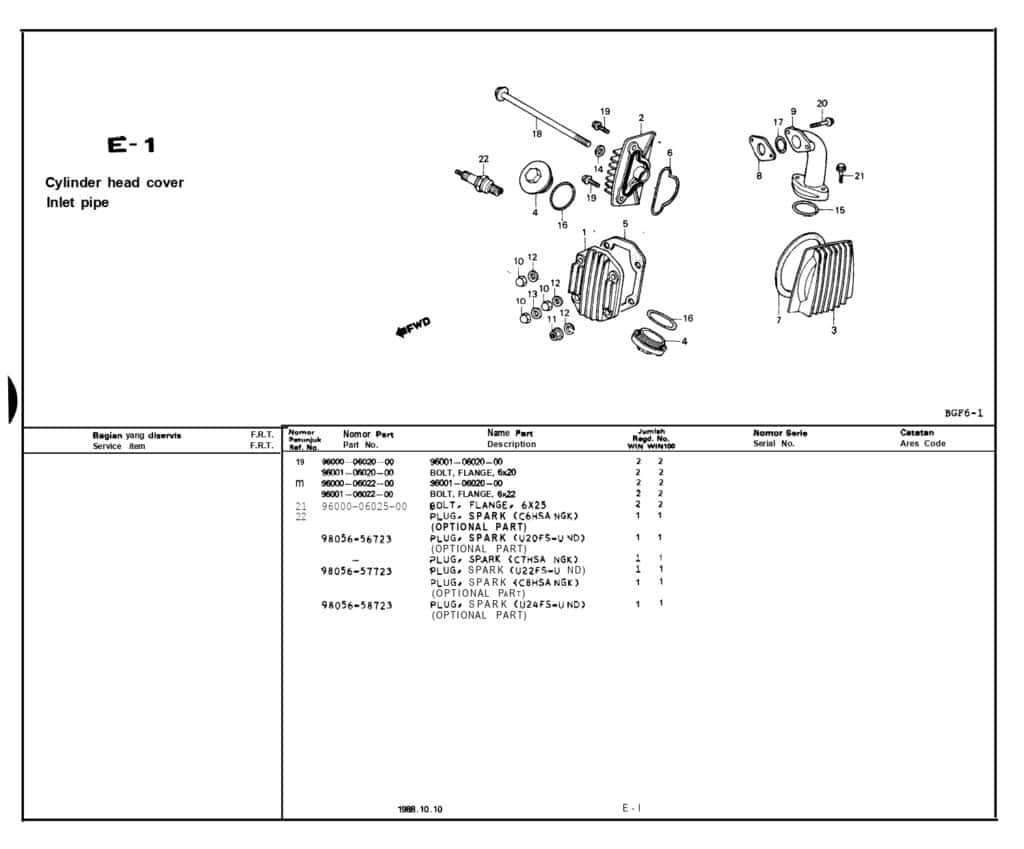

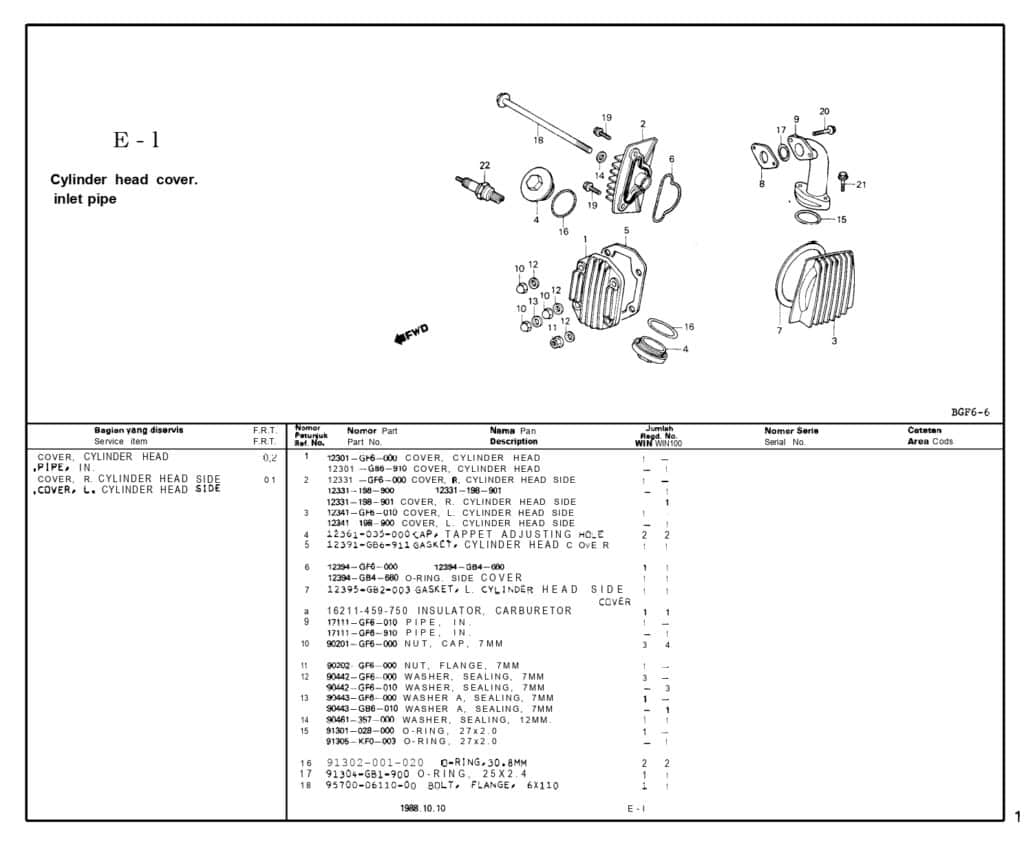

E1 – Cylinder Head Cover – Katalog Honda WIN GF6

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 COVER CYL HEAD 12301GF6000 -
1 COVER CYL HEAD (SLV) 12301GB6910 -
2 COVER L CYL HEAD 12331198305 -
3 12341GF6010 12341GF6010 -
3 12341198900 12341198900 -
4 CAP TAPPET 12361035000 CAP TAPPET
5 GASKET CYLINDER HEAD 12391GB6911 -
6 12394GF6000 12394GF6000 -
6 12394GB4680 12394GB4680 -
7 GASKET L CYLINDER HEAD 12395GB2003 -
8 16211459750 16211459750 -
9 17111GF6010 17111GF6010 -
9 17111GF6910 17111GF6910 -
10 93201GF6000 93201GF6000 -
11 90202GF6000 90202GF6000 -
12 90442GF6000 90442GF6000 -
12 WASHER SEAL 7MM 90442GF6010 -
13 90443GF6000 90443GF6000 -
13 WASHER A SEAL 7MM 90443GF6010 -
14 WASHER SEAL 12MM 90461357000 WASHER SEAL 12MM
15 9130028000 9130028000 -
15 O-RING,27X2 91305KF0003 -
16 O-RING, 30.8MM 91302001020 O-RING, 30.8MM
17 ORING 25 X 2.4 91304GB1900 ORING 25 X 2.4
18 957000611000 957000611000 -
19 960000602000 960000602000 -
19 BOLT FLANGE 6X20 960010602000 BOLT FLANGE 6X20
20 960000602200 960000602200 -
20 BOLT FLANGE 6X22 960010602200 BOLT FLANGE 6X22
21 BOLT,FLANGE 6X25 960000602500 -
22 9605656723 9605656723 -
22 SPARK PLUG U22FSU (DS) 9805657723 SPARK PLUG U22FSU (DS)
