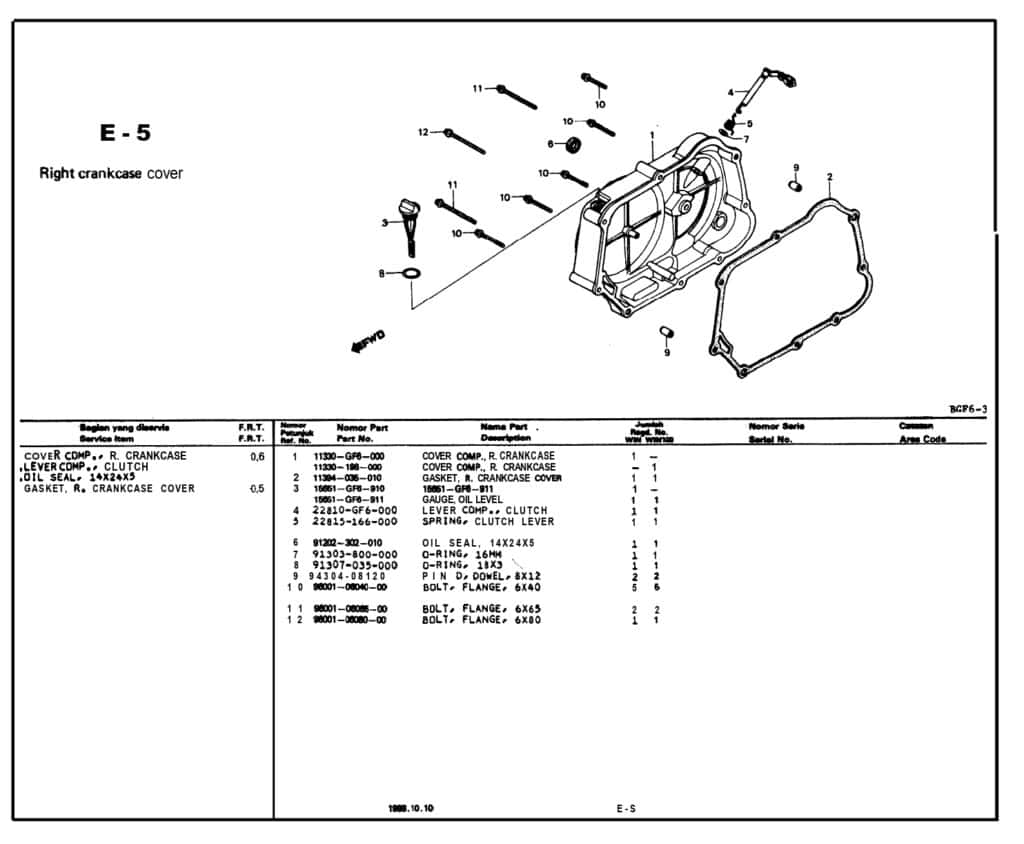

E-5 Right Crankcase Cover – Katalog Suku Cadang Honda WIN GF6
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
11330GF6000 |
11330GF6000 |
-
|
| 1 |
11330198000 |
11330198000 |
-
|
| 2 |
GASKET R COVER |
11394035010 |
|
| 3 |
16651GF6910 |
16651GF6910 |
-
|
| 3 |
16651GF6911 |
16651GF6911 |
-
|
| 4 |
22810GF6000 |
22810GF6000 |
-
|
| 5 |
SPRING, CLUTCH LEVER |
22815166000 |
-
|
| 6 |
OIL SEAL,13.8 X 24 X 5 |
91202302010 |
|
| 7 |
91303800000 |
91303800000 |
-
|
| 8 |
O-RING, 18X3 |
91307035000 |
|
| 9 |
9430408120 |
9430408120 |
-
|
| 10 |
960010804000 |
960010804000 |
-
|
| 11 |
980010800500 |
980010800500 |
-
|
| 12 |
980010806000 |
980010806000 |
-
|
