E-3 Camsaft Valve – Katalog Suku Cadang Honda WIN GF6

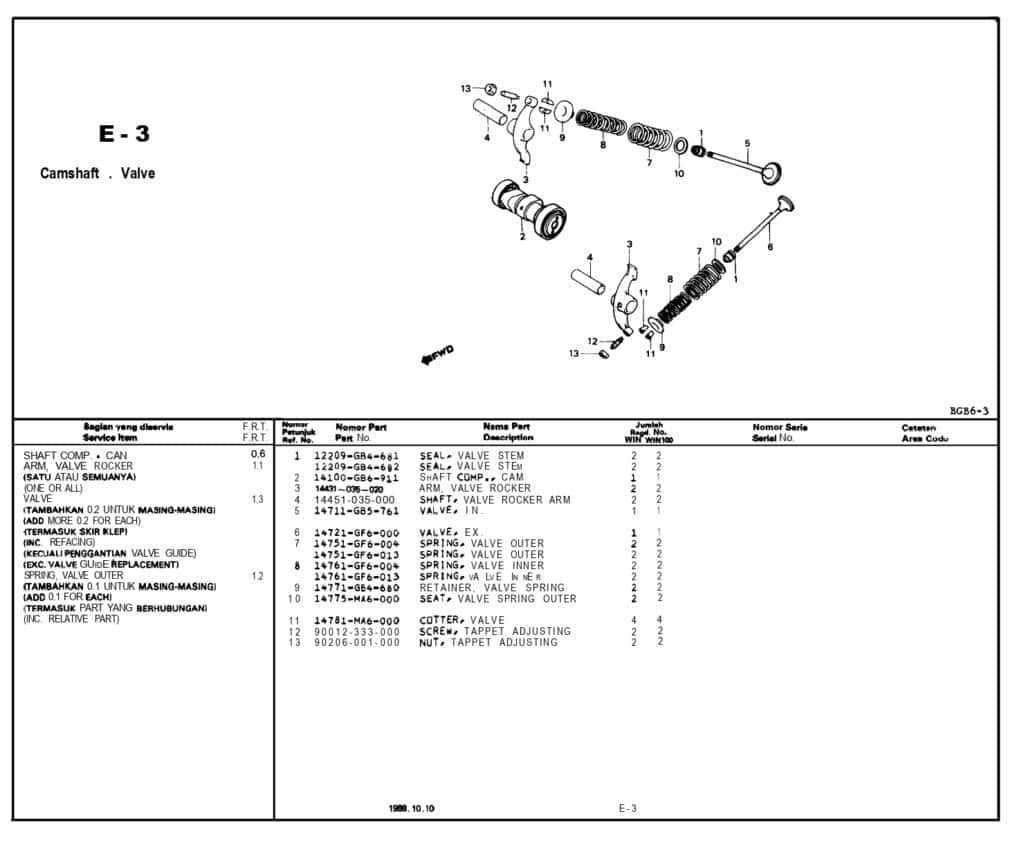

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 SEAL,VALVE STEM 12209GB4681 SEAL,VALVE STEM
1 SEAL,VALVE STEM 12209GB4682 SEAL,VALVE STEM
2 CAMSHAFT 14100GB6911 -
3 ARM VALVE ROCKER 14431035020 -
4 14451035001 14451035000 -
4 SHAFT ROCKER ARM 14451035001 SHAFT ROCKER ARM
5 14711GB5761 14711GB5761 -
6 VALVE,EXHAUST 14721GF6000 VALVE,EXHAUST
7 14751GF6004 14751GF6004 -
7 14751GF6013 14751GF6013 -
8 14761GF6004 14761GF6004 -
8 14761GF6013 14761GF6013 -
9 RETAINER 14771GB4680 RETAINER
10 14775MA6000 14775MA6000 -
11 COTTER,VALVE 14781MA6000 COTTER,VALVE
12 SCREW,TAPPET ADJ 90012333000 SCREW,TAPPET ADJ
13 NUT,TAPPET ADJUST 90206001000 NUT,TAPPET ADJUST
