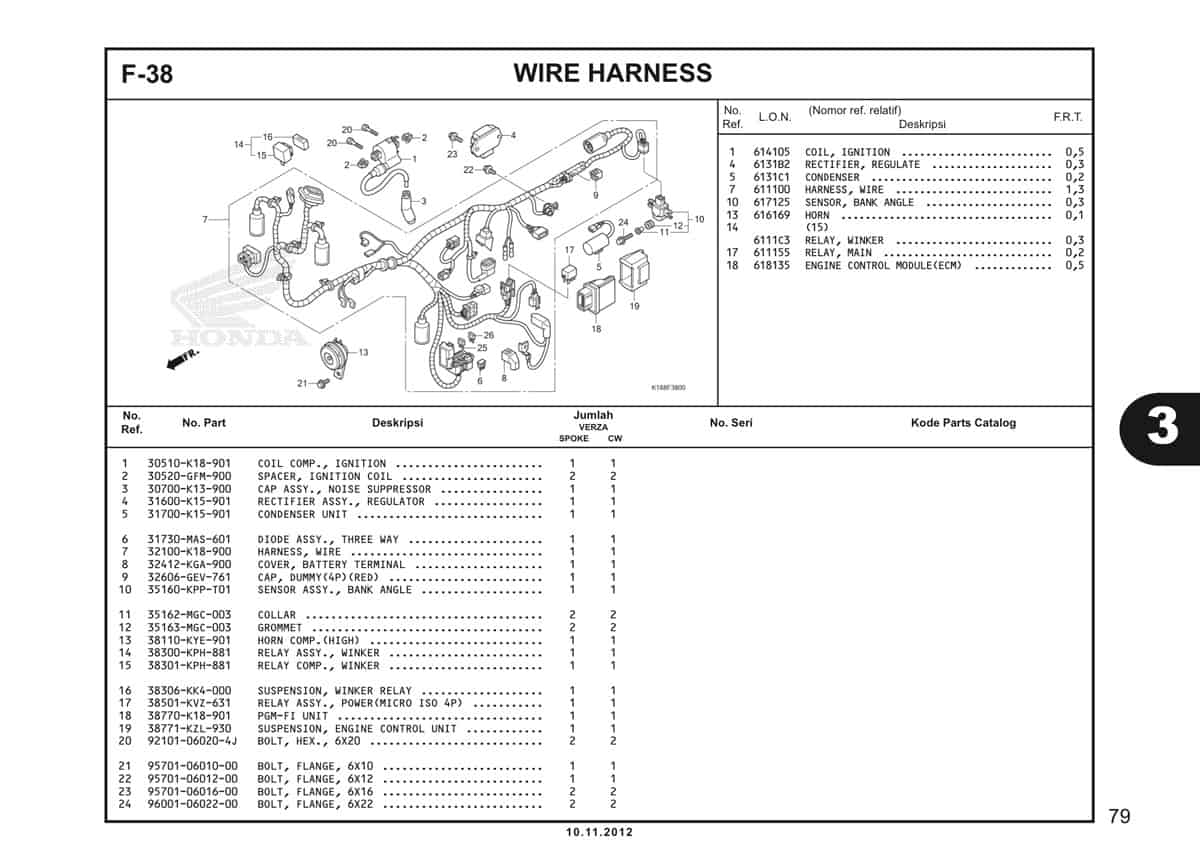

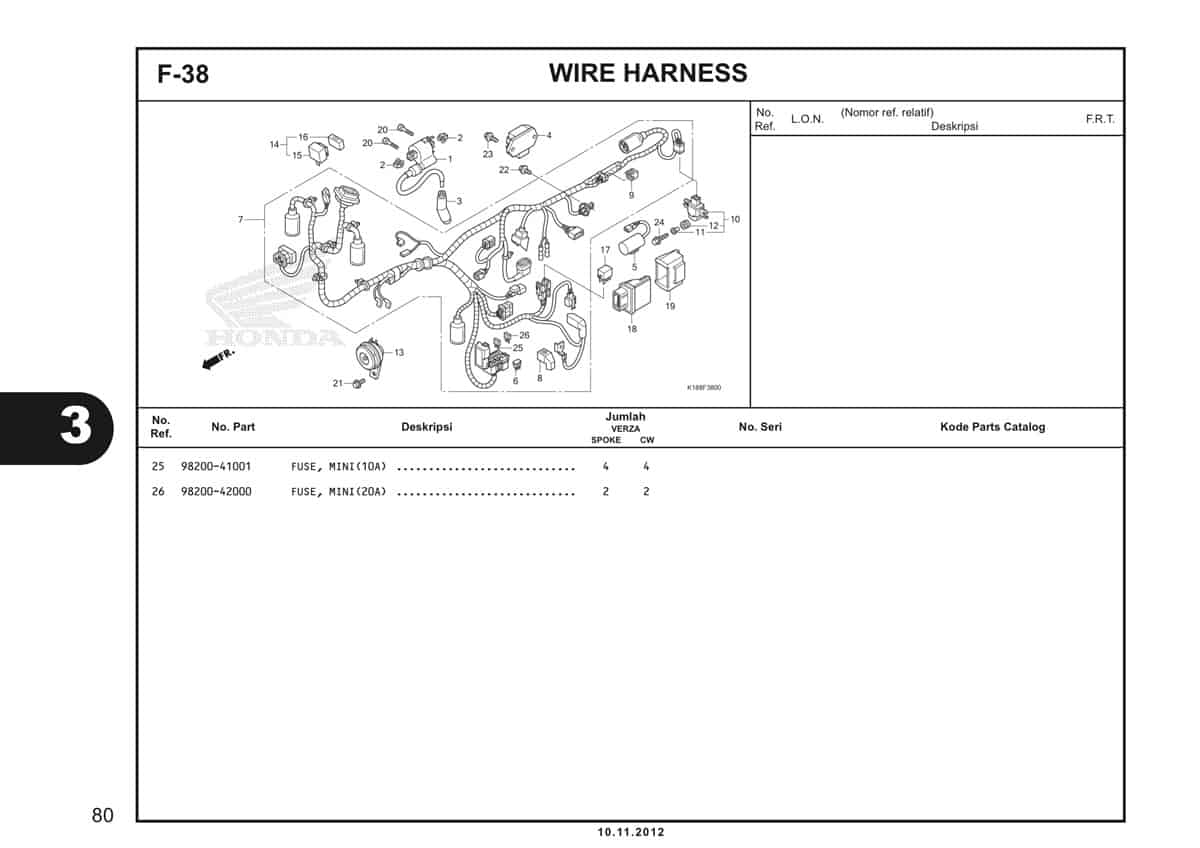

F38 – Wire Harness – Katalog Honda Verza 150 K18

#	Informasi Produk	Visual
1	Coil Comp Ignition Part Number : `30510K18901`
2	Spacer gnition Coil Part Number : `30520GFM900`
3	Cap Assy Noise Suppressor Part Number : `30700K13900`
3	Cap Assy Noise Suppressor Part Number : `30700K13901`
4	Rectifier Assy Regulator Part Number : `31600K15901`
5	Condenser Assy Part Number : `31700K15901`
6	Diode Assy 3 Way Part Number : `31730MAS601`
7	Harness Wire Part Number : `32100K18900`
8	Cover Battery Terminal Part Number : `32412KGA900`
9	Dummy WPC 4P 090 M (RED) Part Number : `32606GEV761`
10	Sensor Assy Bank Part Number : `35160KPPT02`
11	Collar Part Number : `35162MGC003`
12	Grommet Part Number : `35163MGC003`
13	Horn Comp (High) Part Number : `38110KYE901`
14	Relay Assy Winker Part Number : `38300KPH881`
15	Relay Comp Winker Part Number : `38301KPH881`
16	Suspension Relay Part Number : `38306KK4000`
17	Relay Comp Micro Iso Low Hight Part Number : `38501KVZ631`
18	Unit Comp PGM-FI/IGN Part Number : `38770K18902`
19	Suspension Engine Control Part Number : `38771KZL930`
20	Bolt Hex 6X20 Part Number : `92101060204J`
21	Bolt Flange 6X10 Part Number : `957010601000`
22	Bolt Flange 6X12 Part Number : `957010601200`
22	Bolt Flange 6X12 Part Number : `957010601208`
22	Bolt Flange 6X12 Part Number : `957010601207`
23	Bolt Flange 6X16 Part Number : `957010601608`
24	Bolt Flange 6X22 Part Number : `960010602200`
25	Fuse Mini 10A Part Number : `9820041000`
26	Fuse Mini 20A Part Number : `9820042000`
