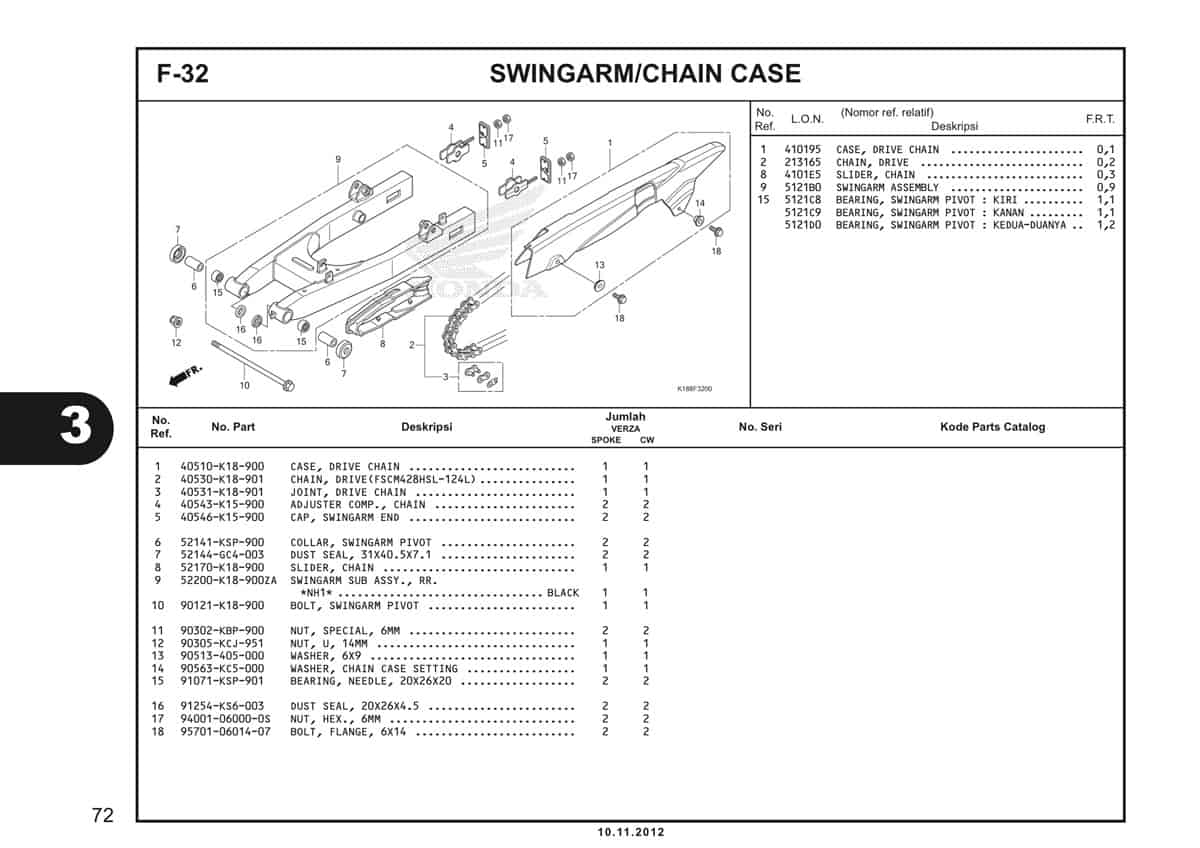

F32 – Swingarm/Chain Case – Katalog Honda Verza 150 K18

#	Informasi Produk	Visual
1	Case Drive Chain Part Number : `40510K18900`
2	Chain Drive 428HSL-124(FS) Part Number : `40530K18901`
3	Joint Drive Chain (RJ) Part Number : `40531K18901`
4	Adjuster Comp Chain Part Number : `40543K15900`
5	Cap Swingarm End Part Number : `40546K15900`
6	Collar Swingarm Pivot Part Number : `52141KSP900`
7	Dust Seal 31X40.5X7.1 Part Number : `52144GC4003`
8	Slider Chain Part Number : `52170K18900`
9	Swingarm Sub Assy Rear Part Number : `52200K18900ZA`
10	Bolt Swingarm Pivot Part Number : `90121K18900`
11	Nut Special 6MM Part Number : `90302KBP900`
12	Nut U 14MM Part Number : `90305KCJ951`
13	Washer 6X9 Part Number : `90513405000`
14	Washer Chain Case Part Number : `90563KC5000`
15	Bearing Needle 20X26X20 Part Number : `91071KSP901`
16	Dust Seal 20x26x4.5 Part Number : `91254KS6003`
17	Nut Hex 6MM Part Number : `94001060000S`
18	Bolt Flange 6X14 Part Number : `957010601407`
