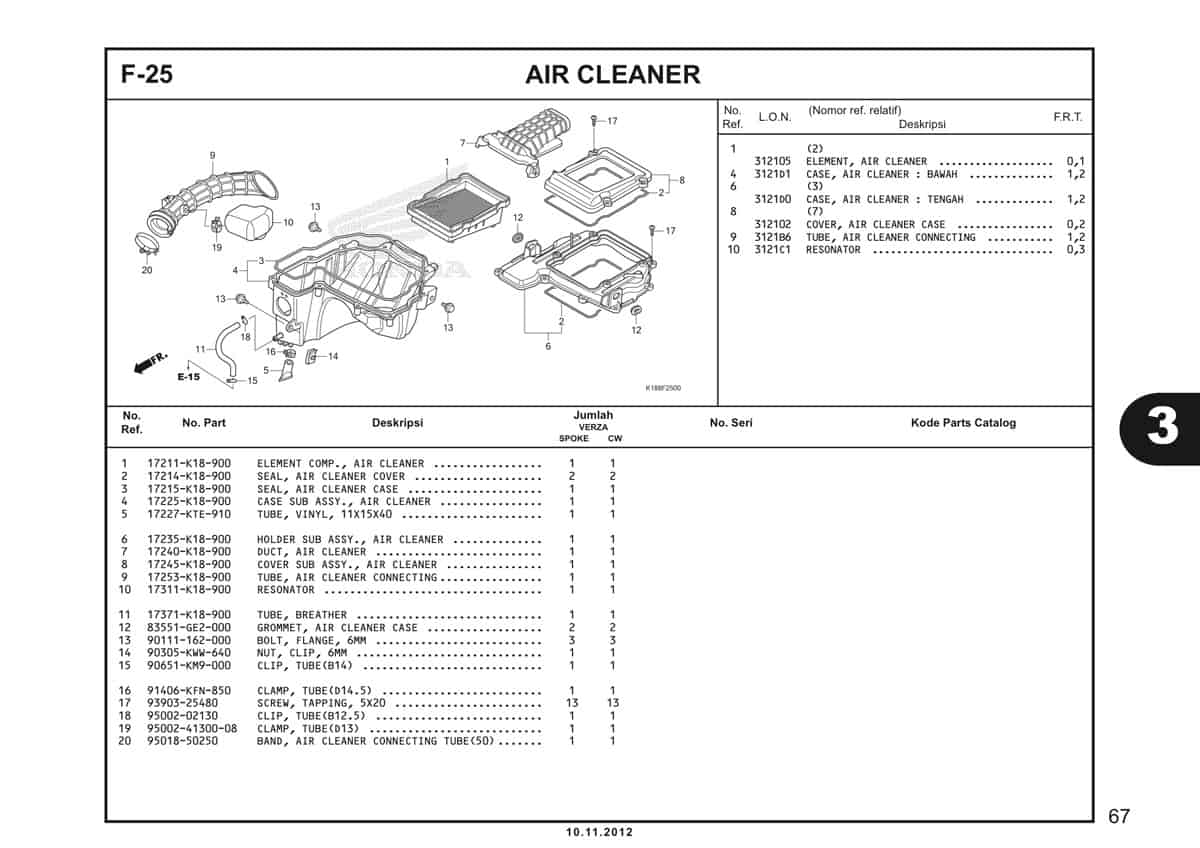

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Element Comp A/C | 17211K18900 |
|
| 2 | Seal Air Cleaner Cover | 17214K18900 |
|
| 3 | Seal Air Cleaner Case | 17215K18900 |
|
| 4 | Case Sub Assy Air Cleaner | 17225K18900 |
|
| 5 | Tube Vinyl 11X15X40 | 17227KTE910 |
|
| 6 | Holder Sub Assy Air Cleaner | 17235K18900 |
|
| 7 | Duct Air Cleaner | 17240K18900 |
|
| 8 | Cover Sub Assy Air Cleaner | 17245K18900 |
|
| 9 | Tube Air Cleaner Connecting | 17253K18900 |
|
| 10 | Resonator | 17311K18900 |
|
| 11 | Tube Breather | 17371K18900 |
|
| 12 | Grommet A/C | 83551GE2000 |
|
| 13 | Bolt Flange 6MM | 90111162000 |
|
| 14 | Nut Clip 6MM | 90305KWW640 |
|
| 15 | Clip Tube B14 | 90651KM9000 |
|
| 16 | Clamp Tube D14.5 | 91406KFN850 |
|
| 17 | Screw Tapping 5X2 | 9390325480 |
|
| 18 | Clip Tube B12.5 | 9500202130 |
|
| 19 | Clamp Tube D13.0 | 950024130008 |
|
| 20 | Band A/C Connecting Tube 50 | 9501850250 |
|
