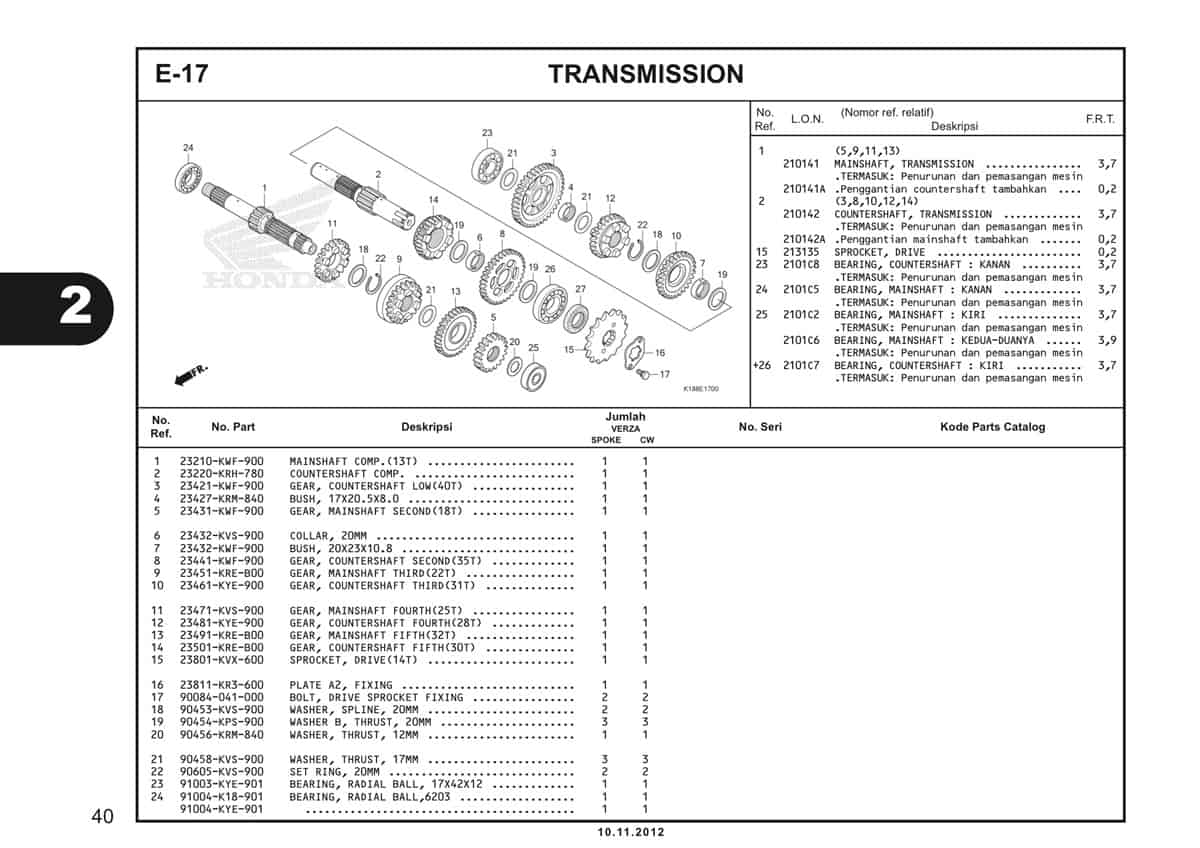

E17 – Transmission – Katalog Honda Verza 150 K18

#	Informasi Produk	Visual
1	Mainshaft Comp Part Number : `23210KWF900`
2	Countershaft Comp Part Number : `23220KRH780`
3	Gear Countershaft Comp Part Number : `23421KWF900`
4	Bush 17X20.5X8.0 Part Number : `23427KRM840`
5	Gear M-2 Part Number : `23431KWF900`
6	Bush 20MM Part Number : `23432KVS900`
7	Bush 20x23x10.8 Part Number : `23432KWF900`
8	Gear C-2 Part Number : `23441KWF900`
9	Gear M-3 Part Number : `23451KREB00`
10	Gear C-3 Part Number : `23461KYE900`
11	Gear M-4 Part Number : `23471KVS900`
12	Gear C-4 Part Number : `23481KYE900`
13	Gear M-5 Part Number : `23491KREB00`
14	Gear C-5 Part Number : `23501KREB00`
15	Sprocket Drive (14T) Part Number : `23801KVX600`
16	Plate A2 Fixing Part Number : `23811KR3600`
17	Bolt Drive Socket Part Number : `90084041000`
18	Washer Spline 20MM Part Number : `90453KVS900`
19	Washer Thrust 20MM B Part Number : `90454KPS900`
20	Washer Thrust 12MM Part Number : `90456KRM840`
21	Washer Thrust 17MM Part Number : `90458KVS900`
22	Set Ring 20MM Part Number : `90605KVS900`
23	Bearing Radial Ball 17X42X12 Part Number : `91003KYE901`
24	Bearing Radial Ball 6203 (C3) Part Number : `91004K18901`
24	Bearing Radial Ball 17X40X12 Part Number : `91004KYE901`
25	Bearing Radial Ball 6201U Part Number : `91005K18901`
25	Bearing Radial Ball 12X32X10 Part Number : `91005KYE901`
26	Bearing Radial Ball 6204 Part Number : `91006K18901`
26	Bearing Radial Ball 20X47X14 Part Number : `91006KYE901`
27	Oil Seal 20X34X7 Part Number : `91216KSP911`
