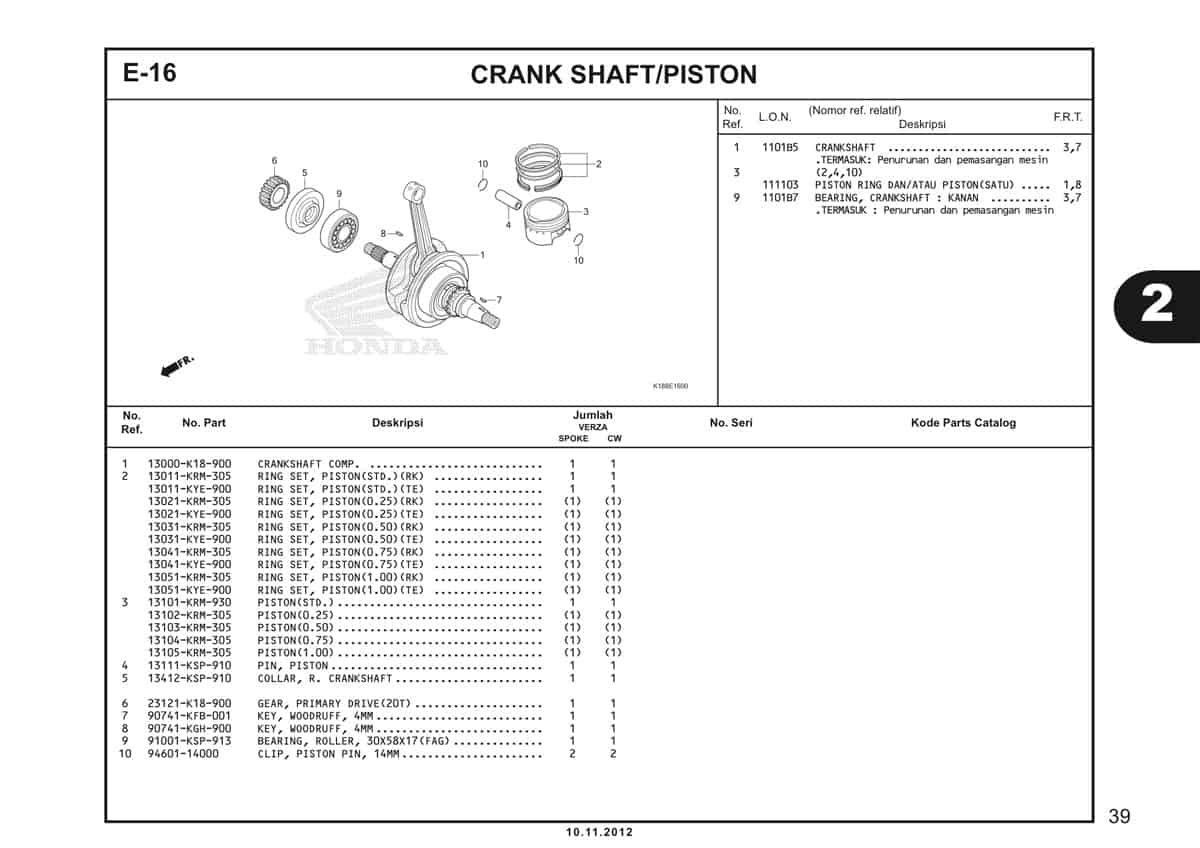

E16 – Crank Shaft/Piston – Katalog Honda Verza 150 K18

#	Informasi Produk	Visual
1	Crankshaft Comp Part Number : `1331AK18900`
1	Crankshaft Comp Part Number : `13000K84900`
2	Ring Set Piston Std (RK) Part Number : `13011KYE900`
2	Ring Set Piston Std (TE) Part Number : `13011KYE900`
2	Ring Set Piston (0.25) Part Number : `13021KYE900`
2	Ring Set Piston (0.75) Part Number : `13041KYE900`
2	Ring Set Piston (1.00) Part Number : `13051KYE900`
3	Piston STD Part Number : `13101KRM930`
3	Piston (0.25) Part Number : `13102KRM305`
3	Piston (0.50) Part Number : `13103KRM305`
3	Piston (0.75) Part Number : `13104KRM305`
3	Piston (1.00) Part Number : `13105KRM305`
4	Pin Piston Part Number : `13111KSP910`
5	Collar R Crank Shaft Part Number : `13412KSP910`
5	Collar R Crank Shaft Part Number : `13412K84N00`
6	Gear Primary Drive (20T) Part Number : `23121KRM840`
7	Key Woodruff 4MM Part Number : `90741KFB000`
8	Key Woodruff 4MM Part Number : `90741KGH900`
9	Bearing Roller 30X58X17 Part Number : `91001KSP913`
10	Clip Piston Pin 14MM Part Number : `9460114000`
