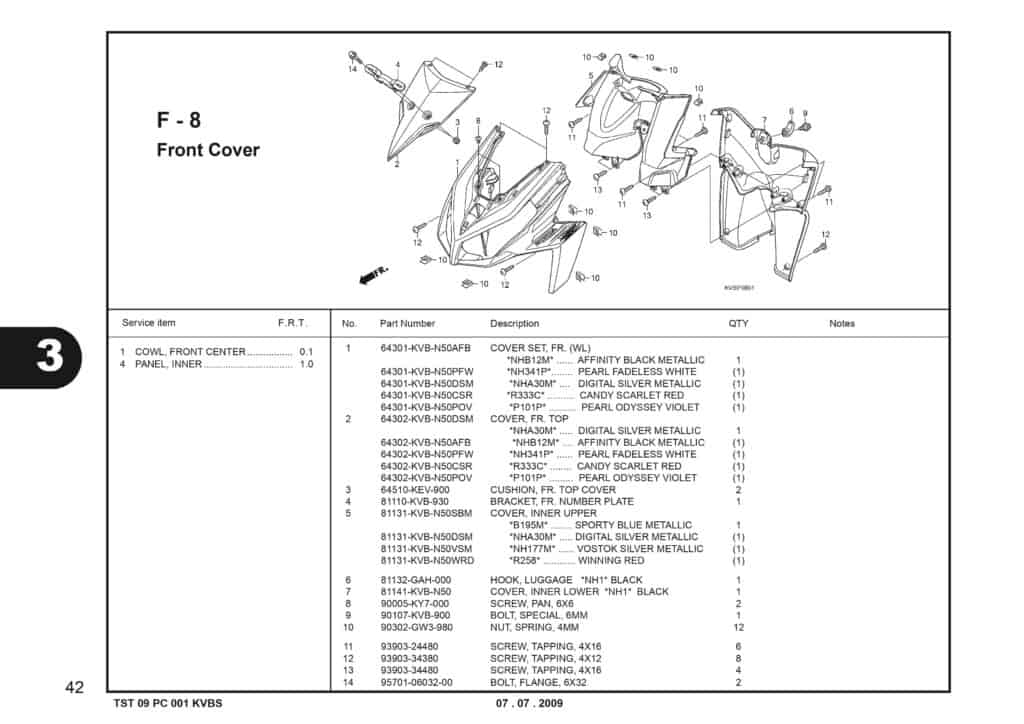

F-8 Front Cover – Katalog Suku Cadang Honda Vario Techno
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
COVER FR(AF BK MT) |
64301KVBN50AFB |
|
| 1 |
COVER FR(PL FD WH) |
64301KVBN50PFW |
-
|
| 1 |
COVER FR(DG SL MT) |
64301KVBN50DSM |
-
|
| 1 |
COVER FR(CN SC RD) |
64301KVBN50CSR |
-
|
| 1 |
COVER FR(PR OD VL) |
64301KVBN50POV |
-
|
| 2 |
COVER FR TOP(DG SL MT) |
64302KVBN50DSM |
-
|
| 2 |
COVER FR TOP(AF BK MT) |
64302KVBN50AFB |
-
|
| 2 |
COVER FR TOP(PL FD WH) |
64302KVBN50PFW |
-
|
| 2 |
COVER FR TOP(CN SC RD) |
64302KVBN50CSR |
-
|
| 2 |
COVER FR TOP(PR OD VL) |
64302KVBN50POV |
-
|
| 3 |
CUSHION FR TOP COVER |
64510KEV900 |
-
|
| 4 |
BRACKET FR NUMBER PLATE |
81110KVB930 |
|
| 5 |
COVER INR UP(SP BL MT) |
81131KVBN50SBM |
-
|
| 5 |
COVER INR UP(DG SL MT) |
81131KVBN50DSM |
-
|
| 5 |
COVER INR UP(VO SL MT) |
81131KVBN50VSM |
-
|
| 5 |
COVER INR UP(WN RD) |
81131KVBN50WRD |
-
|
| 6 |
Hook Luggage |
81132GAH000YV |
|
| 7 |
COVER ASS INR LWR |
8114AKVBN50 |
|
| 8 |
SCREW PAN 6X6 |
90005KY7000 |
|
| 9 |
BOLT SPECIAL 6MM |
90107KVB900 |
|
| 10 |
NUT SPRING 4MM |
90302GW3980 |
|
| 11 |
SCREW, TAPPING, 4X16 |
9390324480 |
|
| 12 |
SCREW TAPPING 4X12 |
9390334380 |
|
| 13 |
SCREW TAPPING 4X16 |
9390334480 |
|
| 14 |
BOLT FLANGE 6X32 |
957010603200 |
|
