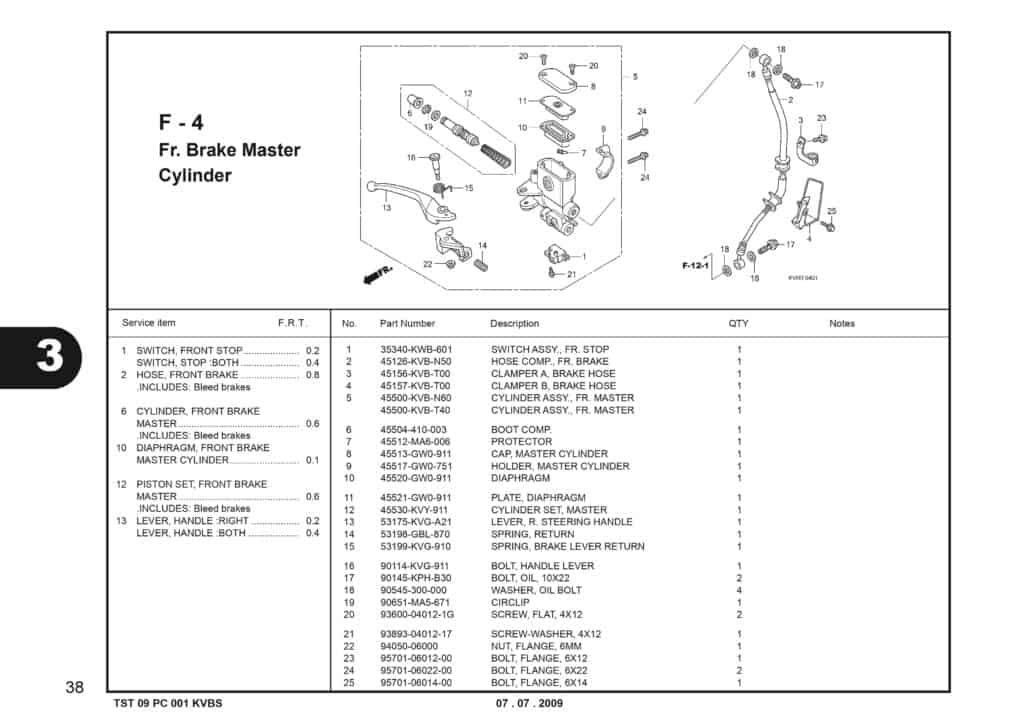

F-4 Front Brake Master Cylinder – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	SWITCH FR STOP ASSY Part Number : `35340KWB601`
2	HOSE COMP FR BRK Part Number : `45126KVBN51`
3	CLAMPER A BRAKE HOS Part Number : `45156KVBT00`
4	CLAMPER B BRAKE HOS Part Number : `45157KVBT00`
5	CYLINDER ASSY FR B Part Number : `45500KVB931`
5	M/C ASSY FR Part Number : `45500KVBT40`
6	BOOT COMP Part Number : `45504410003`
7	PROTECTOR Part Number : `45512MA6006`
8	CAP,MASTER CYLINDER Part Number : `45513GW0911`
9	HOLDER M/C Part Number : `45517GW0751`
10	DIAPHRAGM Part Number : `45520GW0911`
11	PLATE,DIAPHRAGM Part Number : `45521GW0911`
12	CYLINDER SET MASTER Part Number : `45530KVY911`
13	LEVER R STRG HDL Part Number : `53175KVGA21`
14	SPRING RETURN Part Number : `53198GBL870`
15	SPRING BRAKE LEVER RETURN Part Number : `53199KVG910`
16	BOLT HANDLE LEVER Part Number : `90114KVG911`
17	BOLT OIL, 10X22 (NISSIN) Part Number : `90145KPHB30`
18	WASHER OIL BOLT Part Number : `90545300000`
19	CIRCLIP Part Number : `90651MA5671`
20	SCREW FLAT, 4X12 Part Number : `93600040121G`
21	SCREW WASHER 4X12 Part Number : `938930401217`
22	NUT,FLANGE 6MM Part Number : `9405006000`
23	BOLT FLANGE 6X12 Part Number : `957010601200`
24	BOLT FLANGE 6X22 Part Number : `957010602200`
25	BOLT FLANGE 6X14 Part Number : `957010601400`
