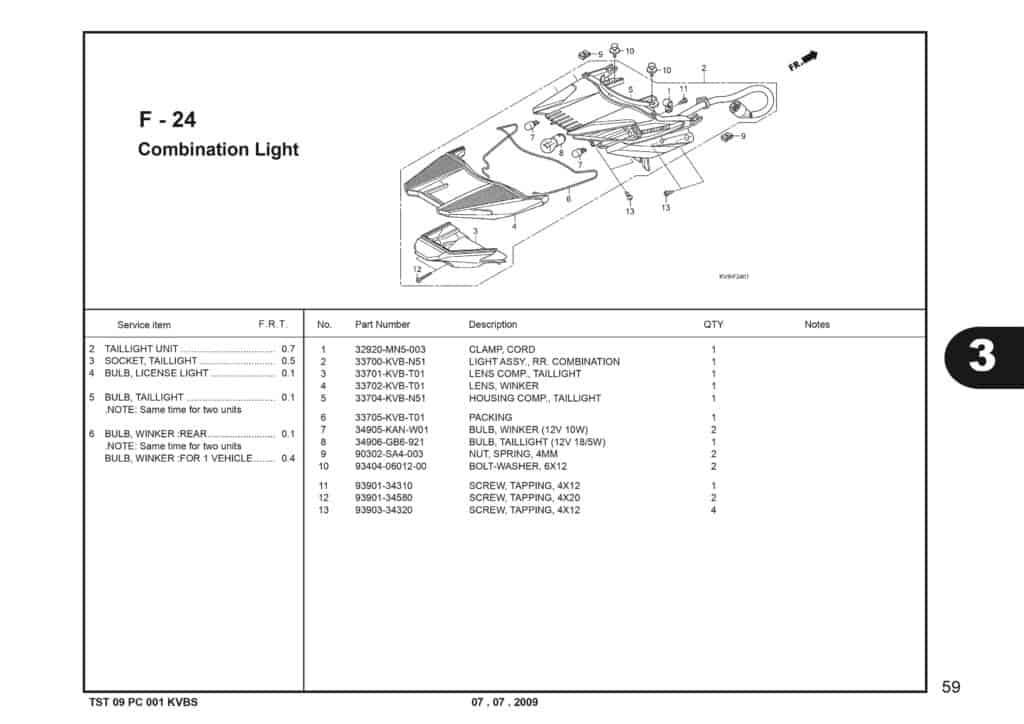

F-24 Combination Light – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	CLAMP CORD Part Number : `32920MN5003`
2	LIGHT ASSY RR COMB Part Number : `33700KVBN51`
3	LENS COMB TAILLIGHT Part Number : `33701KVBT01`
4	LENS WINKER RR Part Number : `33702KVBT01`
5	HOUSING COMP TAILLIGHT Part Number : `33704KVBN51`
6	PACKING Part Number : `33705KVBT01`
7	WB BULB (12V10W-YLT13) Part Number : `34905KANW01`
8	BULB TAILLIGHT Part Number : `34906GB6921`
9	NUT, SPRING, 4MM Part Number : `90302SA4003`
10	BOLT WASHER 6X12 Part Number : `934040601200`
11	SCREW TAPPING (4X12) Part Number : `9390134310`
12	SCREW TAPPING 4X20 Part Number : `9390134580`
13	SCREW TAPPING 4X12 Part Number : `9390334320`
