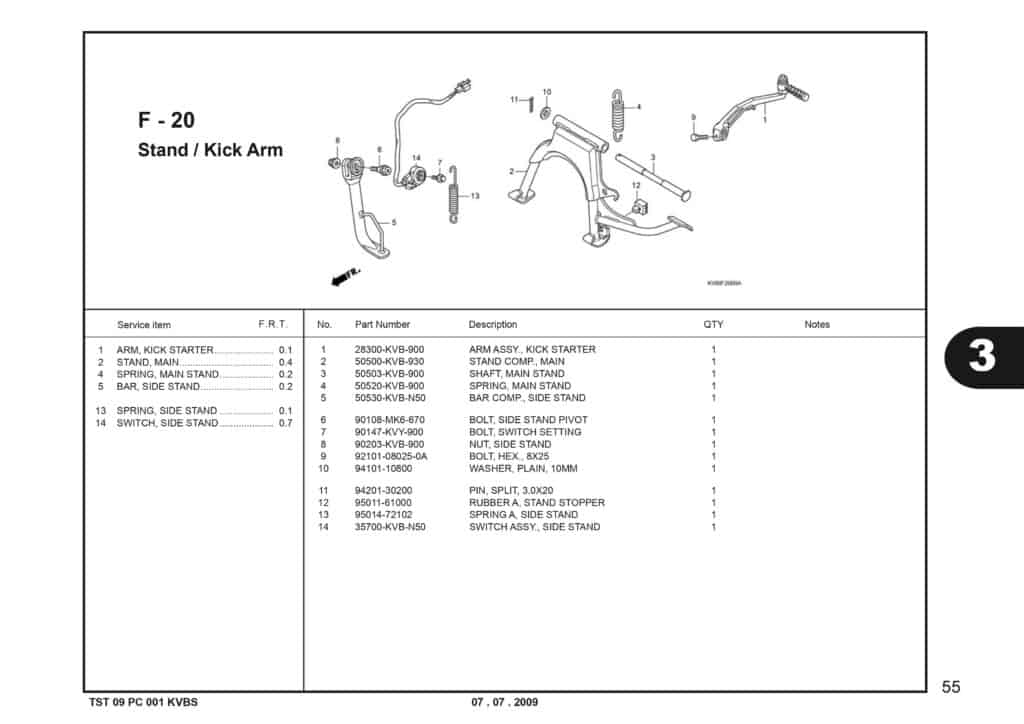

F-20 Stand/Kick Arm – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	ARM ASSY KICK STARTER Part Number : `28300KVB900`
1	ARM ASSY KICK STARTER Part Number : `28300KVY900`
2	STAND MAIN Part Number : `50500KVB930`
3	SHAFT MAIN STAND Part Number : `50503KVB900`
4	SPRING MAIN STAND Part Number : `50520KVB900`
5	BAR COMP SIDE STAND Part Number : `50530KVBN50`
6	BOLT SIDE STAND PIVOT Part Number : `90108MK6670`
7	BOLT SW SETTING Part Number : `90147KVY900`
8	NUT SIDE STAND Part Number : `90203KVB900`
9	BOLT,HEX 8X25 Part Number : `92101080250A`
10	WASHER PLAIN 10MM Part Number : `9410110800`
11	PIN,COTTER 3X20 Part Number : `9420130200`
12	STOPPER RUBBER A STAND Part Number : `9501161000`
13	SPRING A SIDE STAND Part Number : `9501472102`
14	SWITCH ASSY SIDE STAND Part Number : `35700KVBN51`
