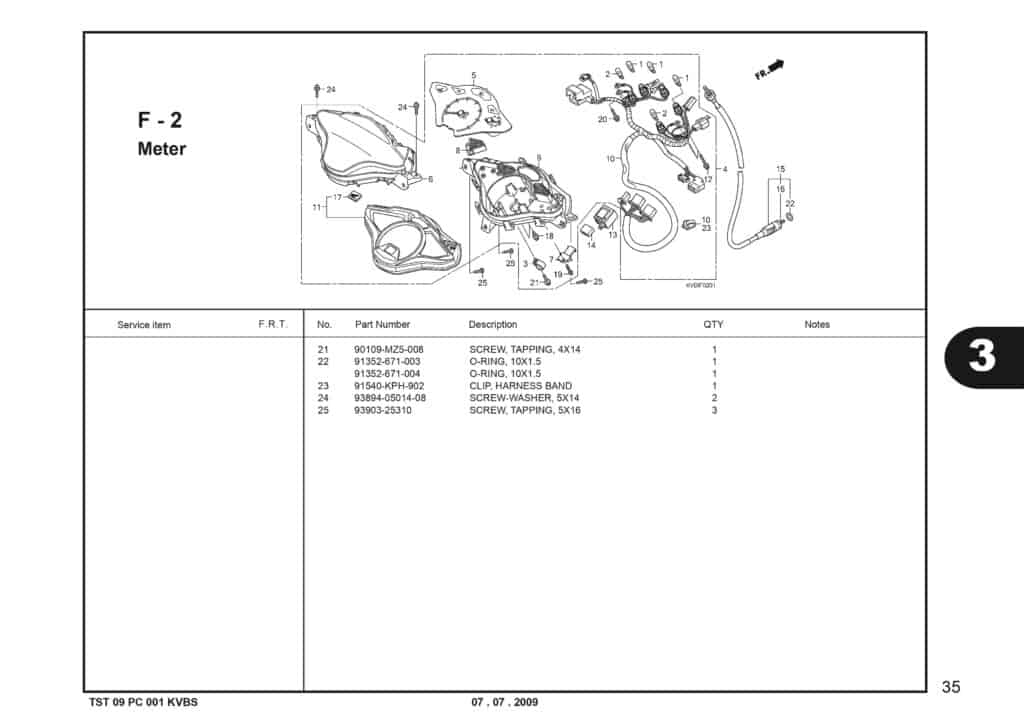

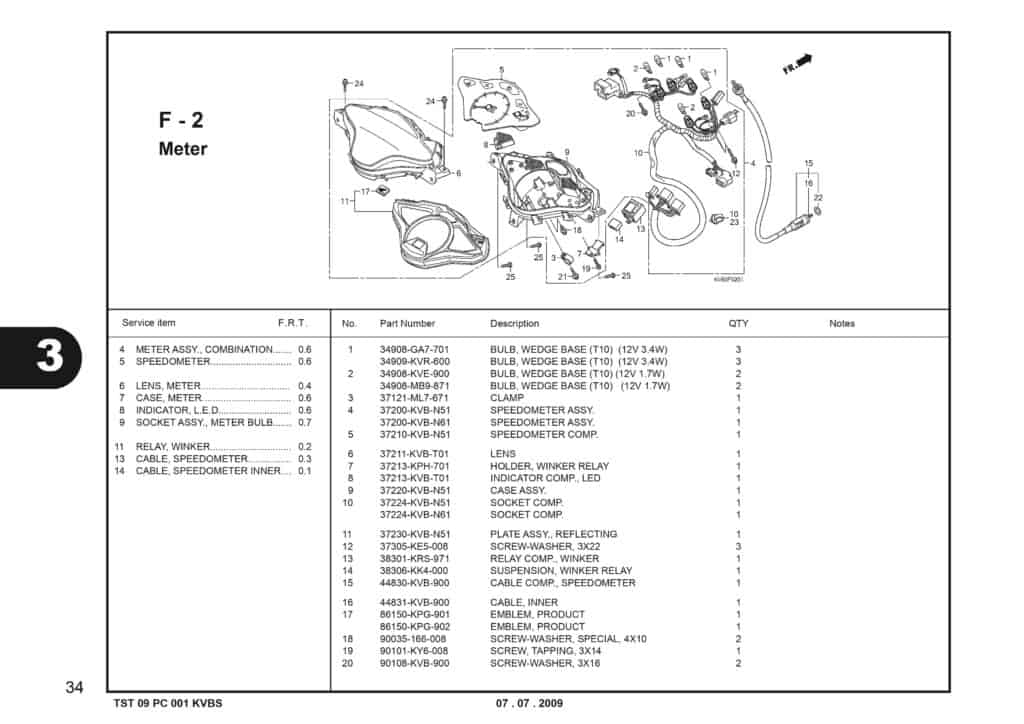

F-2 Meter – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	BULB W BASE Part Number : `34908GA7701`
1	BULB W BASE(T10 12V 3.4W) Part Number : `34909KVR600`
2	BULB W BASE (T10 12V1.7W) Part Number : `34908KVE900`
2	BULB W BASE Part Number : `34908MB9871`
3	CLAMP Part Number : `37121ML7671`
4	SPEEDOMETER ASSY Part Number : `37200KVBN51`
4	SPEEDOMETER ASSY Part Number : `37200KVBN61`
5	SPEEDOMETER COMP Part Number : `37210KVBN51`
6	LENS Part Number : `37211KVBT01`
7	HOLDER WINKER RELAY Part Number : `37213KPH701`
8	INDIKATOR Part Number : `37312KVBT01`
9	CASE ASSY Part Number : `37220KVBN51`
10	SOCKET COMP Part Number : `37224KVBN51`
10	SOCKET COMP Part Number : `37224KVBN61`
11	PLATE ASSY REFLECTING Part Number : `37230KVBN51`
12	SCREW WASHER (3X22) Part Number : `37305KE5008`
13	RELAY COMP WINKER Part Number : `38301KPH881`
14	SUSPENSION RELAY Part Number : `38306KK4000`
15	CABLE COMP SPEEDOMETER Part Number : `44830KVBT00`
17	EMBLEM, WING MARK Part Number : `86150KPG901`
17	EMBLEM,PRODUCT (UEHARA) Part Number : `86150KPG902`
18	SCREW WASHER (4X10) Part Number : `90035166008`
19	SCREW TAPPING (3X14) Part Number : `90101KY6008`
20	SCREW WASHER (3X16) Part Number : `90108KVB900`
21	SCRW.TAPP 4X14 Part Number : `90109MZ5008`
22	O-RING 9MM Part Number : `91352671003`
22	O-RING 9MM Part Number : `91352671004`
23	CLIP BAND HARN (U DIA 15) Part Number : `91540KPH902`
24	SCREW WASHER 5X14 Part Number : `938940501408`
25	SCREW TAPPING 5X16 Part Number : `9390325310`
