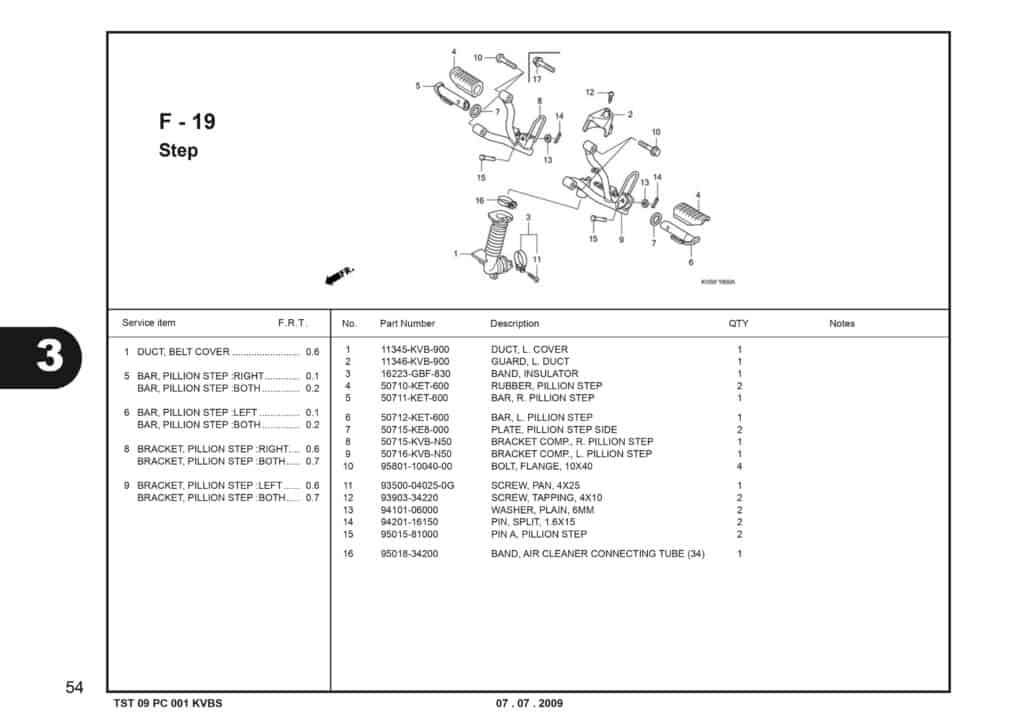

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | DUCT L COVER | 11345KVB900 |
|
| 2 | GUARD L DUCT | 11346KVB900 |
|
| 3 | BAND, AIR CLEANER CONNEC | 16223GBF830 |
|
| 4 | RUBBER,P.STEP | 50710KET600 | - |
| 5 | BAR R PILLION STEP | 50711KET601 | - |
| 6 | BAR L PILLION STEP | 50712KET601 | - |
| 7 | PLATE, PILLION STEP SIDE | 50715KE8000 |
|
| 8 | BRKT COMP R PILLION STEP | 50715KVBN50 |
|
| 9 | BRKT COMP L PILLION STEP | 50716KVBN50 |
|
| 10 | BOLT FLANGE 10X40 | 958011004000 |
|
| 11 | SCREW PAN 4X25 | 93500040250G |
|
| 12 | SCREW, TAPPING, 4X10 | 9390334220 |
|
| 13 | WASHER PLAIN 6MM | 9410106000 |
|
| 14 | PIN COTTER 16X15 | 9420116150 |
|
| 15 | PIN PILLION STEP | 9501581000 |
|
