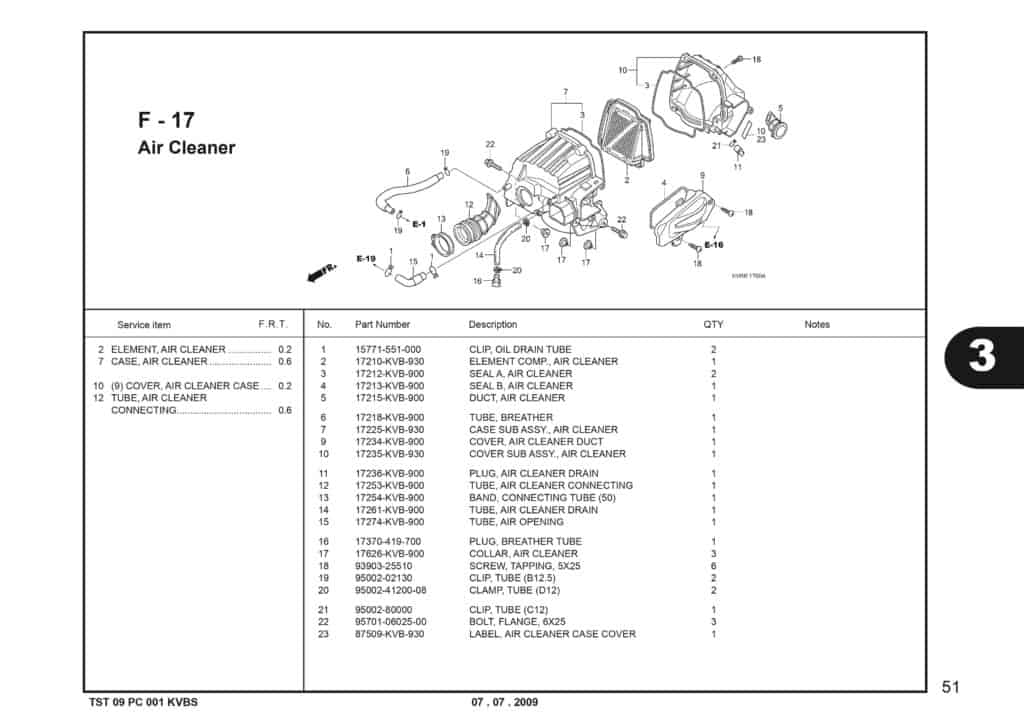

F-17 Air Cleaner – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	CLIP OIL DRAIN TUBE Part Number : `15771551000`
2	ELEMENT COMP A/C Part Number : `17210KVB930`
3	SEAL A A/C Part Number : `17212KVB900`
4	SEAL B A/C Part Number : `17213KVB900`
5	DUCT A/C Part Number : `17215KVB900`
6	TUBE BREATHER Part Number : `17218KVB900`
7	CASE SUB ASSY A/C Part Number : `17225KVY960`
9	COVER A/C DUCT Part Number : `17234KVB900`
10	COVER SUB ASSY A/C Part Number : `17235KVY900`
11	PLUG A/C DRAIN Part Number : `17236KVB900`
12	TUBE A/C CONNECTING Part Number : `17253KVB900`
13	BAND 50 CONN TUBE Part Number : `17254KVB900`
14	TUBE A/C DRAIN Part Number : `17261KVB900`
15	TUBE AIR OPENING Part Number : `17274KVB900`
16	PLUG BRTHR.TUBE Part Number : `17370419700`
17	COLLAR, FUEL TANK SETTING Part Number : `17626KA4700`
18	SCREW TAPPING 5X25 Part Number : `9390325510`
19	CLIP, TUBE(B12.5) Part Number : `9500202130`
20	CLAMP D12 TUBE Part Number : `950024120008`
21	CLIP, TUBE(C12) Part Number : `9500280000`
22	BOLT FLANGE 6X25 Part Number : `957010602500`
23	LABEL PROHIBIT FILTER CLEANING Part Number : `87509KVB930`
