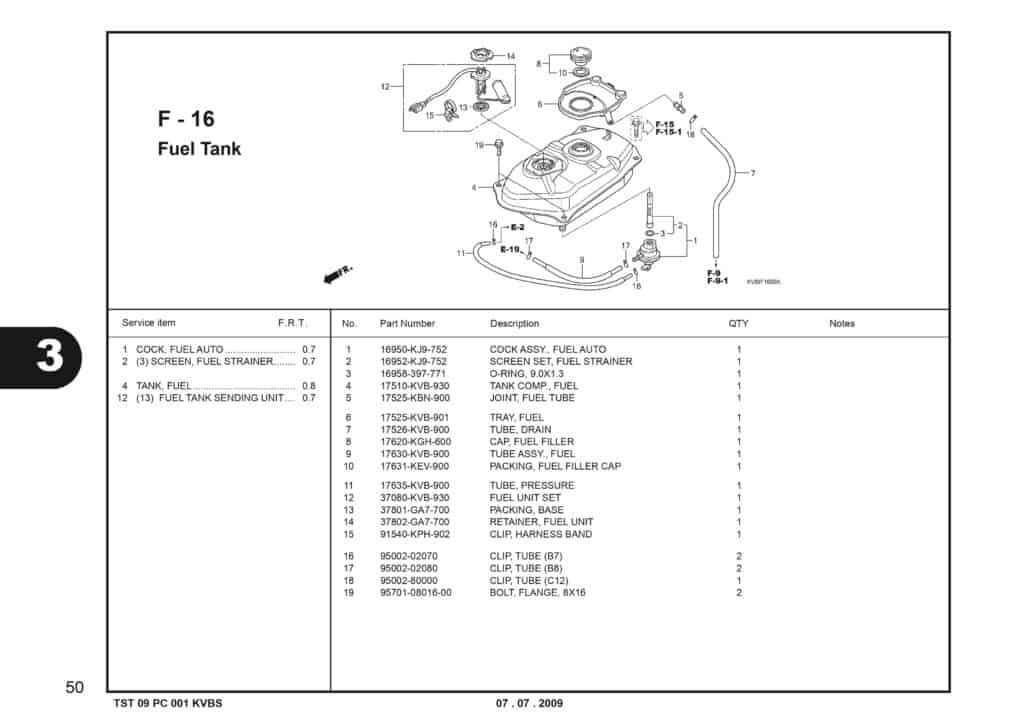

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | COCK AS,FL.AUTO | 16950KJ9752 |
|
| 2 | SCREEN SET, FUEL STRAINER | 16952KSPB00 |
|
| 3 | O-RING | 16958397771 |
|
| 4 | FUEL TANK | 17510KVB930 | - |
| 5 | JOINT,FUEL TUBE | 17525KBN900 |
|
| 6 | TRAY FUEL | 17525KVY900 | - |
| 7 | TUBE DRAIN | 17526KVB900 |
|
| 8 | CAP FUEL FILLER | 17620KGH600 |
|
| 9 | TUBE,FUEL | 17630KVY960 | - |
| 10 | PACKING FUEL FILLER CAP | 17631KEV900 |
|
| 11 | TUBE,PRESSURE | 17635KVB900 |
|
| 12 | FUEL UNIT | 37800KVB931 |
|
| 13 | PACKING BASE | 37801GA7700 |
|
| 14 | RETAINER FUEL | 37802GA7700 | - |
| 15 | CLIP BAND HARN (U DIA 15) | 91540KPH902 |
|
| 16 | CLIP B7 TUBE | 9500202070 |
|
| 16 | CLIP B7 TUBE | 9500202071 |
|
| 17 | CLIP B8,TUBE | 9500202080 |
|
| 18 | CLIP, TUBE(C12) | 9500280000 |
|
| 19 | BOLT, FLANGE 8X16 | 957010801600 |
|
