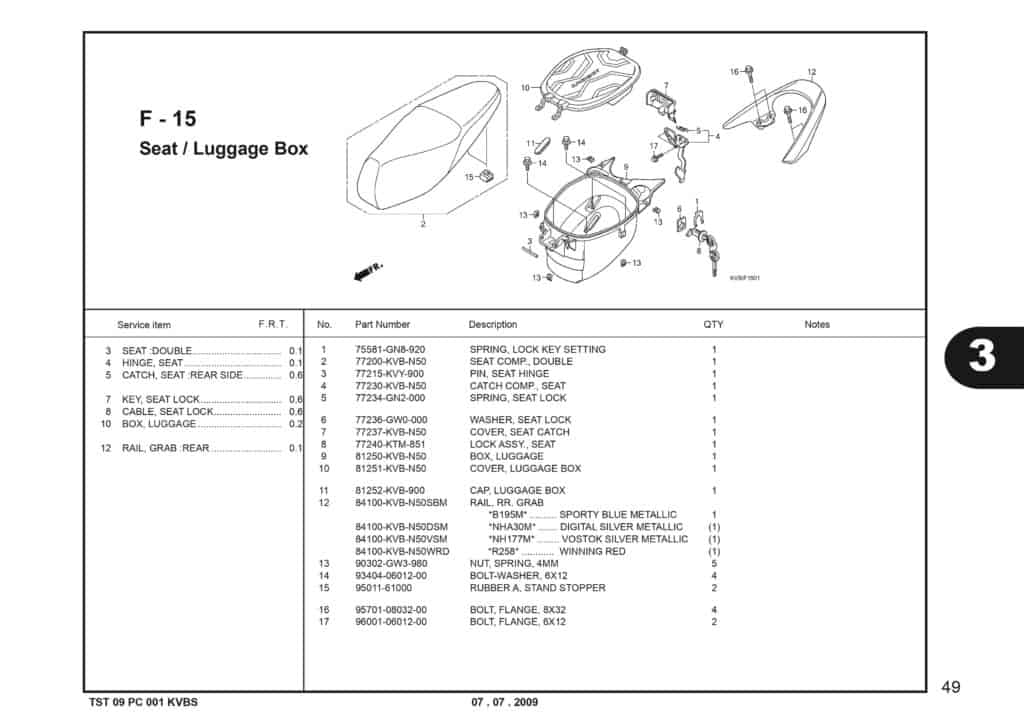

F-15 Seat/Luggage Box – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	SPRING LOCK KEY Part Number : `75581GN8920`
2	SEAT ASSY DOUBLE Part Number : `77200KVBN50`
3	PIN SEAT HINGE Part Number : `77215KVY900`
4	SEAT CATCH COMP Part Number : `77230KVBN50`
5	SPRING SEAT LOCK Part Number : `77234GN2000`
6	WASHER SEAT LOCK Part Number : `77236GW0000`
7	COVER SEAT CATCH Part Number : `77237KVBN50`
8	KEY SEAT LOCK Part Number : `77240KTM851`
9	BOX LUGGAGE Part Number : `81250KVB930`
10	COVER LUGGAGE BOX Part Number : `81251KVBN50`
11	CAP LUGGAGE BOX Part Number : `81252KVB900`
12	RAIL RR GRAB (SP BL MT) Part Number : `84100KVBN50SBM`
12	RAIL RR GRAB (DG SL MT) Part Number : `84100KVBN50DSM`
12	RAIL RR GRAB (VO SL MT) Part Number : `84100KVBN50VSM`
12	RAIL RR GRAB (WN RD) Part Number : `84100KVBN50WRD`
13	NUT SPRING 4MM Part Number : `90302GW3980`
14	BOLT WASHER 6X12 Part Number : `934040601200`
15	STOPPER RUBBER A STAND Part Number : `9501161000`
16	BOLT FLANGE 8X32 Part Number : `957010803200`
17	BOLT FLANGE SH 6X12 Part Number : `960010601200`
