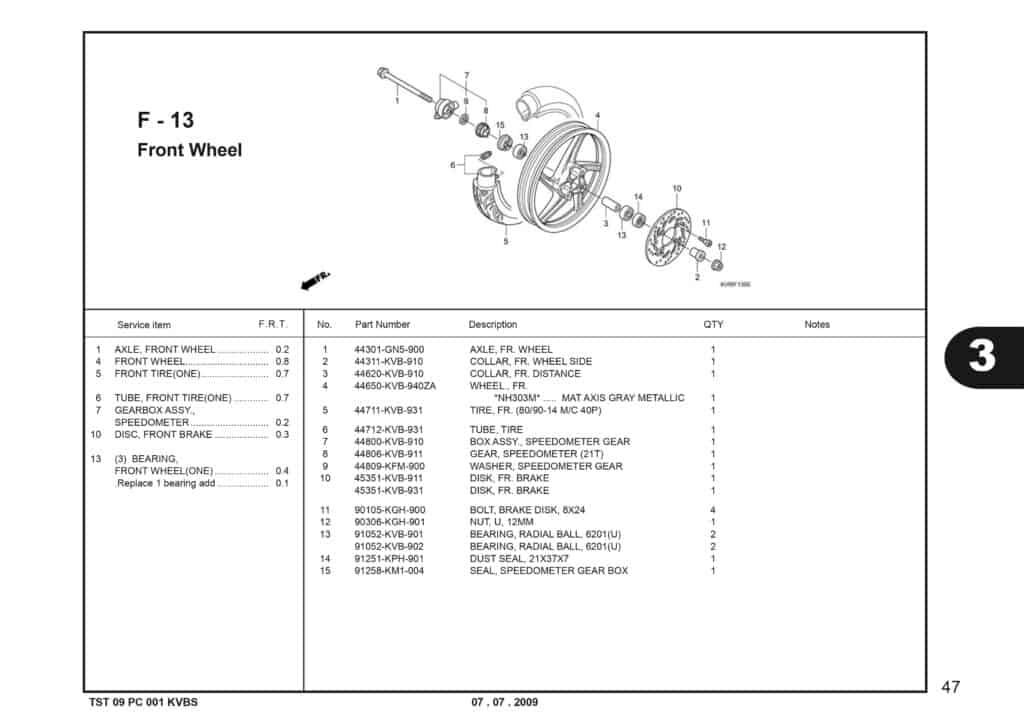

F-13 Front Wheel (Cast) – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	AXLE FR WHEEL Part Number : `44301GN5900`
2	COLLAR FR WHEEL SIDE Part Number : `44311KVB910`
3	COLLAR FR DISTANCE Part Number : `44620KVB910`
4	CAST, WHEEL FR (MA AX GY) Part Number : `44601KVG911`
5	TIRE FR Part Number : `44711KVB931`
5	Tire Fr (80/90-14 Ft235) Part Number : `44711K59A12`
6	TUBE, TIRE Part Number : `44712KZT901`
7	BOX SPEEDOMETER GEAR Part Number : `44800KVB910`
8	Box Speedometer Gear Part Number : `44800KVB910`
9	WASHER,SPDMT GEAR Part Number : `44809KFM900`
10	DISK FR BRAKE Part Number : `45351KVBS02`
10	DISK FR BRAKE Part Number : `45351K93N01`
10	DISK FR BRAKE Part Number : `45351KVB931`
10	DISK FR BRAKE Part Number : `45351K93N01`
11	BOLT BRK DISK 8X24 Part Number : `90105KGH900`
12	NUT,U,12MM Part Number : `90306KGH901`
13	BEARING,RADIAL BALL 6201 Part Number : `HB6201RS`
13	BRG,BALL RADIAL 6201 Part Number : `HB6201RS`
14	DUST SEAL 21 X 37 X 7 Part Number : `91251KPH901`
15	SEAL SPEEDOMETER GEAR BOX Part Number : `91258KM1004`
