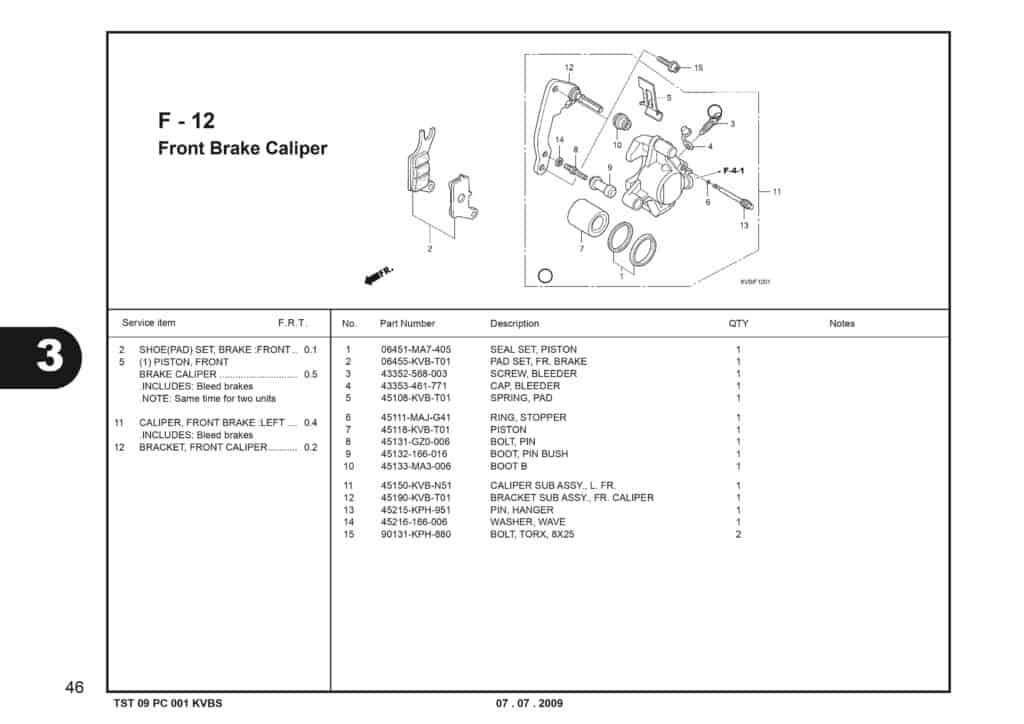

F-12 Front Brake Caliper – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	SEAL SET PISTON Part Number : `06451MA7405`
2	PAD SET FR Part Number : `06455KVBT01`
3	SCREW,BLEEDER Part Number : `43352568003`
4	CAP,BLEEDER Part Number : `43353461771`
4	CAP,BLEEDER Part Number : `43353461772`
5	SPRING PAD Part Number : `45108KVBT01`
6	O-RING,2.5X1.5 Part Number : `45111MAJG41`
7	PISTON Part Number : `45118KVBT01`
8	PIN,BOLT Part Number : `45131GZ0006`
9	BUSH PIN Part Number : `45132166016`
9	BUSH PIN Part Number : `45132166017`
10	BOOT B,PIN Part Number : `45133MA3006`
10	BOOT B,PIN Part Number : `45133MA3007`
11	CALIPER L FR ASSY Part Number : `45100KVBN51`
11	CALIPER ASSY L FR Part Number : `45100KVBT01`
11	CALIPER ASSY L FR Part Number : `45150KZLA01`
12	BRACKET FR CLPR SUB ASSY Part Number : `45190KVBT01`
12	BRACKET FR CLPR SUB ASSY Part Number : `45190KZLA01`
13	PIN HANGER Part Number : `45215KPH951`
14	WASHER,WAVE Part Number : `45216166006`
15	BOLT TORX 8X25 Part Number : `90131KPH880`
