F-10 Body Cover – Katalog Suku Cadang Honda Vario Techno

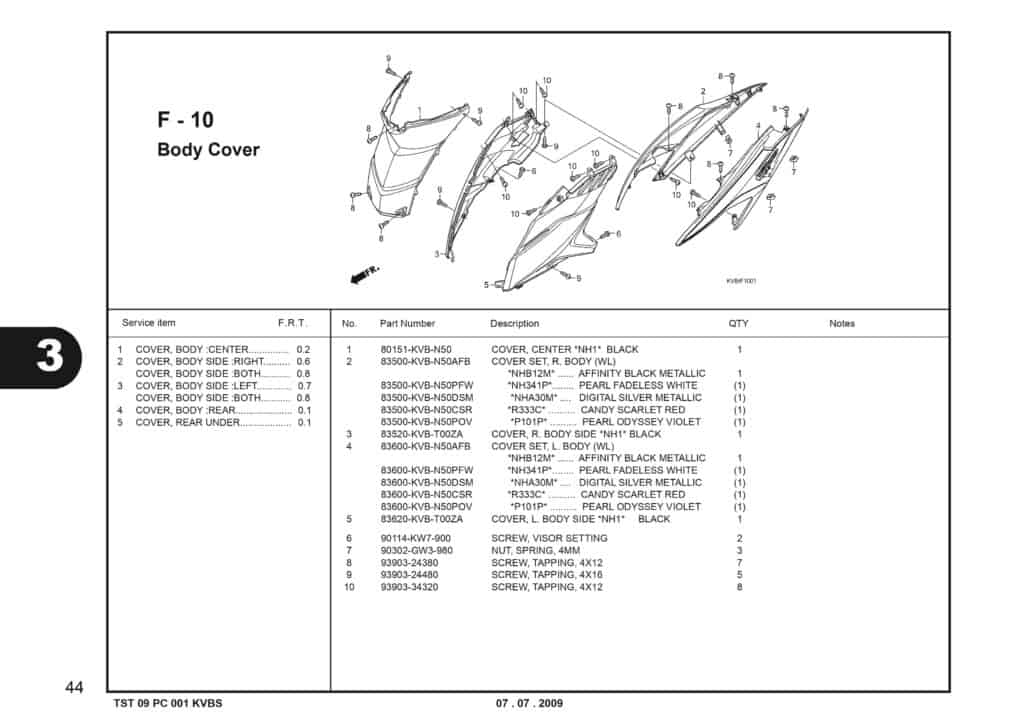

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 COVER CENTER 80151KVBN50 COVER CENTER
2 COVER R BODY(AF BK MT) 83500KVBN50AFB COVER R BODY(AF BK MT)
2 COVER R BODY(PL FD WH) 83500KVBN50PFW -
2 COVER R BODY(DG SL MT) 83500KVBN50DSM -
2 COVER R BODY(CN SC RD) 83500KVBN50CSR -
2 COVER R BODY(PR OD VL) 83500KVBN50POV -
3 COVER R BODY SD 83520KVBN50 COVER R BODY SD
4 COVER L BODY(AF BK MT) 83600KVBN50AFB COVER L BODY(AF BK MT)
4 COVER L BODY(PL FD WH) 83600KVBN50PFW -
4 COVER L BODY(DG SL MT) 83600KVBN50DSM -
4 COVER L BODY(CN SC RD) 83600KVBN50CSR -
4 COVER L BODY(PR OD VL) 83600KVBN50POV -
5 COVER L BODY SD 83620KVBN50 -
6 SCREW VISOR SETTING 90114KW7900 SCREW VISOR SETTING
7 NUT SPRING 4MM 90302GW3980 NUT SPRING 4MM
8 SCREW TAPPING 4X12 9390324380 SCREW TAPPING 4X12
9 SCREW, TAPPING, 4X16 9390324480 SCREW, TAPPING, 4X16
10 SCREW TAPPING 4X12 9390334320 SCREW TAPPING 4X12
