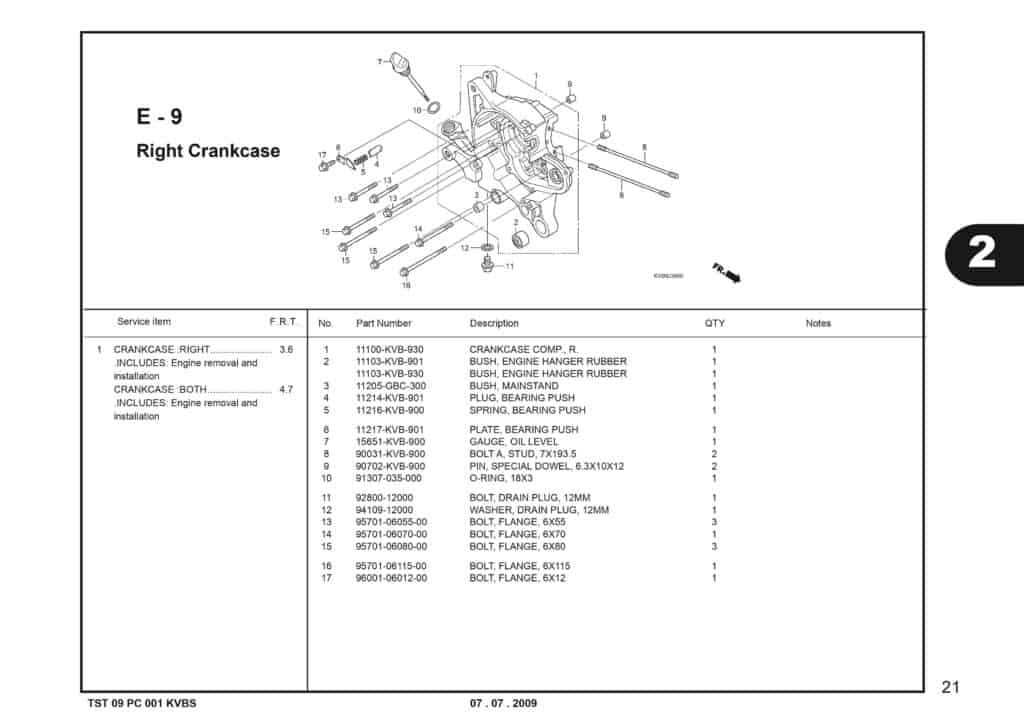

E-9 Right CrankCase – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	CRANK CASE COMP, RIGHT Part Number : `1110BKZR600`
2	RUB.BUSH,ENG.HANGER Part Number : `11103KVB930`
3	BUSH M STAND Part Number : `11205GBC300`
4	PLUG BRG PUSH Part Number : `11214KVB901`
5	SPRING BEARING PUSH Part Number : `11216KVB900`
6	PLATE BEARING PUSH Part Number : `11217KVB901`
7	GAUGE OIL LEVEL Part Number : `15651KVB900`
8	BOLT A STUD 7X193.5 Part Number : `90031KVB900`
9	PIN DOWEL SPL 6.3X10X12 Part Number : `90702KVB900`
10	O-RING, 18X3 Part Number : `91307035000`
11	DRAINCOCK Part Number : `9280012000`
12	WASHER, DRAIN PLUG, 12MM Part Number : `9410912000`
13	BOLT FLANGE 6X55 Part Number : `957010605500`
14	BOLT FLANGE 6X70 Part Number : `957010607000`
15	BOLT FLANGE 6X80 Part Number : `957010608000`
16	BOLT FLANGE 6X115 Part Number : `957010611500`
17	BOLT FLANGE SH 6X12 Part Number : `960010601200`
