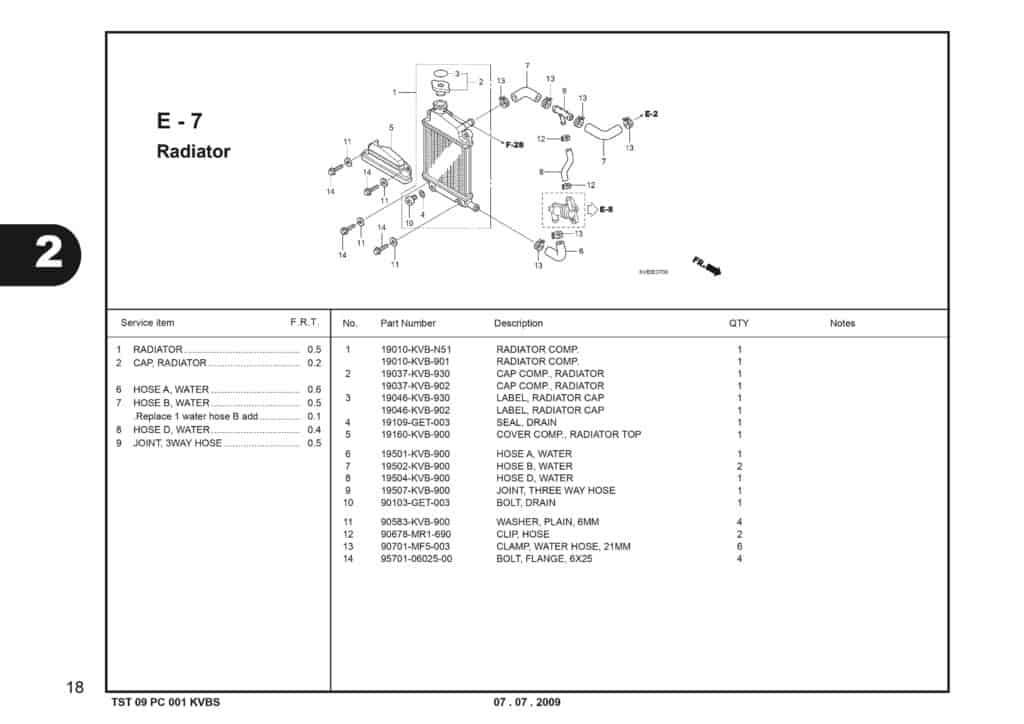

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | RADIATOR COMP | 19010KVBN51 |
|
| 2 | CAP COMP RAD | 19037KVB930 |
|
| 2 | CAP COMP.RAD | 19037KVB902 |
|
| 3 | LABEL RAD CAP | 19046KVB930 |
|
| 3 | LABEL,RAD CAP | 19046KVB902 |
|
| 4 | SEAL RING,DRAIN | 19109GET003 |
|
| 5 | COVER COMP RADIATOR TOP | 19160KVB900 |
|
| 6 | HOSE A WATER | 19501KVB900 |
|
| 7 | HOSE B WATER | 19502KVB900 |
|
| 8 | HOSE D WATER | 19504KVB900 |
|
| 9 | JOINT THREE WAY HOUSE | 19507KVB900 |
|
| 10 | BOLT DRAIN SEAL RING | 90103GET003 |
|
| 11 | WASHER PLAIN 6MM | 90583KVB900 |
|
| 12 | CLIP A1 HOSE | 90678MR1690 |
|
| 13 | CLAMP WATER HOSE 21 MM | 90701MF5003 |
|
| 14 | BOLT FLANGE 6X25 | 957010602500 |
|
