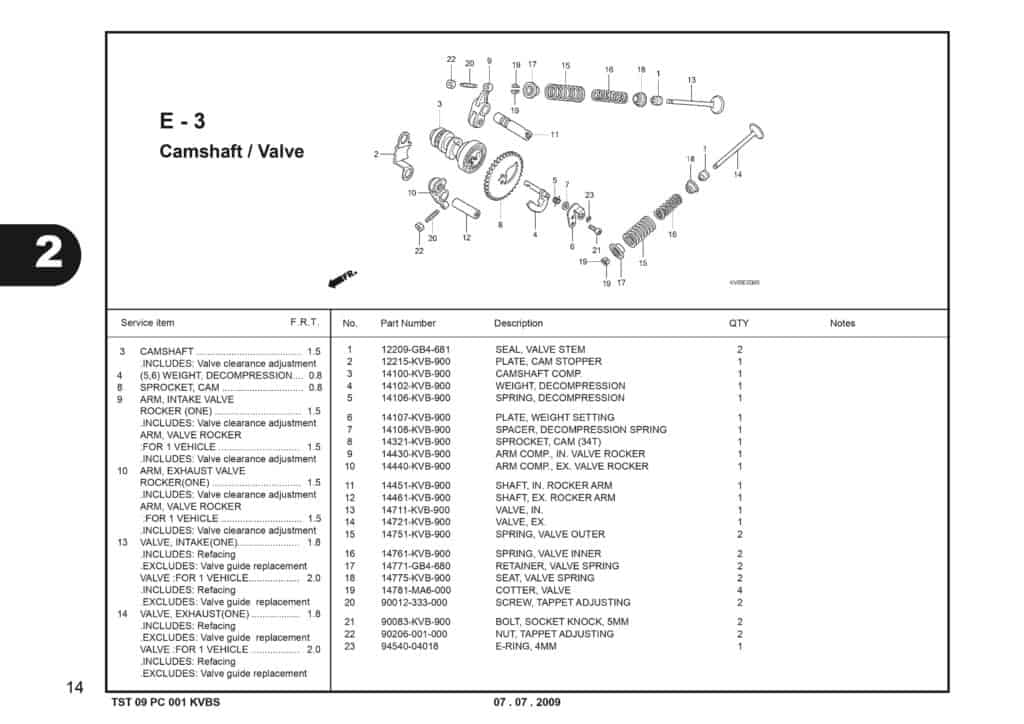

E-3 Camshaft/Valve – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	SEAL,VALVE STEM Part Number : `12209GB4681`
1	SEAL,VALVE STEM Part Number : `12209GB4682`
2	PLATE CAM STOPPER Part Number : `12215KVB900`
3	CAMSHAFT COMP. Part Number : `14100KVB900`
4	WEIGHT,DECOMP Part Number : `14102KVB900`
5	SPRING DECOMP Part Number : `14106KVB900`
6	PLATE WEIGHT SET Part Number : `14107KVB900`
7	SPACER DECOMP SPRING Part Number : `14108KVB900`
8	SPROCKET CAM Part Number : `14321KVB900`
9	ARM ASSY IN VALVE ROCKER Part Number : `14430KVBS50`
10	ARM COMP,EX VALVE Part Number : `14440KVBS50`
11	SHAFT IN ROCKER ARM Part Number : `14451KVB900`
12	SHAFT EX ROCKER ARM Part Number : `14461KVB900`
13	VALVE,INLET Part Number : `14711KVB900`
14	VALVE,EXHAUST Part Number : `14721KVB900`
15	SPRING, VALVE Part Number : `14751KZR601`
17	RETAINER Part Number : `14771GB4680`
18	SEAT,VALVE SPG Part Number : `14775KVB900`
19	COTTER,VALVE Part Number : `14781MA6000`
20	SCREW,TAPPET ADJ Part Number : `90012333000`
21	BOLT SOCKET KNOCK 5MM Part Number : `90083KVB900`
22	NUT,TAPPET ADJUST Part Number : `90206001000`
23	E-RING 4MM Part Number : `9454004018`
