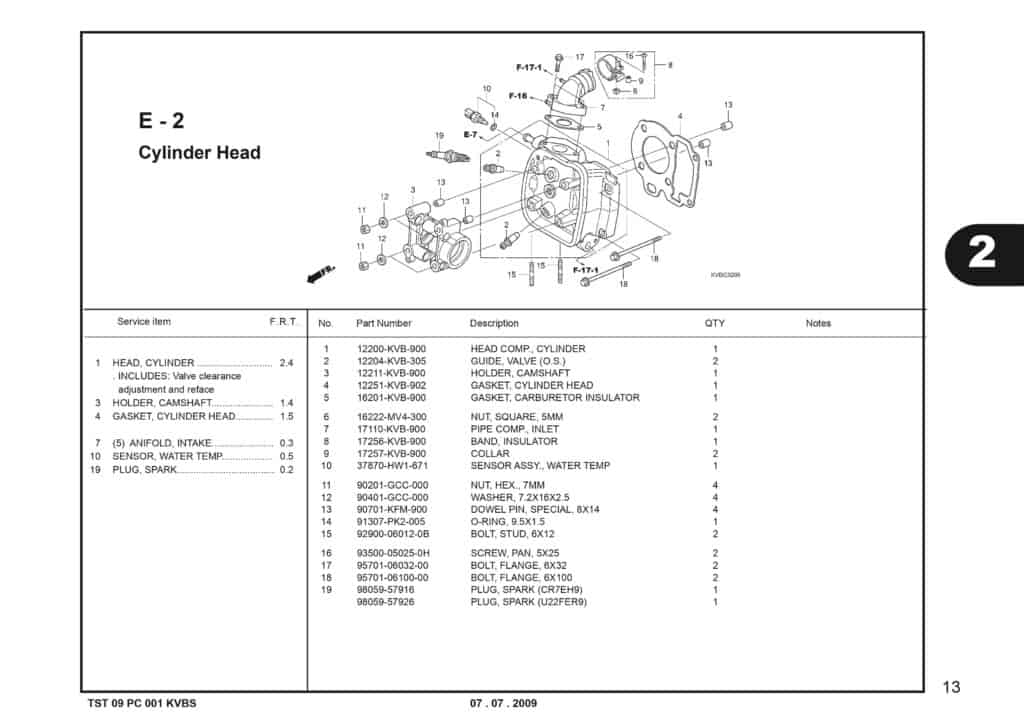

E-2 Cylinder Head – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	HEAD CYLINDER ASSY Part Number : `1220AKVB930`
2	GUIDE VALVE Part Number : `12204KVB305`
3	HOLDER CAM SHAFT Part Number : `12211KVB900`
4	GASKET CYLINDER HEAD Part Number : `12251KVB902`
5	GASKET CARB INSULATOR Part Number : `16201KVB900`
6	NUT,SQUARE 5MM Part Number : `16222MV4300`
7	PIPE COMP,INLET Part Number : `17110KVB900`
8	BAND INSULATOR Part Number : `17256KVB900`
9	COLLAR Part Number : `17257KVB900`
10	SENSOR ASSY TW Part Number : `37870HW1671`
11	NUTHEX 7MM Part Number : `90201GCC000`
12	WASHER 7.2X16X2.5 Part Number : `90401GCC000`
13	DOWEL PIN, SPECIAL, 8X14 Part Number : `90701KFM900`
14	O-RING 9.5X1.5 Part Number : `91307PK2005`
15	BOLT STUD 6X12 Part Number : `92900060120B`
16	SCREW PAN 5X25 Part Number : `93500050250H`
17	BOLT FLANGE 6X32 Part Number : `957010603200`
18	BOLT FLANGE 6X100 Part Number : `957010610000`
19	SPARK PLUG CR7EH9 (NGK) Part Number : `9805957916`
