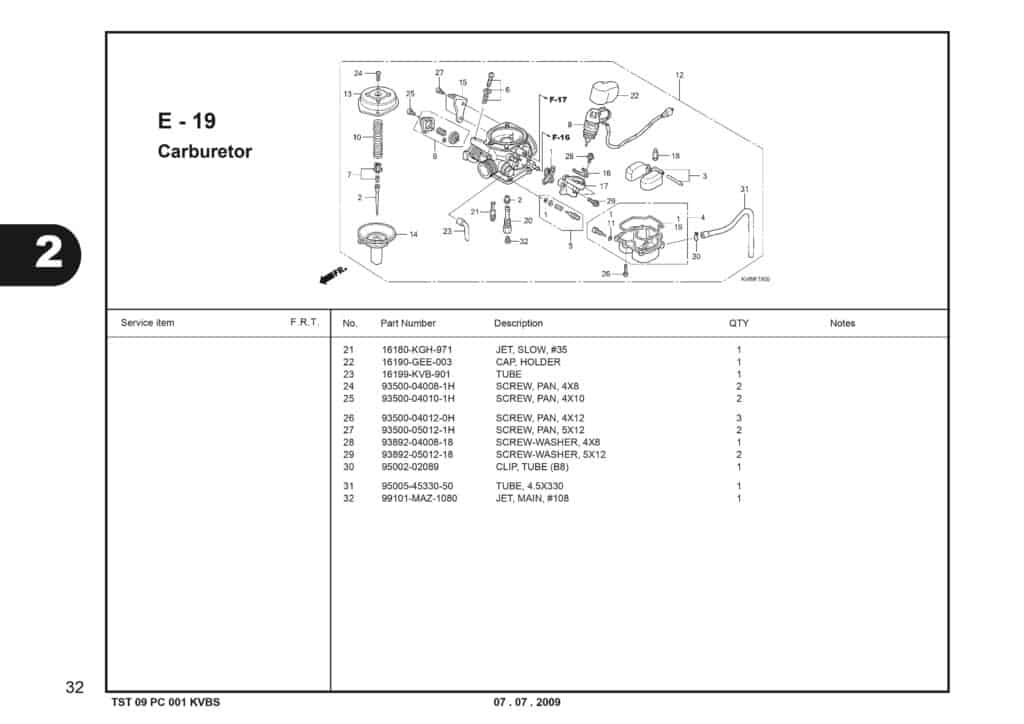

E-19 Carburator – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	GASKET SET Part Number : `16010KGF911`
2	NEEDLE SET JET Part Number : `16012KVB931`
3	FLOAT SET Part Number : `16013KRP981`
4	CHAMBER SET FLOAT Part Number : `16015KVY901`
5	SCREW SET A Part Number : `16016KRP981`
6	SCREW SET B Part Number : `16028KVB901`
7	PLATE SET VALVE Part Number : `16037KCW000`
8	BY STARTER ASSY AUTO Part Number : `16046KVBN51`
10	SPRING COMPRESSION COIL Part Number : `16050KVB901`
11	O-RING,1.3X4.3 Part Number : `16075GHB640`
12	CARBURETOR ASSY Part Number : `16100KVBN53`
13	TOP Part Number : `16107GCC000`
14	PISTON COMP VACUUM Part Number : `16111KVB903`
15	STAY WIRE Part Number : `16119KVB901`
16	PLATE SETTING Part Number : `16131ZW9801`
17	BODY COMP BY STATER Part Number : `16140GFC901`
18	VALVE COMP.,FLOAT Part Number : `16155KJ9751`
19	GASKET,FLOATCHAMBER Part Number : `16163KGF911`
20	HOLDER, NEEDLE JET Part Number : `16165KVB901`
21	JET, SLOW 35 Part Number : `16180KGH971`
22	CAP, HOLDER Part Number : `16190GEE003`
23	TUBE Part Number : `16199KVB901`
24	SCREW PAN 4X8 Part Number : `93500040081H`
25	SCREW PAN 4X10 Part Number : `93500040101H`
26	SCREW PAN 4X12 Part Number : `93500040120H`
27	SCREW PAN 5X12 Part Number : `93500050121H`
28	SCREW WASHER 4X8 Part Number : `938920400818`
29	SCREW WASHER 5X12 Part Number : `938920501218`
30	CLIP B8,TUBE Part Number : `9500202089`
31	TUBE 4.5X330 Part Number : `950054533020`
32	JET MAIN 108 Part Number : `99101ZH71080`
