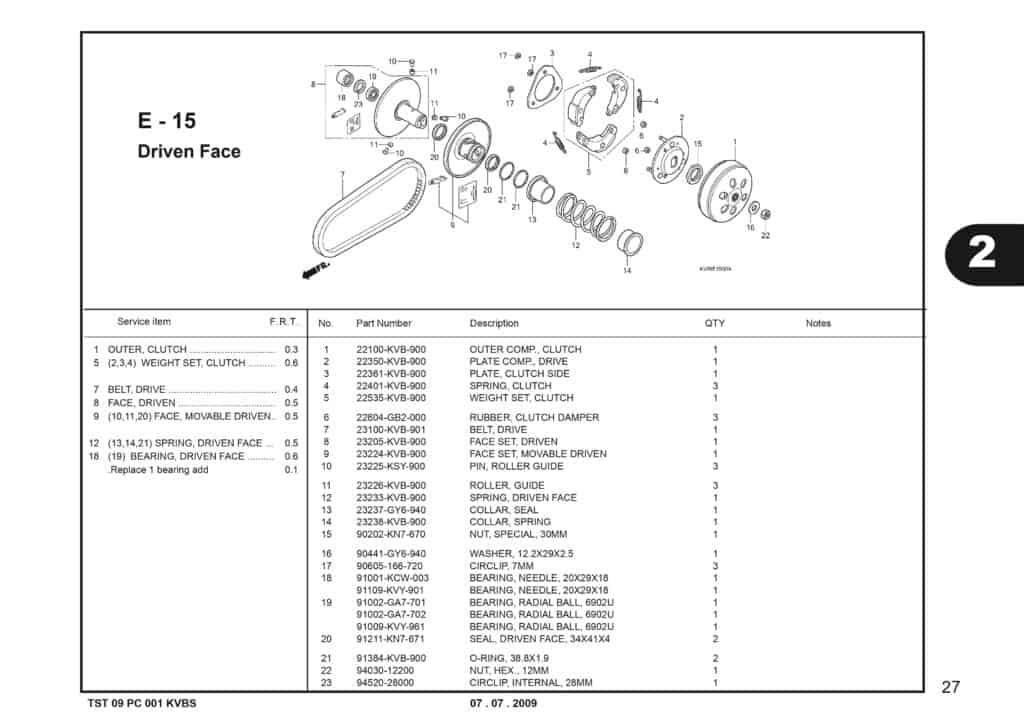

E-15 Drive Face – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	OUTER COMP CLUTCH Part Number : `22100KVB900`
1	OUTER COMP CLUTCH Part Number : `22100KWN900`
2	PLATE COMP DRIVE Part Number : `22350KVB900`
3	PLATE CLUTCH SIDE Part Number : `22361KVB900`
4	SPRING CLUTCH Part Number : `22401KVB900`
5	WEIGHT SET CLUTCH Part Number : `22535KVB900`
5	WEIGHT SET CLUTCH Part Number : `22535KWN901`
6	RUBBER CLUTCH DAMPER Part Number : `22804GB2000`
6	RUBBER CLUTCH DAMPER Part Number : `22804GB2880`
7	BELT DRIVE Part Number : `23100KVB901`
8	DRIVEN FACE ASSY Part Number : `23200KVB900`
9	FACE SET, MOVABLE DRIVEN Part Number : `23224KZR600`
10	PIN ROLLER GUIDE Part Number : `23225KSY900`
11	ROLLER GUIDE Part Number : `23226KVB900`
12	SPRING DRIVEN FACE Part Number : `23233KVB900`
13	COLLAR SEAL Part Number : `23237GY6940`
14	COLLAR SPRING Part Number : `23238KVB900`
15	NUT SPECIAL 30MM Part Number : `90202KN7670`
16	WASHER 12.2X29X2.5 Part Number : `90441GY6940`
17	CIRCLIP 7MM Part Number : `90605166720`
18	BEARING, NEEDLE, 20X29X18 Part Number : `91001KCW003`
18	BRG NEEDLE 20X29X18 Part Number : `91109KVY901`
19	BEARING RAD BALL 6902U Part Number : `91002GA7701`
19	BRG,BALL RADIAL 6902U Part Number : `91002GA7702`
19	BRG BALL RADIAL 6902U Part Number : `91009KVY961`
20	SEAL DRIVEN FACE 34X41X4 Part Number : `91211KN7671`
21	O-RING 38.8X1.9 Part Number : `91384KVB900`
22	NUT HEX 12MM Part Number : `9403012200`
23	CIRCLIP INTERNAL 28MM Part Number : `9452028000`
