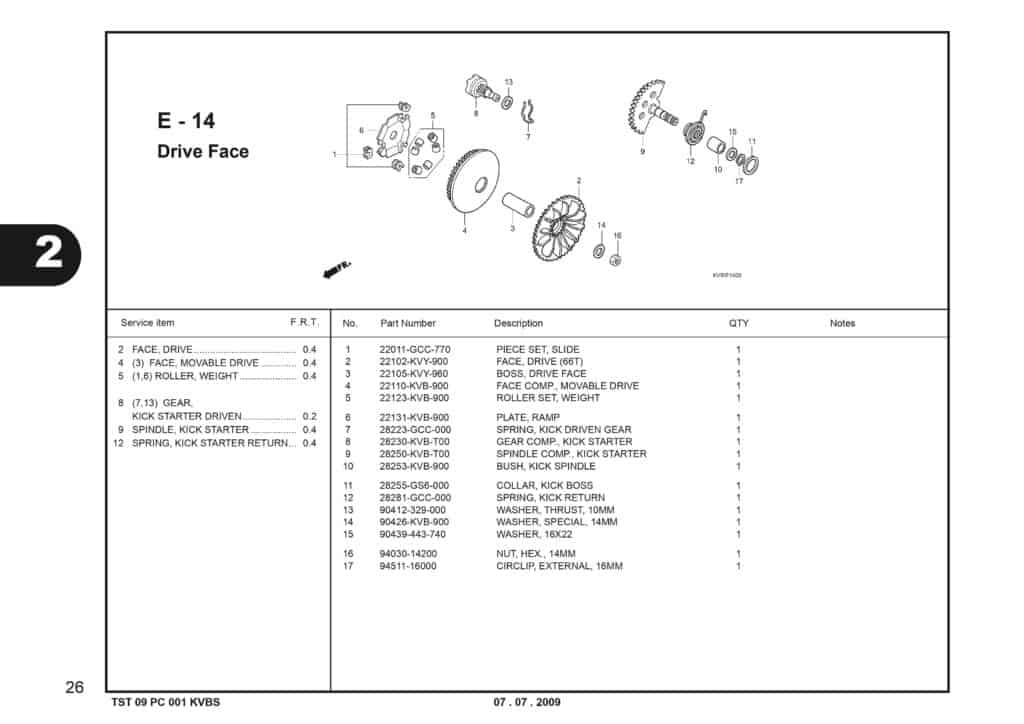

E-14 Drive Face – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	PIECE SLIDE Part Number : `22011GCC770`
1	PIECE SLIDE Part Number : `22132GCC771`
2	FACE DRIVE Part Number : `22102KVY900`
3	BOSS DRIVE FACE Part Number : `22105KVY960`
4	FACE COMP MOVEABLE DRIVE Part Number : `22110KVB900`
4	FACE COMP MOVEABLE DRIVE Part Number : `22110GFM960`
5	ROLLER WEIGHT SET Part Number : `2212AKVB900`
5	ROLLER WEIGHT SET Part Number : `2212AK44V00`
6	PLATE RAMP Part Number : `22131KVB900`
7	SPRING KICK DRIVEN GEAR Part Number : `28223GCC000`
8	GEAR COMP KICK SPINDLE Part Number : `28230KVB902`
9	SPINDLE COMP KICK STARTER Part Number : `28250KVB902`
10	BUSH, KICK SPINDLE Part Number : `28253KVB900`
11	COLLAR KICK BOSS Part Number : `28255GS6000`
12	SPRING KICK RETURN Part Number : `28281GCC000`
13	WASHER THRUST 10MM Part Number : `90412329000`
14	WASHER SPECIAL 14MM Part Number : `90426KVB900`
15	WASHER 16X22 Part Number : `90439443740`
16	NUT HEX 14MM Part Number : `9403014200`
17	CIRCLIP EXT 16MM Part Number : `9451116000`
