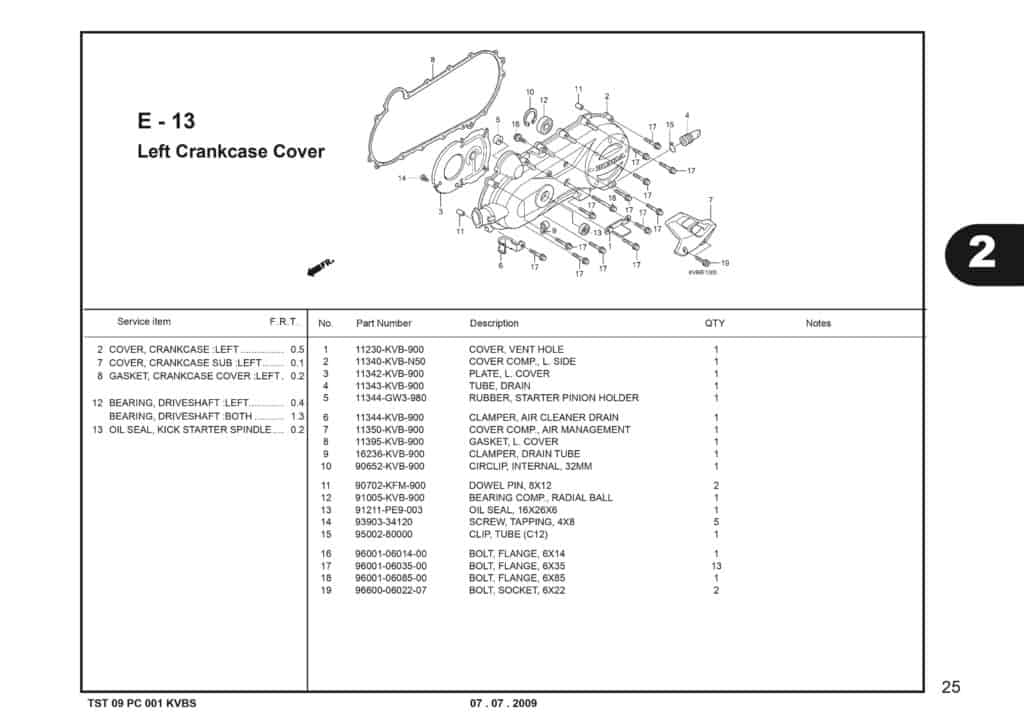

E-13 Left CrankCase Cover – Katalog Suku Cadang Honda Vario Techno

#	Informasi Produk	Visual
1	COVER VENT HOLE Part Number : `11230KVB900`
2	COVER COMP L SIDE Part Number : `11340KVBN50`
3	PLATE L COVER Part Number : `11342KVB900`
4	TUBE A/C DRAIN Part Number : `17261KVB900`
5	RUBBER STARTER PINION Part Number : `11344GW3980`
6	CLAMPER TUBE A/C DRAIN Part Number : `11344KVB900`
7	COVER COMP AIR MANAGE Part Number : `11350KVB900`
8	GASKET L COVER Part Number : `11395KVB900`
9	CLAMPER OVER FLOW Part Number : `16236KVB900`
10	CIRCLIP IN.32 Part Number : `90652KVB900`
11	PIN DOWEL 8X12 Part Number : `90702KFM900`
12	Brg Comp Drive Shaft Part Number : `91005KVBN50`
12	Brg Comp Drive Shaft Part Number : `91010K1AN80`
13	OIL SEAL, 16X26X6 Part Number : `91211PE9003`
13	OIL SEAL, 16X26X6 Part Number : `91212K44V01`
14	SCREW TAPPING 4X8 Part Number : `9390334120`
15	CLIP, TUBE(C12) Part Number : `9500280000`
16	BOLT FLANGE 6X14 Part Number : `960010601400`
17	BOLT FLANGE 6X35 Part Number : `960010603500`
18	BOLT, FLANGE, 6X85 Part Number : `960010608500`
19	BOLT SOCKET 6X22 Part Number : `966000602207`
