Diagram Bagian

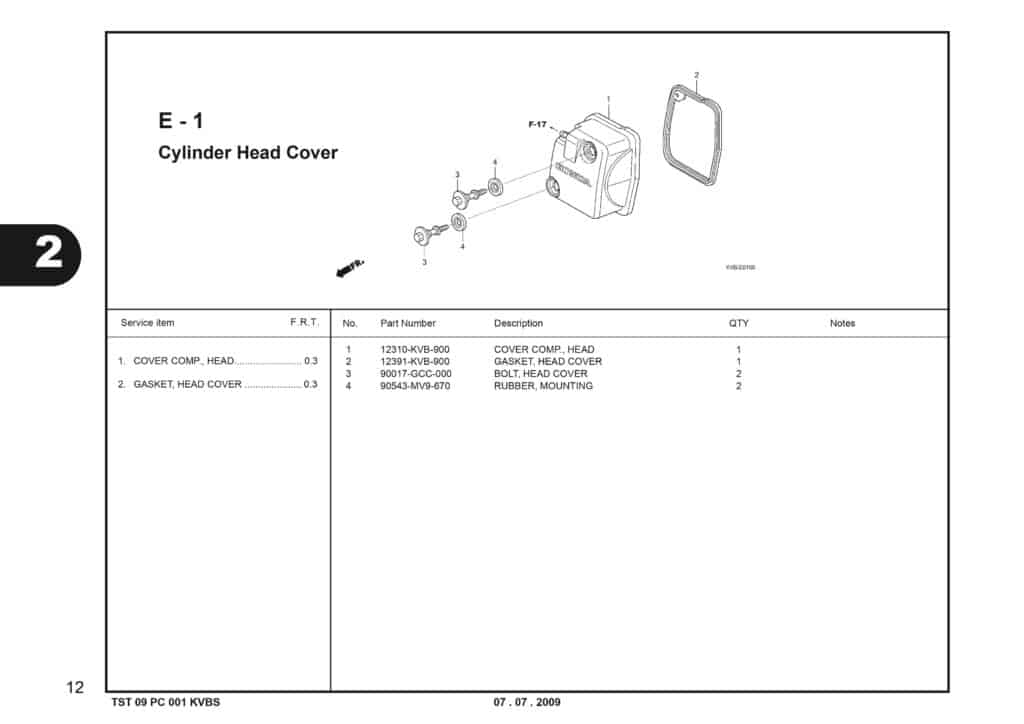

E-1 Cylinder Head Cover – Katalog Suku Cadang Honda Vario Techno
Technical Diagram
Daftar Suku Cadang
# Informasi Produk Visual
1
COVER COMP HEAD
Part Number : 12310KVB900
COVER COMP HEAD
2
GASKET HEAD COVER
Part Number : 12391KVB900
GASKET HEAD COVER
3
BOLT HEAD COVER
Part Number : 90017GCC000
BOLT HEAD COVER
3
BOLT HEAD COVER
Part Number : 90017KGH900
BOLT HEAD COVER
4
RUBBER, MOUNTING
Part Number : 90543MV9670
RUBBER, MOUNTING
