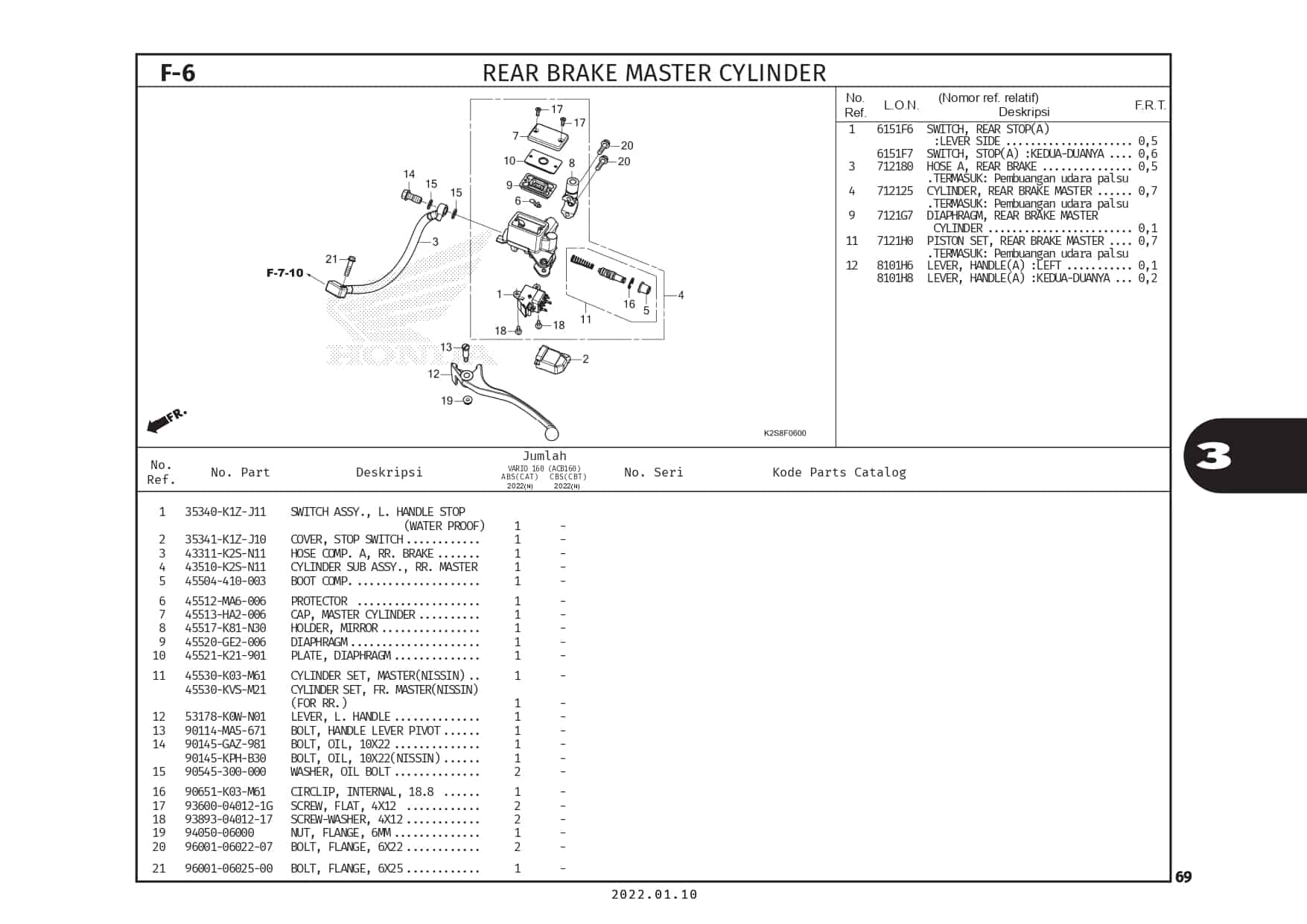

F6 – Rear Brake Master Cylinder – Katalog Honda Vario 160

#	Informasi Produk	Visual
1	SW ASSY,LH STOP(WATER PROOF) Part Number : `35340K1ZJ11`
2	COVER,LH STOP SW Part Number : `35341K1ZJ10`
3	HOSE COMP A,RR BRAKE Part Number : `43311K2SN11`
4	SUB ASSY,RR M/C Part Number : `43510K2SN11`
5	BOOT COMP Part Number : `45504410003`
6	PROTECTOR Part Number : `45512MA6006`
7	CAP,MASTER CYL Part Number : `45513HA2006`
8	HOLDER, MIRROR Part Number : `45517K81N30`
9	DIAPHRAGM Part Number : `45520GE2006`
10	PLATE DIAPHRAGM Part Number : `45521K21901`
11	CYLINDER SET.FR M Part Number : `45530KVSM21`
11	CYLINDER SET, MASTER Part Number : `45530K03M61`
12	LEVER,L HNDL Part Number : `53178K0WN01`
13	BOLT, HANDLE LEVER PIVOT Part Number : `90114MA5671`
14	BOLT OIL, 10X22 (NISSIN) Part Number : `90145KPHB30`
14	BOLT OIL 10X22 Part Number : `90145GAZ981`
15	WASHER OIL BOLT Part Number : `90545300000`
16	CIRCLIP, INTERNAL, 18.8 Part Number : `90651K03M61`
17	SCREW FLAT, 4X12 Part Number : `93600040121G`
18	SCREW WASHER 4X12 Part Number : `938930401217`
19	NUT,FLANGE 6MM Part Number : `9405006000`
20	BOLT FLANGE 6X22 Part Number : `960010602207`
20	BOLT FLANGE 6X22 Part Number : `960010602200`
21	BOLT FLANGE 6X25 Part Number : `960010602500`
