| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SWITCH FR STOP ASSY | 35340MGSD31 |
|
| 1 | SWITCH FR STOP ASSY | 35340KWB601 |
|
| 2 | HOSE COMP, FR BRK | 45126K2SN01 |
|
| 3 | CLAMPER COMP A,BRAKE HOSE | 45156K2SN00 |
|
| 4 | CLAMPER B,BRAKE HOSE | 45157K2SN00 |
|
| 5 | BOOT COMP | 45504K59A71 |
|
| 6 | PROTECTOR | 45512K59A71 |
|

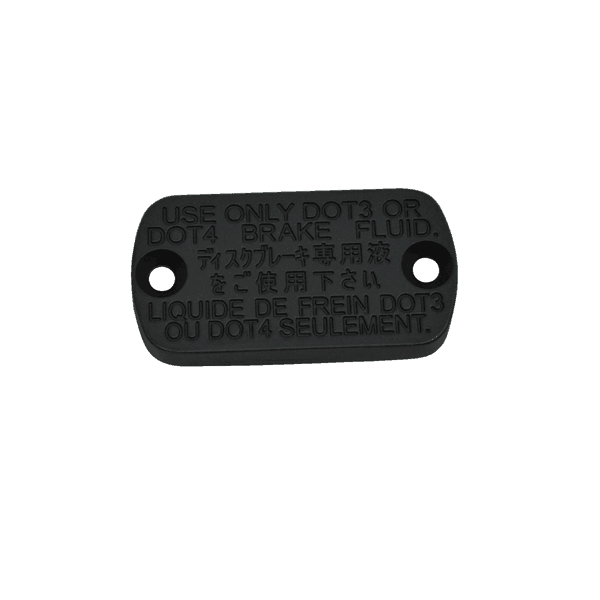

| 7 | CAP,MASTER CYLINDER | 45513K59A71 |
|
| 8 | HOLDER, MIRROR | 45517K81N30 |
|
| 9 | PLATE,DIAPHRAGM | 45518K59A71 |
|
| 10 | DIAPHRAGM | 45520K59A71 |
|
| 11 | CYLINDER SET MASTER | 45530K59A71 |
|
| 12 | M/C ASSY, FR | 45500K2SN01 |
|
| 13 | LEVER,R STRG HANDLE | 53175K59A71 |
|
| 14 | SPRING,DELAY | 53198K59A71 |
|
| 15 | SPRING,LEVER | 53199K59A71 |
|
| 16 | BOLT,LEVER | 90114K59A71 |
|
| 17 | BOLT OIL 10X22 | 90145GAZ981 |
|
| 17 | BOLT OIL, 10X22 (NISSIN) | 90145KPHB30 |
|
| 18 | WASHER OIL BOLT | 90545300000 |
|
| 19 | RING,STOP | 90651K59A71 |
|
| 20 | SCREW.FLAT 4X16 | 93600040161G |
|
| 21 | SCREW WASHER 4X12 | 938930401217 |
|
| 22 | NUT FLANGE 6MM | 9405006070 |
|
| 23 | BOLT FLANGE 6X12 | 957010601200 |
|
| 24 | BOLT FLANGE 6X22 | 960010602207 |
|
| 24 | BOLT FLANGE 6X22 | 960010602200 |
|
