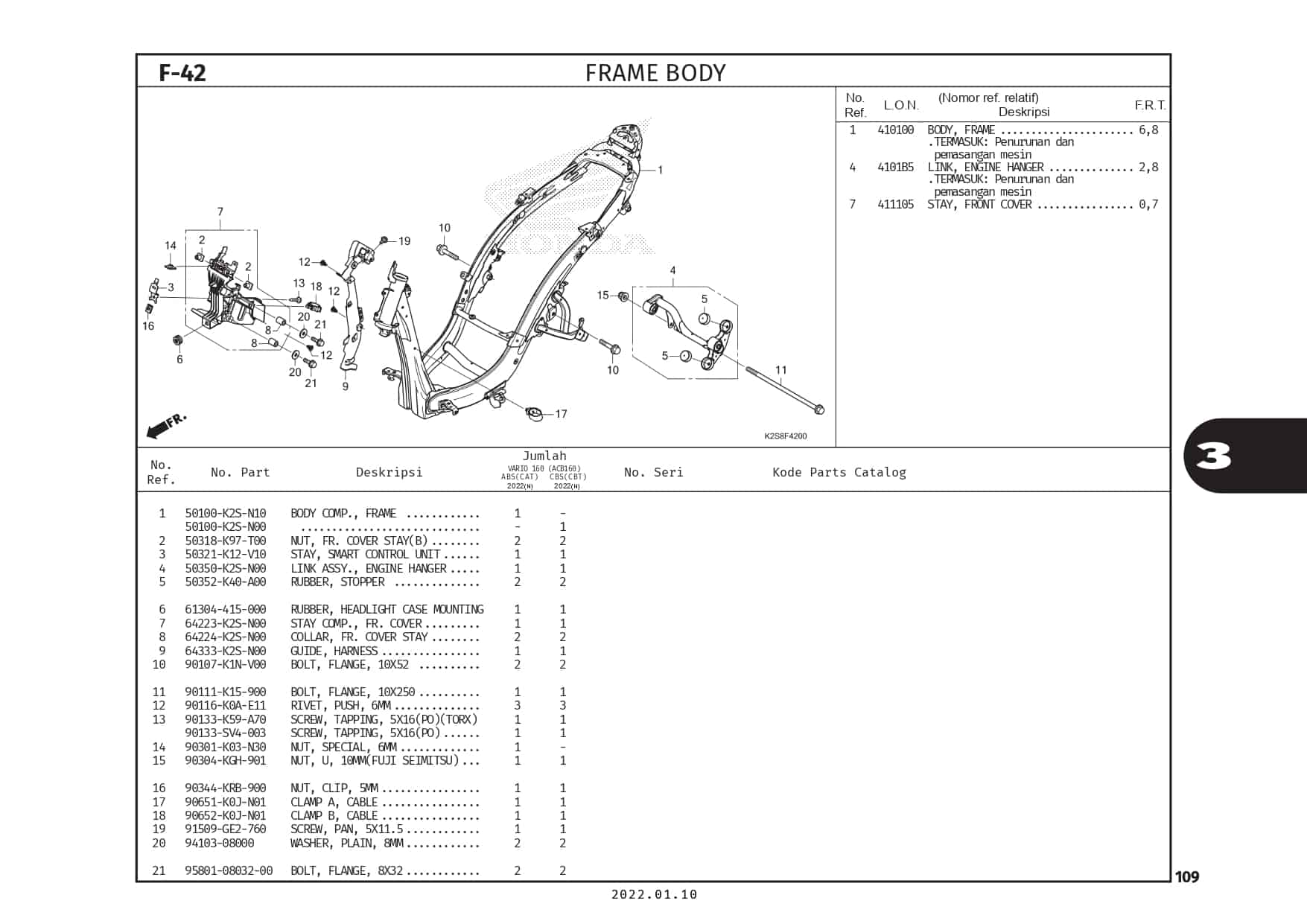

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FRAME BODY COMP | 50100K2SN10 | - |
| 1 | FRAME BODY COMP | 50100K2SN00 | - |
| 2 | NUT B,FR COVER STAY | 50318K97T00 |
|
| 3 | STAY, SMART ECU | 50321K12V10 |
|
| 4 | LINK ASSY,ENG HANGER | 50350K2SN00 |
|
| 5 | RUBBER,STOPPER | 50352K40A00 |
|
| 6 | RUBBER,HEADLIGHT | 61304415000 |
|
| 7 | STAY COMP,FR COVER | 64223K2SN00 |
|
| 8 | COLLAR, FR COVER STAY | 64224K2SN00 |
|
| 9 | GUIDE, HARNESS | 64333K2SN00 |
|
| 10 | BOLT, FLANGE 10X52 | 90107K1NV00 |
|
| 11 | BOLT FLANGE 10X250 | 90111K15900 |
|
| 12 | RIVET PUSH 6MM | 90116K0AE11 |
|
| 13 | SCREW TAPPING (PO) 5X16 (TORX) | 90133K59A70 |
|
| 14 | NUT,SPECIAL 6MM | 90301K03N30 |
|
| 15 | NUT U10MM | 90304KGH901 |
|
| 16 | NUT,CLIP 5MM | 90344KRB900 |
|
| 17 | CLAMP A,CABLE | 90651K0JN01 |
|
| 18 | CLAMP B,CABLE | 90652K0JN01 |
|
| 19 | SCREW PAN 5X11.5 | 91509GE2760 |
|
| 20 | WASHER PLAIN 8MM | 9410308000 |
|
| 21 | BOLT FLANGE 8X 32 | 958010803200 |
|
