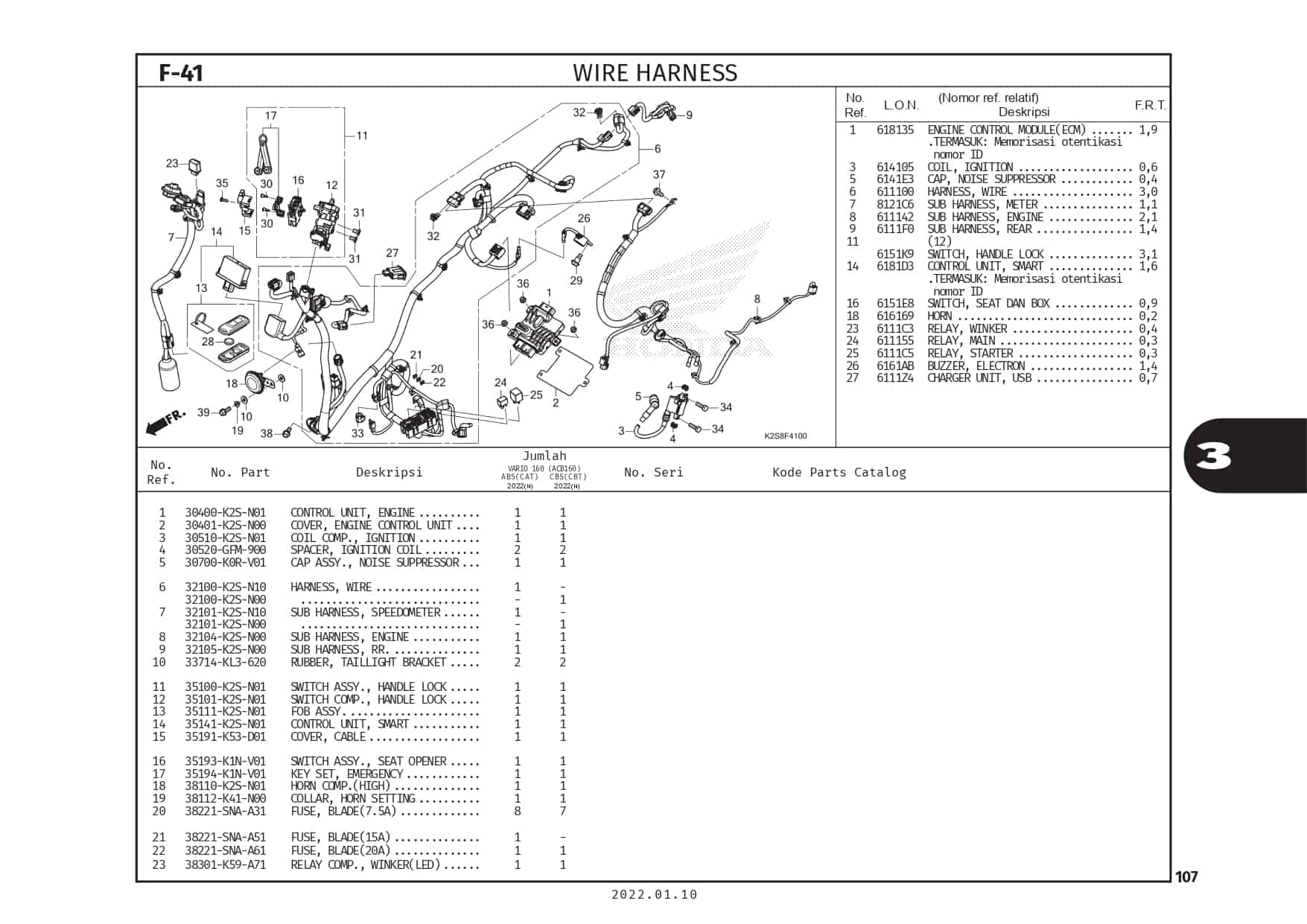

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | ENG CONTROL UNIT | 30400K2SN02 |
|
| 2 | COVER, ENG CONTL UNIT | 30401K2SN00 |
|
| 3 | COIL COMP,IGN(MP39) | 30510K2SN01 |
|
| 4 | SPACER IGN COIL | 30520GFM900 |
|
| 5 | CAP ASSY., NOISE SUPPRESSOR | 30700K0RV01 |
|
| 6 | HARNESS WIRE | 32100K2SN10 |
|
| 6 | HARNESS WIRE | 32100K2SN00 |
|
| 7 | SUB HARNESS,SPEEDOMETER | 32101K2SN10 |
|
| 7 | SUB HARNESS,SPEEDOMETER | 32101K2SN00 |
|
| 8 | SUB HARNESS,ENG | 32104K2SN00 |
|
| 9 | SUB HARNESS, REAR | 32105K2SN00 |
|
| 10 | RUBTAIL/LT BRKT. | 33714KL3620 |
|
| 11 | SWITCH ASSY,HNDL LOCK | 35100K2SN01 |
|
| 12 | SWITCH COMP,HNDL LOCK | 35101K2SN01 |
|
| 13 | FOB ASSY | 35111K2SN01 |
|
| 14 | SET,SMART CONTROL UNIT | 35141K2SN01 |
|
| 15 | COVER CABLE | 35191K53D01 |
|
| 16 | SW ASSY,SEAT OPENER | 35193K1NV01 |
|
| 17 | SET,EMERGENCY KEY | 35194K35V31 |
|
| 18 | HORN COMP (HIGH) | 38110K2SN01 |
|
| 19 | COLLAR, HORN SETTING | 38112K41N00 |
|
| 20 | FUSE, BLADE(7.5A) | 38221SNAA31 |
|
| 21 | FUSE, BLADE(15A) | 38221SNAA51 |
|
| 22 | BLADE FUSE,20A LOW-PROFILE | 38221SNAA61 |
|
| 23 | RELAY COMP,LED WINKER | 38301K59A71 |
|
| 24 | RELAY COMP,MICROISO LOW HIGHT | 38501KVZ631 |
|
| 24 | RELAY COMP., POWER | 38501KWN901 |
|
| 25 | RELAY COMP,POWER | 38502K59A11 |
|
| 25 | RELAY COMP,POWER | 38502KWN901 |
|
| 26 | BUZZER ASSY | 38720K2SN01 |
|
| 27 | UNIT ASSY, USB CHARGER (TYPE-A) | 38940K2TV11 |
|
| 28 | BATTERY COMP (CR 1220) | 35148K78N10 |
|
| 29 | BOLT,SPECIAL 6MM | 90101K15900 |
|
| 30 | SCREW OPENER SET | 90104K53D01 |
|
| 31 | SCREW U-LOCK FLAT 6X12 | 90164KZLA00 |
|
| 32 | CLIP COUPLER | 91535STK003 |
|
| 33 | DUMMY WPC 6P 025M | 91771MKKH11 |
|
| 34 | BOLT, HEX., 6X22 | 92101060224J |
|
| 35 | SCREW,TAPP 4X12 | 9390124320 |
|
| 36 | NUT,FLANGE 6MM | 9405006000 |
|
| 37 | BOLT FLANGE 6X10 | 957010601000 |
|
| 38 | BOLT FLANGE 6X12 | 957010601200 |
|
| 39 | BOLT FLANGE 6X16 | 957010601600 |
|
