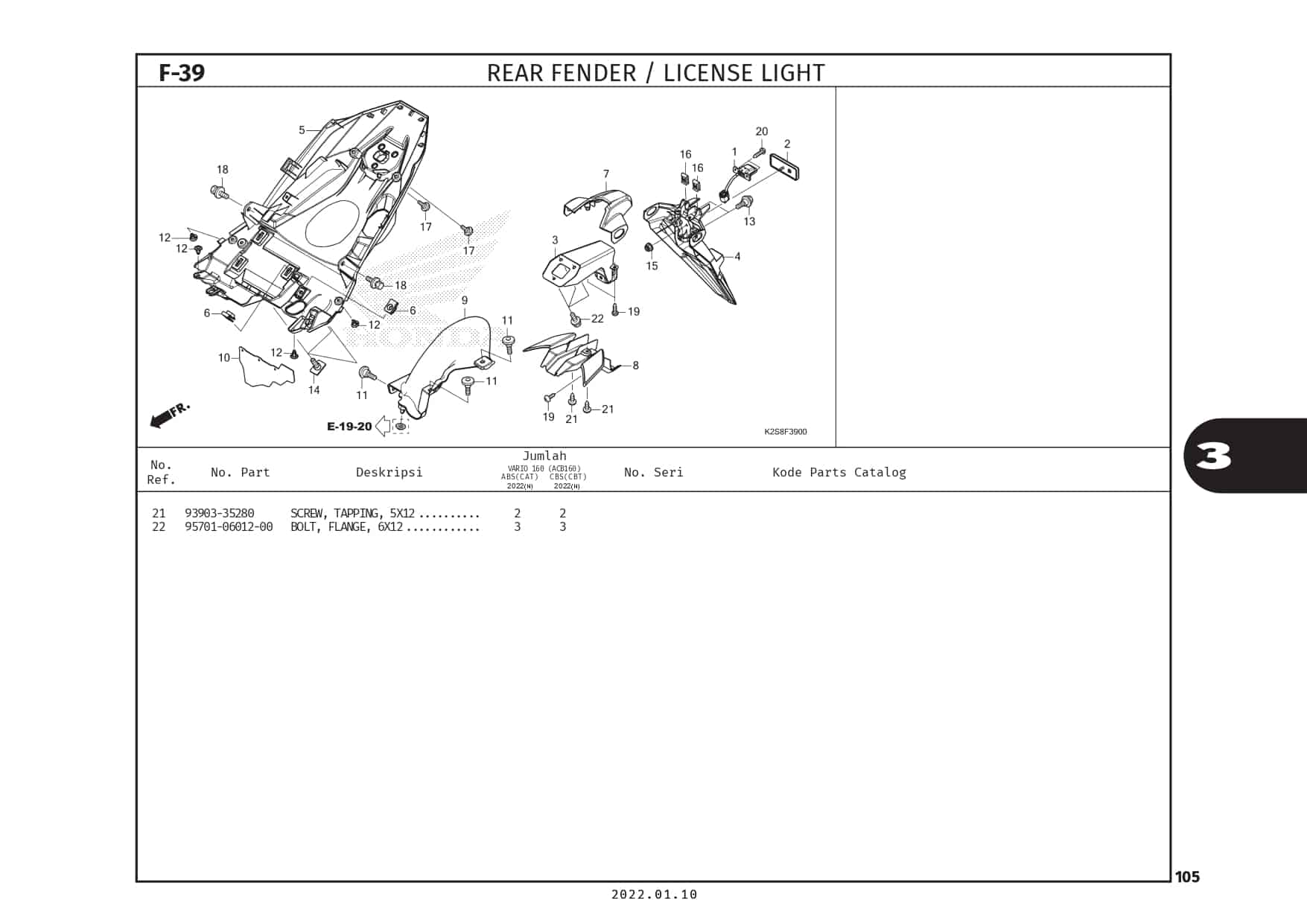

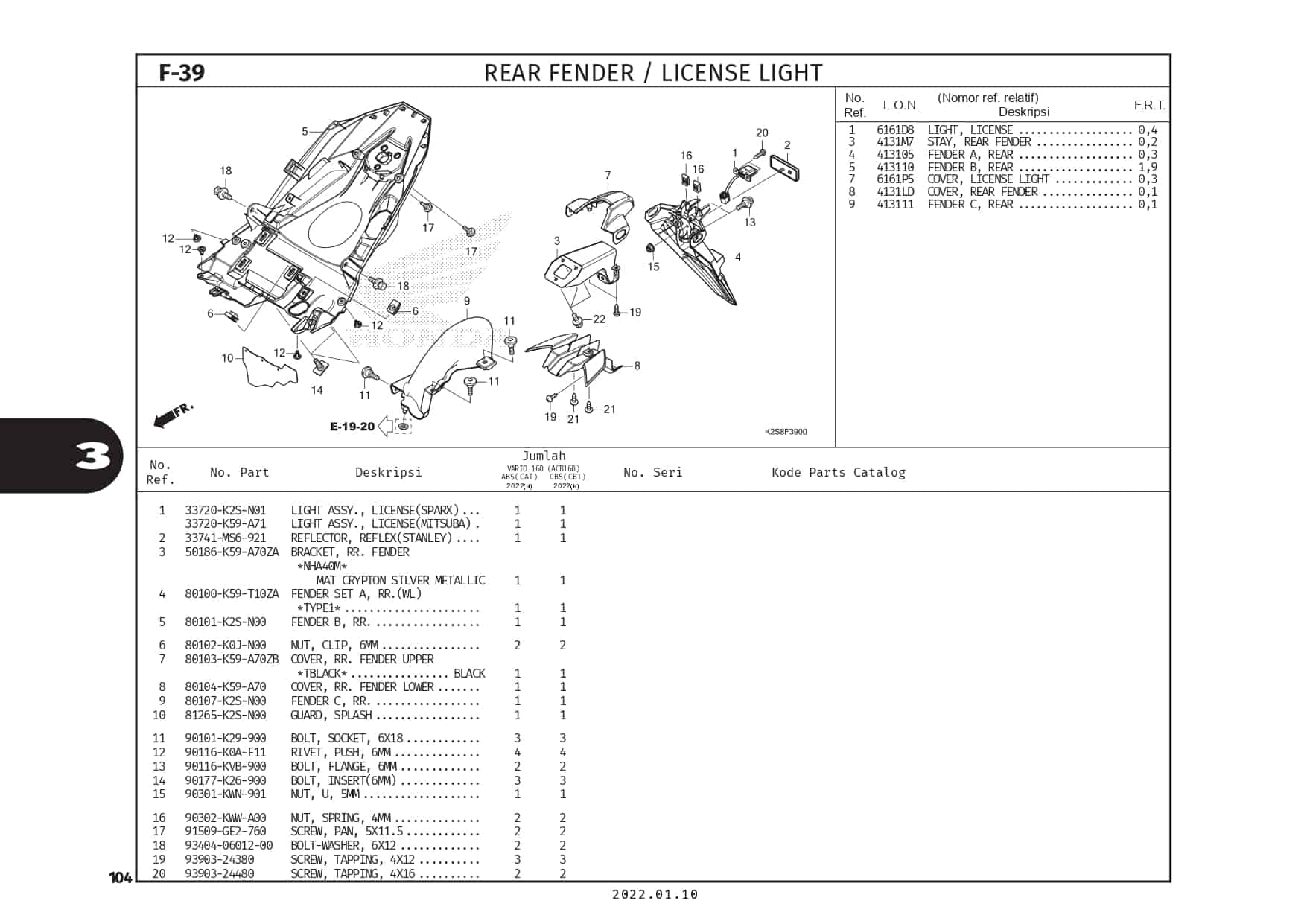

F39 – Rear Fender/License Light – Katalog Honda Vario 160

#	Informasi Produk	Visual
1	LIGHT ASSY, LICENSE Part Number : `33720K2SN01`
1	LIGHT ASSY, LICENSE Part Number : `33720K59A71`
2	REFLECTOR REFLEX(ST) Part Number : `33741MS6921`
3	BRKT,REAR FENDER NH-A40M Part Number : `50186K59A70ZA`
4	ST ILST,RR FENDER A TYPE 1 Part Number : `80100K59T10ZA`
4	Fender-A-Rear Part Number : `80105K59A70`
5	FENDER B, REAR Part Number : `80101K2SN00`
6	NUT,CLIP 6MM Part Number : `80102K0JN00`
7	COVER, REAR FENDER UPPER Part Number : `80103K59A70ZB`
8	COVER,REAR FENDER LOWER Part Number : `80104K59A70`
9	FENDER C, RR Part Number : `80107K2SN00`
10	GUARD,SPLASH Part Number : `81265K2SN00`
11	BOLT SOCKET 6X18 Part Number : `90101K29900`
12	RIVET PUSH 6MM Part Number : `90116K0AE11`
13	BOLT FLANGE 6MM Part Number : `90116KVB900`
14	BOLT INSERT 6MM Part Number : `90177K26900`
15	NUT, U, 5MM Part Number : `90301KWN901`
16	NUT SPRING 4MM Part Number : `90302KWWA00`
17	SCREW PAN 5X11.5 Part Number : `91509GE2760`
18	BOLT WASHER 6X12 Part Number : `934040601200`
19	SCREW TAPPING 4X12 Part Number : `9390324380`
20	SCREW, TAPPING, 4X16 Part Number : `9390324480`
21	SCREW, TAPPING, 5X12 Part Number : `9390335280`
22	BOLT FLANGE 6X12 Part Number : `957010601200`
