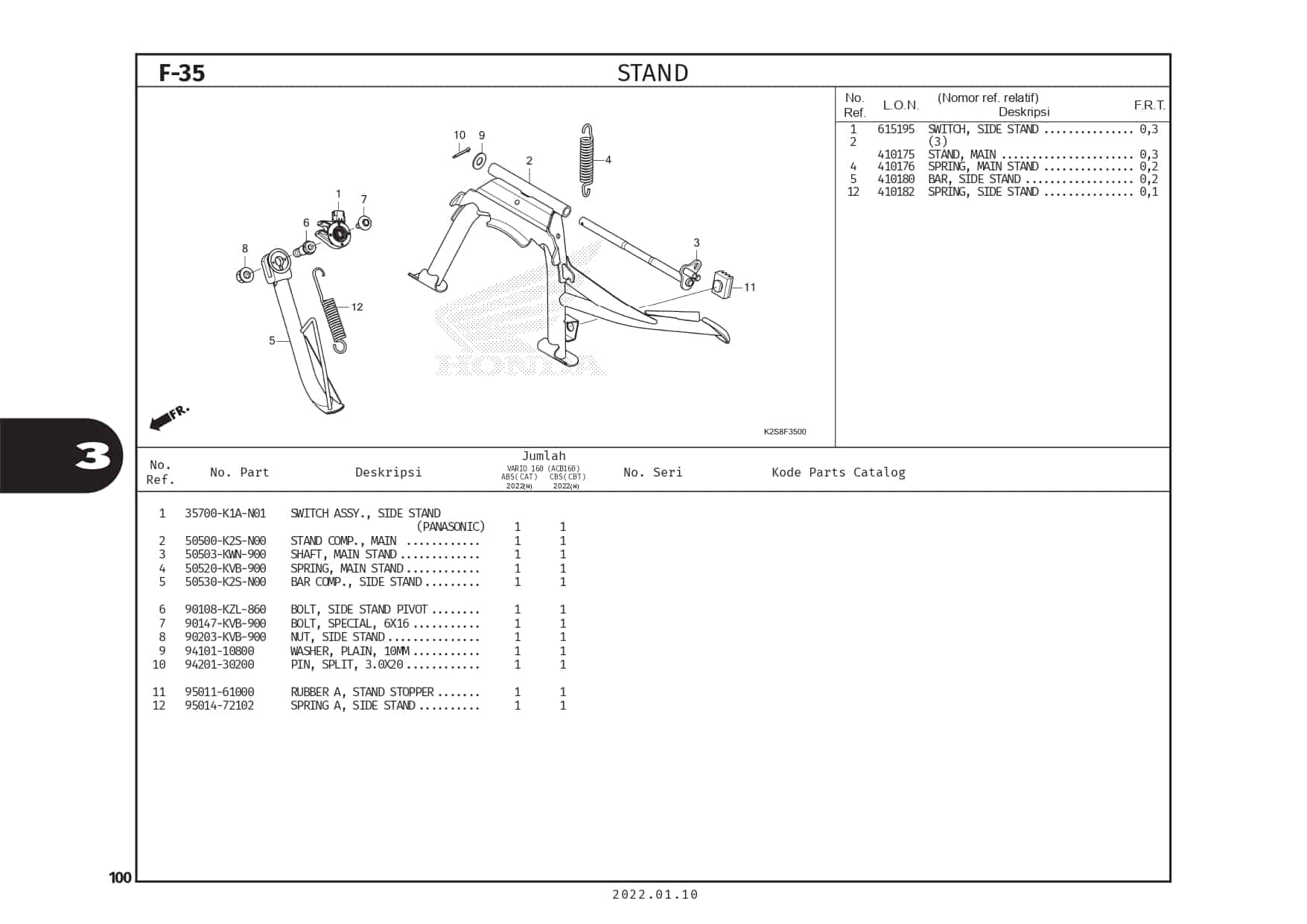

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SW ASSY,SIDE STAND | 35700K1AN01 |
|
| 2 | STAND COMP,MAIN | 50500K2SN00 |
|
| 3 | SHAFT,MAIN STAND | 50503KWN900 |
|
| 4 | SPRING MAIN STAND | 50520KVB900 |
|
| 5 | BAR COMP,SIDE STAND | 50530K2SN00 |
|
| 6 | BOLT, SIDE STAND PIVOT | 90108KZL860 |
|
| 7 | BOLT SPECIAL,6X16 | 90147KVB900 |
|
| 8 | NUT SIDE STAND | 90203KVB900 |
|
| 9 | WASHER PLAIN 10MM | 9410110800 |
|
| 10 | PIN,COTTER 3X20 | 9420130200 |
|
| 11 | STOPPER RUBBER A STAND | 9501161000 |
|
| 12 | SPRING A SIDE STAND | 9501472102 |
|
