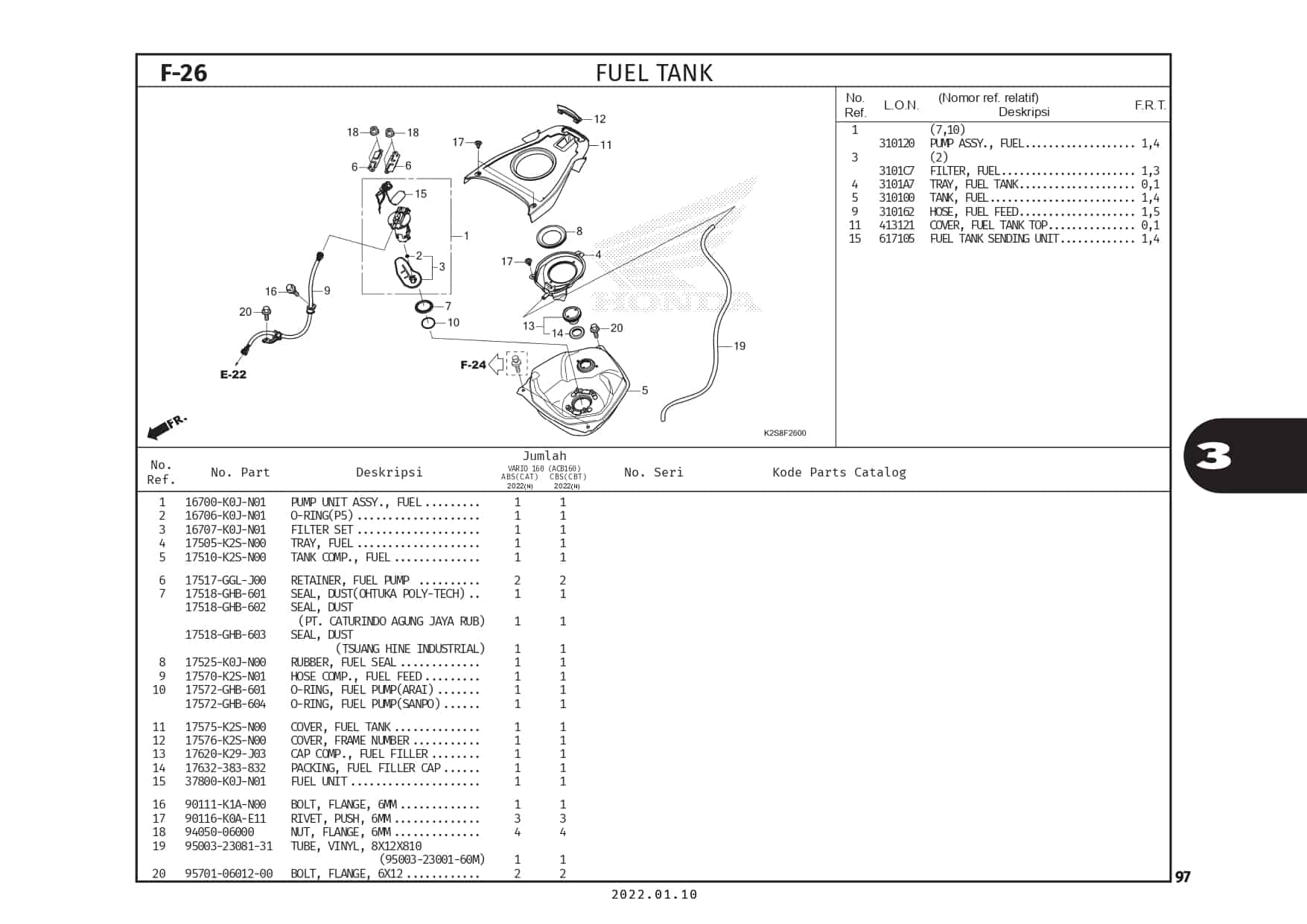

F26 – Fuel Tank – Katalog Honda Vario 160

#	Informasi Produk	Visual
1	UNIT ASSY,FUEL PUMP Part Number : `16700K0JN01`
2	O-RING,P5 Part Number : `16706K0JN01`
3	FILTER SET Part Number : `16707K0JN01`
4	TRAY,FUEL Part Number : `17505K2SN00`
5	TANK COMP, FUEL Part Number : `17510K2SN00`
6	RETAINER FUEL PUMP Part Number : `17517GGLJ00`
7	SEAL, DUST Part Number : `17518GHB601`
7	SEAL, DUST Part Number : `17518GHB602`
8	RUBBER,FUEL SEAL Part Number : `17525K0JN00`
9	HOSE COMP,FUEL FEED Part Number : `17570K2SN01`
10	O-RING, FUEL PUMP Part Number : `17572GHB601`
10	O-RING, FUEL PUMP Part Number : `17572GHB602`
10	O-RING,FUEL PUMP Part Number : `17572GHB604`
10	O-RING,FUEL PUMP Part Number : `17572GGLJ00`
11	COVER, FUEL TANK Part Number : `17575K2SN00`
12	COVER, FRAME NUMBER Part Number : `17576K2SN00`
13	CAP COMP,FUEL FILLER Part Number : `17620K29J03`
14	PACKING,FUEL FILLER CAP Part Number : `17632383832`
15	FUEL UNIT Part Number : `37800K0JN01`
16	BOLT FLANGE 6MM Part Number : `90111K1AN00`
17	RIVET PUSH 6MM Part Number : `90116K0AE11`
18	NUT,FLANGE 6MM Part Number : `9405006000`
19	V.TUBE,8X12X810 Part Number : `950032308131`
19	BULK.VT-BH,8X12X1 Part Number : `950032300160M`
20	BOLT FLANGE 6X12 Part Number : `957010601200`
