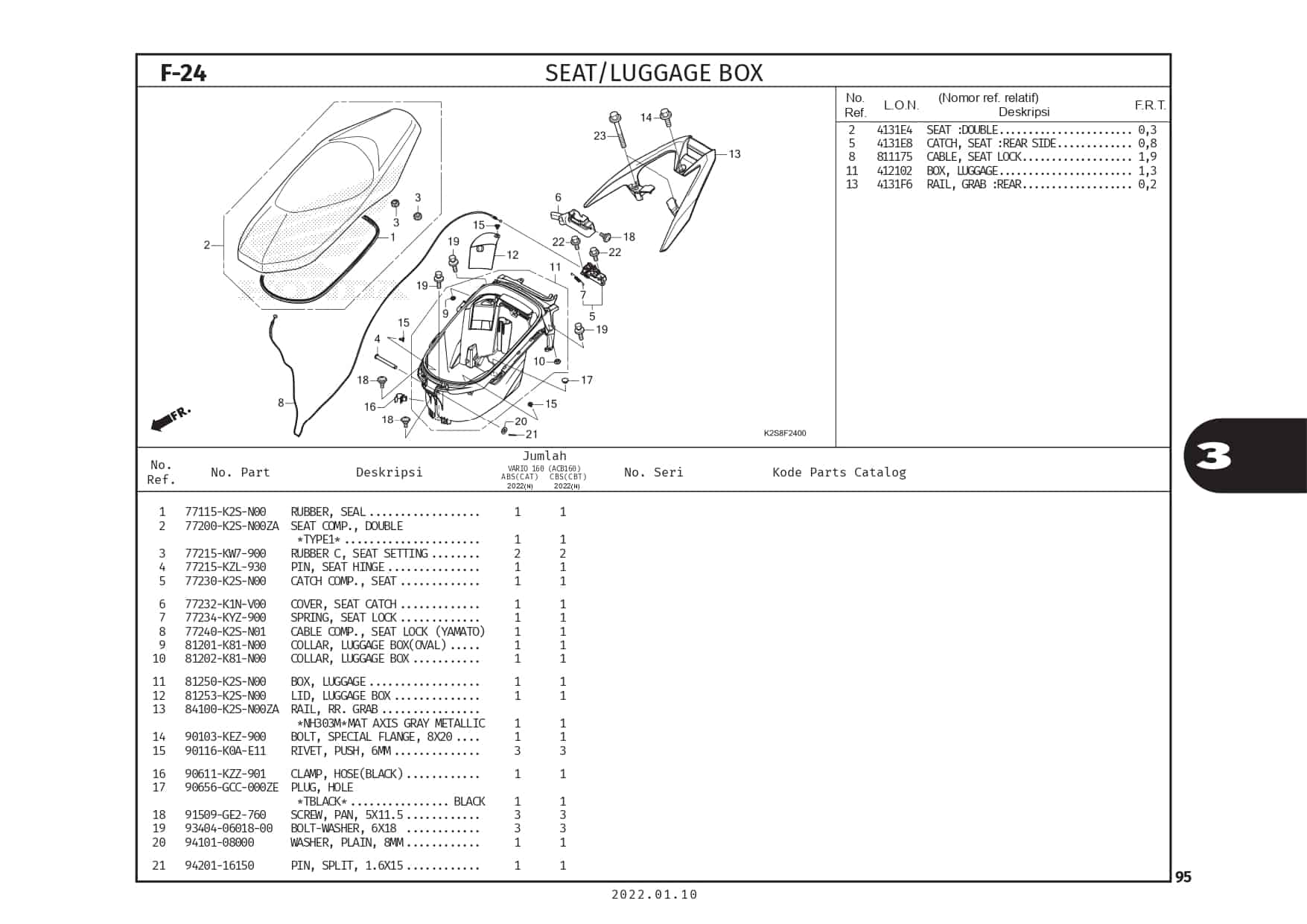

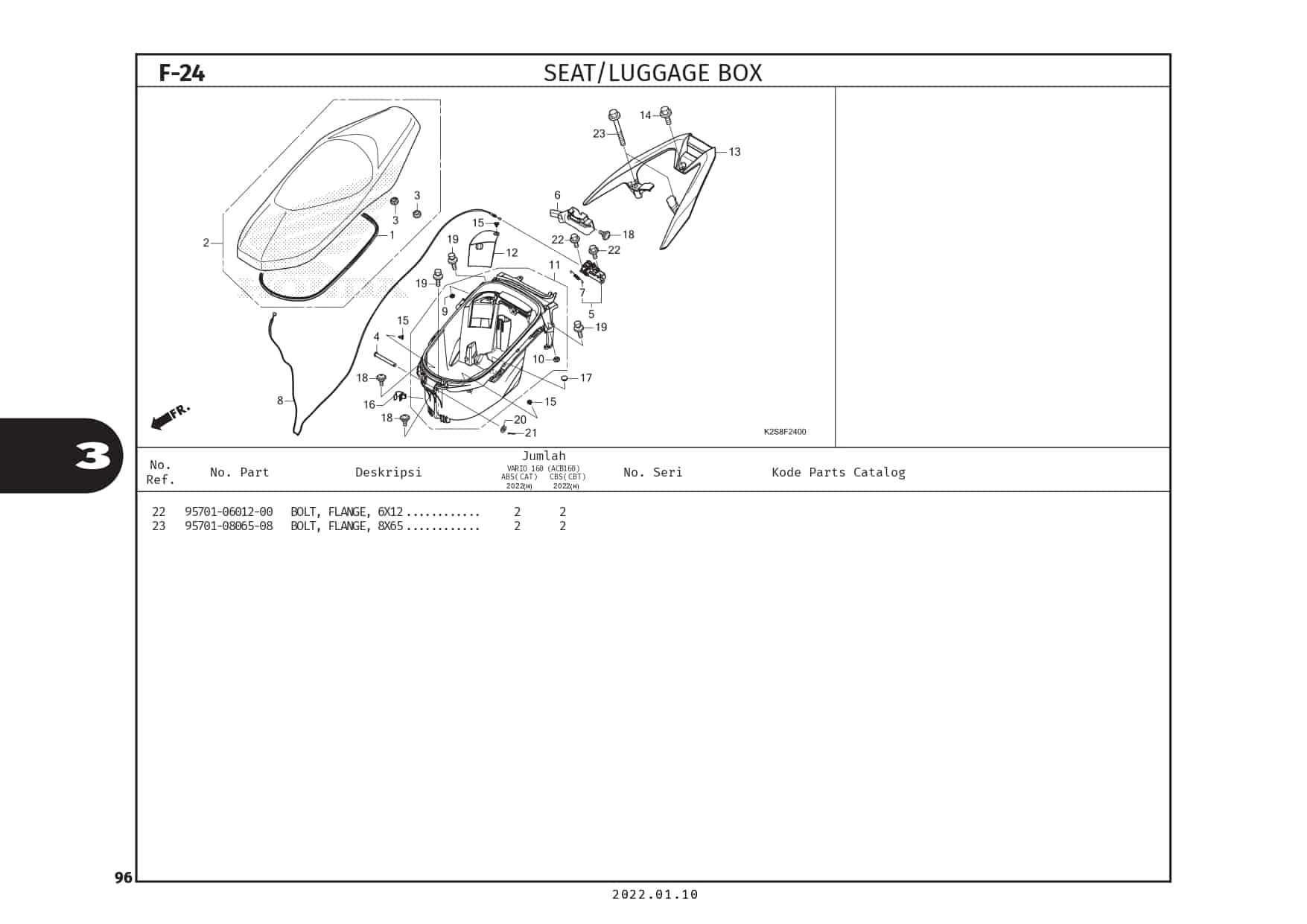

F24 – Seat / Luggage Box – Katalog Honda Vario 160

#	Informasi Produk	Visual
1	RUBBER SEAL Part Number : `77115K2SN00`
2	SEAT COMP, DOUBLE TYPE 1 Part Number : `77200K2SN00ZA`
3	RUBR.C SEAT SET Part Number : `77215KW7900`
4	PIN SEAT HINGE Part Number : `77215KZL930`
5	CATCH COMP, SEAT Part Number : `77230K2SN10`
6	COVER,SEAT CATCH Part Number : `77232K1NV00`
7	SPRING SEAT LOCK Part Number : `77234KYZ900`
8	CABLE COMP,SEAT LOCK Part Number : `77240K2SN01`
9	COLLAR BOX LUGGAGE Part Number : `81201K81N00`
10	COLLAR BOX LUGGAGE Part Number : `81202K81N00`
11	BOX, LUGGAGE Part Number : `81250K2SN00`
12	LID, LUGGAGE BOX Part Number : `81253K2SN00`
13	RAIL, RR GRAB (GRAY) Part Number : `84100K2SN00ZA`
14	BOLT, SPECIAL FLANGE, 8X20 Part Number : `90103KEZ900`
15	RIVET PUSH 6MM Part Number : `90116K0AE11`
16	CLAMP HOSE Part Number : `90611KZZ901`
17	PLUG HOLE Part Number : `90656GCC000ZE`
18	SCREW PAN 5X11.5 Part Number : `91509GE2760`
19	BOLT WASHER 6X18 Part Number : `934040601800`
20	WASHER PLAIN 8MM Part Number : `9410108000`
21	PIN COTTER 16X15 Part Number : `9420116150`
22	BOLT FLANGE 6X12 Part Number : `957010601200`
23	BOLT FLANGE 8X65 Part Number : `957010806508`
