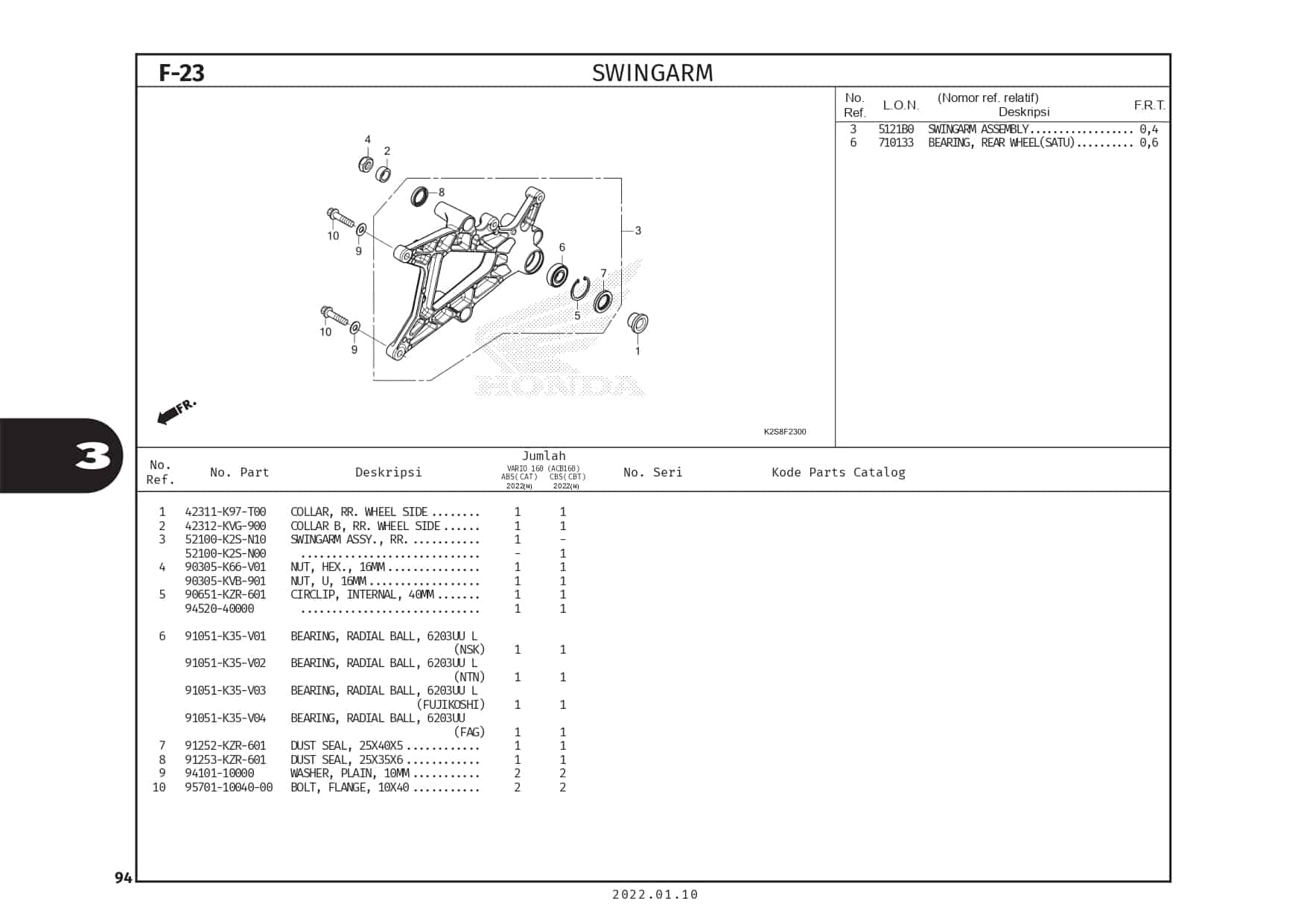

F23 – Swingarm – Katalog Honda Vario 160

#	Informasi Produk	Visual
1	COLLAR RR WHEEL S Part Number : `42311K97T00`
2	COLLAR B, RR WHEEL SIDE Part Number : `42312KVG900`
3	SWINGARM ASSY,REAR Part Number : `52100K2SN10`
3	SWINGARM ASSY,REAR Part Number : `52100K2SN00`
4	NUT HEX U 16MM Part Number : `90305KWN701`
4	NUT U 16MM Part Number : `90305KVB901`
5	CIRCLIP,IN 40 Part Number : `90651KZR601`
6	BEARING RADIAL BALL 6203UU LBL Part Number : `91051K35V01`
6	BEARING, RADIAL BALL, 6203UU Part Number : `91051K35V02`
6	BRG BALL RADIAL 6203 Part Number : `91051K35V03`
6	BRG BALL RADIAL 6203 Part Number : `91051K35V04`
7	DUST SEAL, 25X40X5 Part Number : `91252KZR601`
8	DUST SEAL, 25X35X6 Part Number : `91253KZR601`
9	WASHER PLAIN 10MM Part Number : `9410110000`
10	BOLT,FLANGE 10X40 Part Number : `957011004000`
