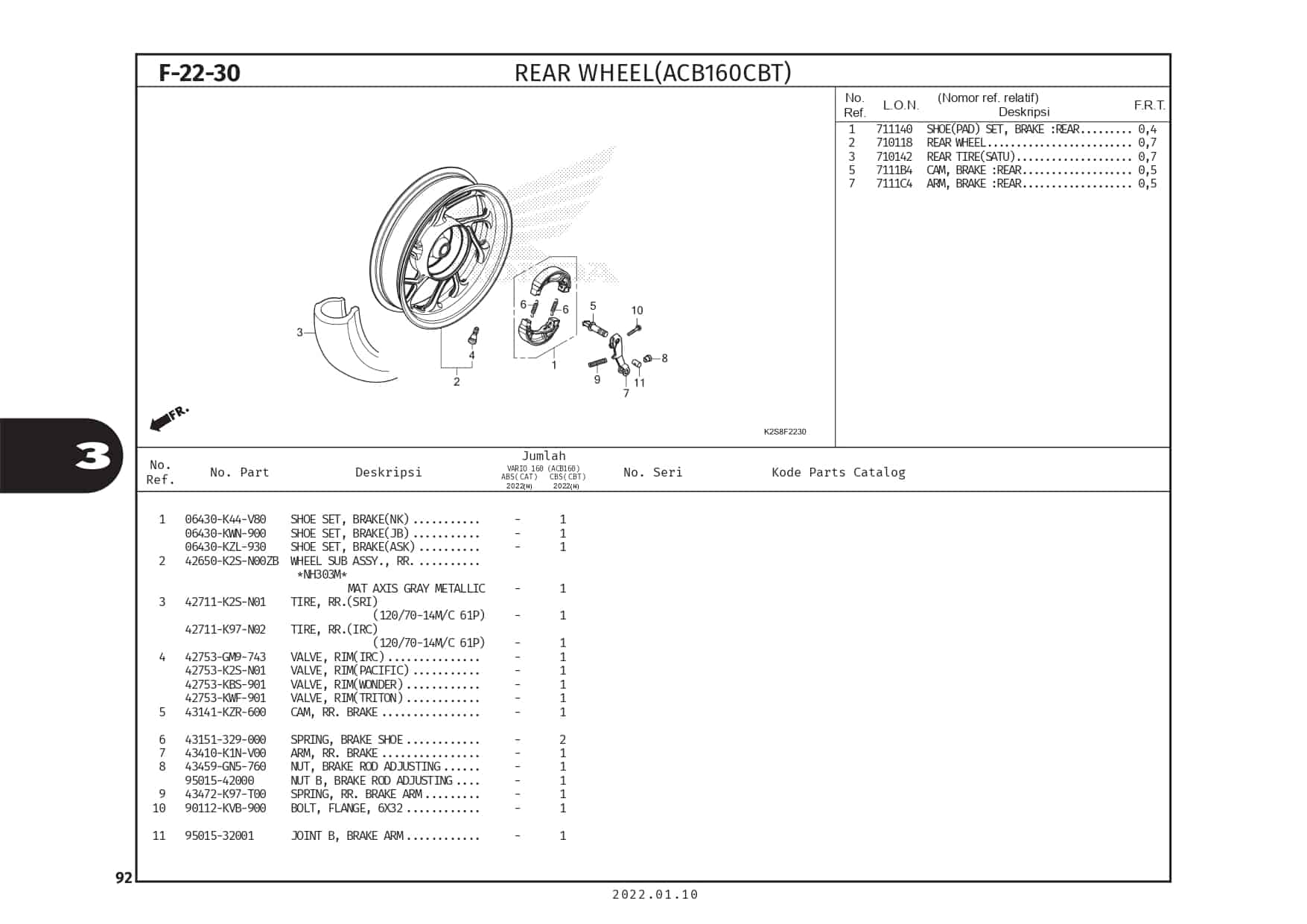

F22-30 Rear Wheel – Katalog Honda Vario 160

#	Informasi Produk	Visual
1	SHOE SET,BRAKE Part Number : `06430K44V80`
1	SHOE SET,BRAKE Part Number : `06430KWN900`
1	SHOE SET BRAKE Part Number : `06430KZL930`
2	WHEEL SUB ASSY,REAR (GREY) Part Number : `42650K2SN00ZB`
2	Wheel Sub Assy Rear Brown Part Number : `42650K2SN00ZA`
3	TIRE,RR(SRI) (120/70-14M/C 61P) Part Number : `42711K2SN01`
3	TIRE,RR(IRC) Part Number : `42711K97N02`
4	VALVE,RIM (INOUE) Part Number : `42753GM9743`
4	VALVE RIM (PIRELLI) Part Number : `42753KBS901`
4	VALVE,RIM(TRITON) Part Number : `42753KWF901`
5	CAM, RR. BRAKE Part Number : `43141KZR600`
6	SPRING,BRAKE SHOEREAR Part Number : `43151329000`
7	ARM, REAR BRAKE Part Number : `43410K1NV00`
8	NUT ADJUST Part Number : `9501542000`
9	SPG,RR BRK ARM Part Number : `43472K97T00`
10	BOLT FLANGE 6X32 Part Number : `90112KVB900`
11	JOINT BRAKE ARM Part Number : `9501532001`
