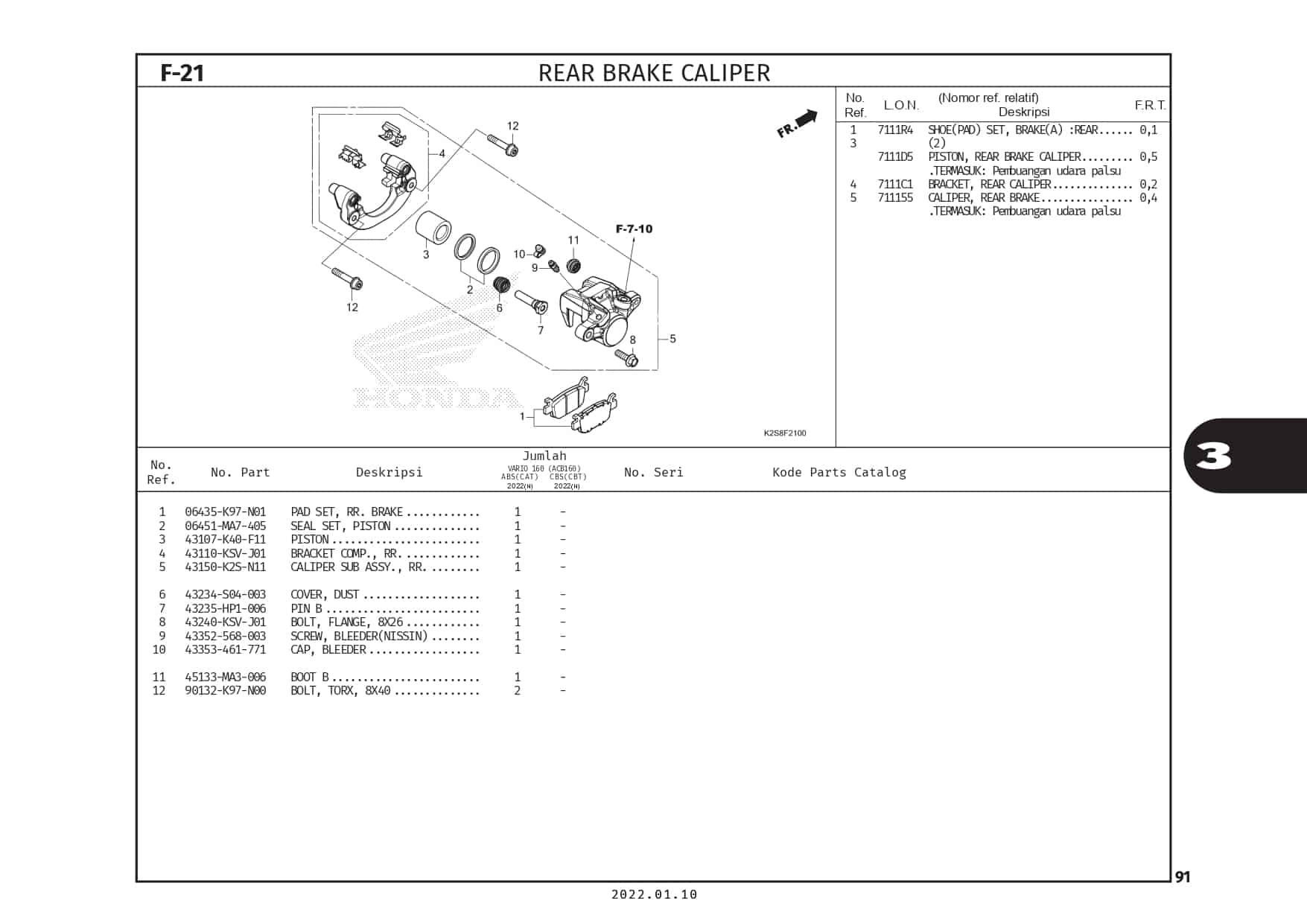

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | PAD SET RR BRAKE | 06435K97N01 |
|
| 2 | SEAL SET PISTON | 06451MA7405 |
|
| 3 | PISTON | 43107K40F11 |
|
| 4 | BRACKET COMP RR | 43110KSVJ01 |
|
| 5 | CALIPER SUB ASSY,RR | 43150K2SN11 |
|
| 6 | DUSTCOVER | 43234S04003 |
|
| 7 | PIN B | 43235HP1006 |
|
| 8 | BOLT FLANGE 8X26 | 43240KSVJ01 |
|
| 9 | SCREW,BLEEDER | 43352568003 |
|
| 9 | SCREW,BLEEDER | 43352568004 |
|
| 10 | CAP,BLEEDER | 43353461771 |
|
| 11 | BOOT B,PIN | 45133MA3006 |
|
| 12 | BOLT,TORX 8X40 | 90132K97N00 |
|
