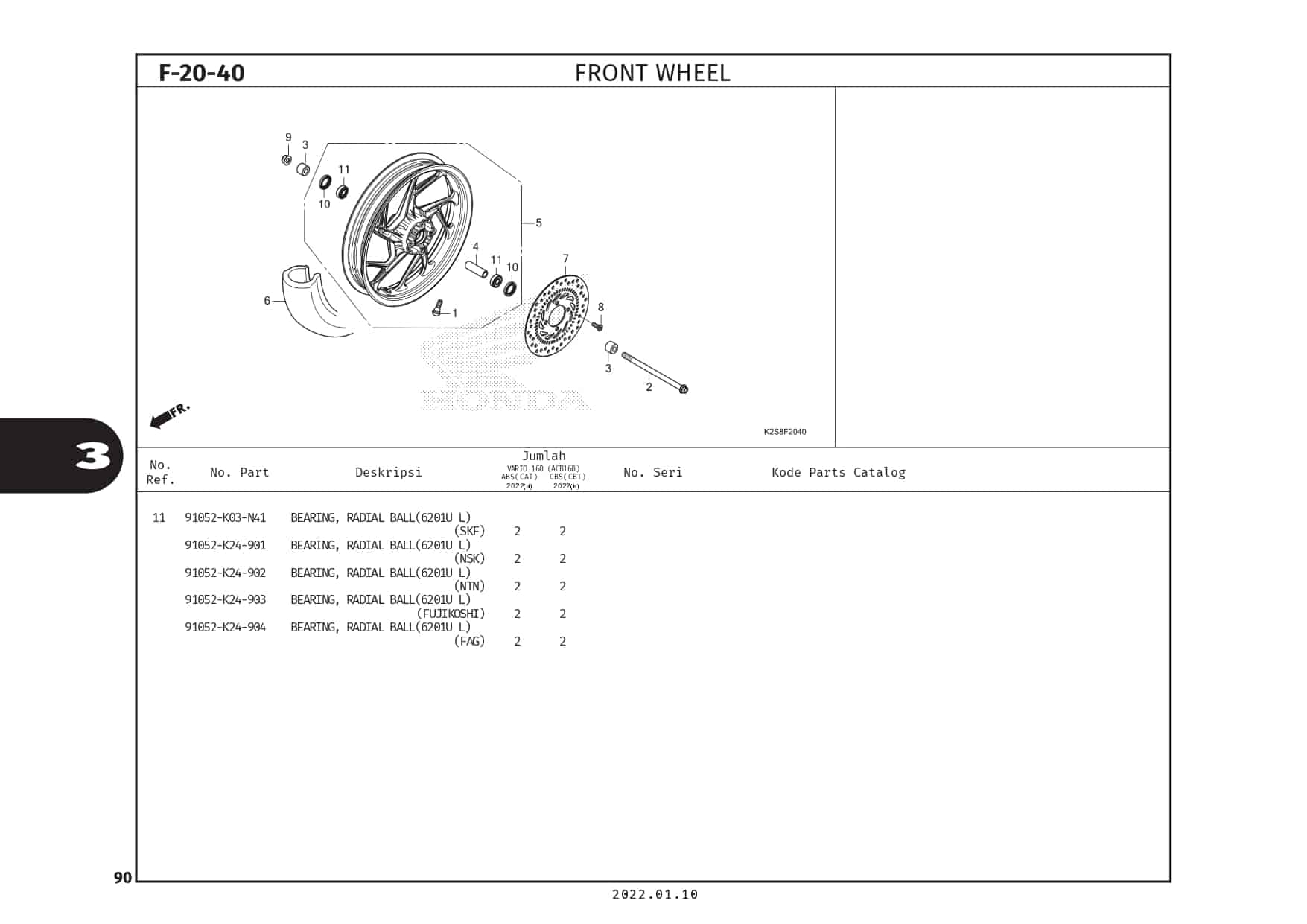

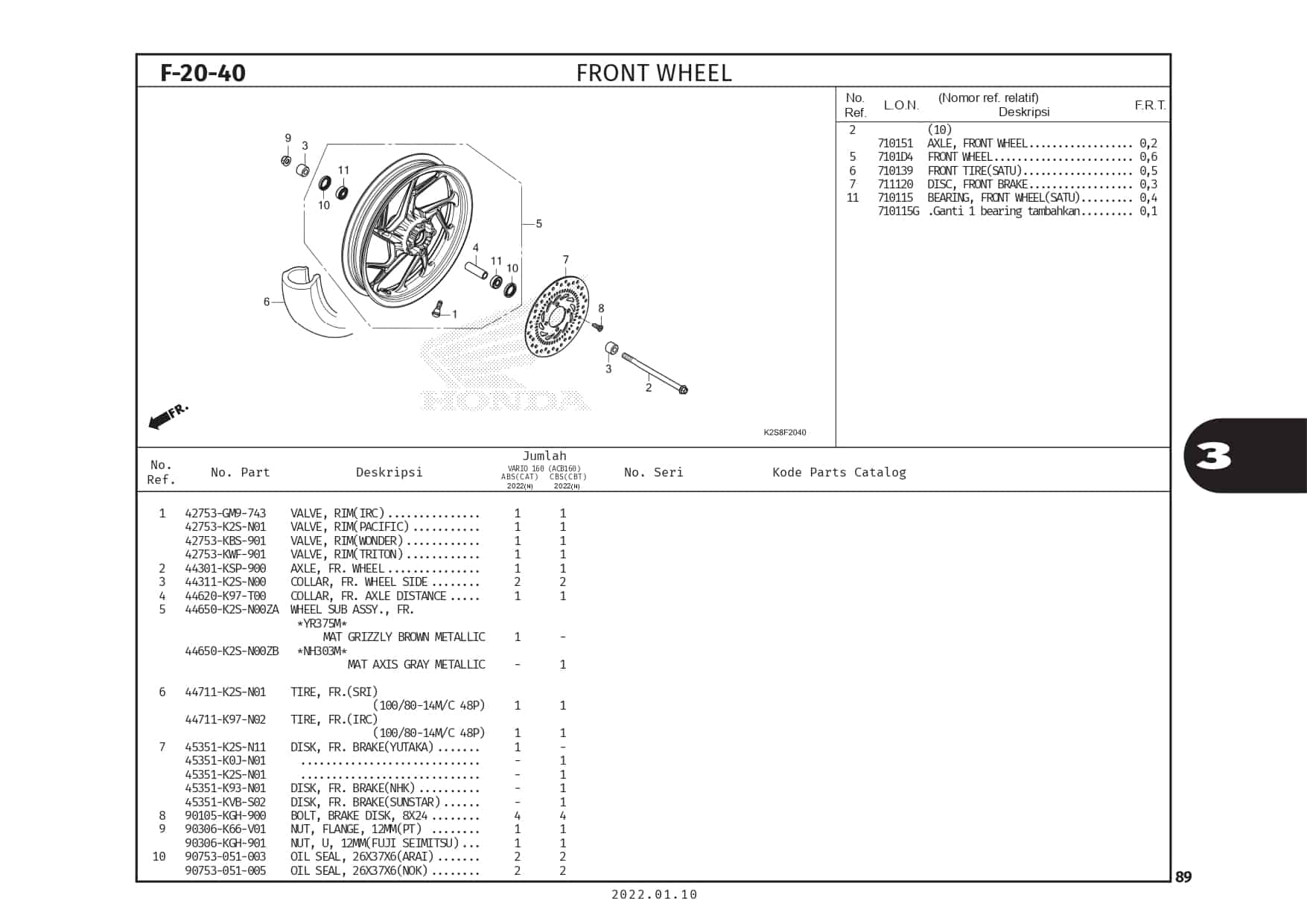

F20-40 – Front Wheel – Katalog Honda Vario 160

#	Informasi Produk	Visual
1	VALVE,RIM (INOUE) Part Number : `42753GM9743`
1	VALVE RIM (PIRELLI) Part Number : `42753KBS901`
1	VALVE,RIM(TRITON) Part Number : `42753KWF901`
2	AXLE FR WHEEL Part Number : `44301KSP900`
3	COLLAR,FR WHEEL SIDE Part Number : `44311K2SN00`
4	COLLAR FR AXLE DIT Part Number : `44620K97T00`
5	WHEEL SUB ASSY,FRONT (BROWN) Part Number : `44650K2SN00ZA`
5	WHEEL SUB ASSY,FRONT (GREY) Part Number : `44650K2SN00ZB`
5	Wheel Front Grey Part Number : `44601K2SN01MAG`
5	Wheel Front Brown Part Number : `44601K2SN01MBR`
6	TIRE,FRONT(SRI) (100/80-14M/C 48P) Part Number : `44711K2SN01`
6	TIRE,FR(IRC) Part Number : `44711K97N02`
7	DISK, FR BRAKE Part Number : `45351K2SN11`
7	DISK,FR BRAKE Part Number : `45351K0JN01`
7	DISK,FR BRAKE Part Number : `45351K2SN01`
7	DISK,FR BRAKE Part Number : `45351K93N01`
7	DISK FR BRAKE Part Number : `45351KVBS02`
8	BOLT BRK DISK 8X24 Part Number : `90105KGH900`
9	NUT,FLANGE U,12MM Part Number : `90306KTZD01`
9	NUT,U,12MM Part Number : `90306KGH901`
10	OIL SEAL 26X37X6 Part Number : `90753051003`
10	OIL SL,26X37X6 Part Number : `90753051005`
11	BRG BALL RADIAL 6201U L Part Number : `91052K03N41`
11	BRG,BALL RADIAL 6201U L Part Number : `91052K24903`
11	BEARING RADIAL BALL(6201U L) Part Number : `91052K24904`
