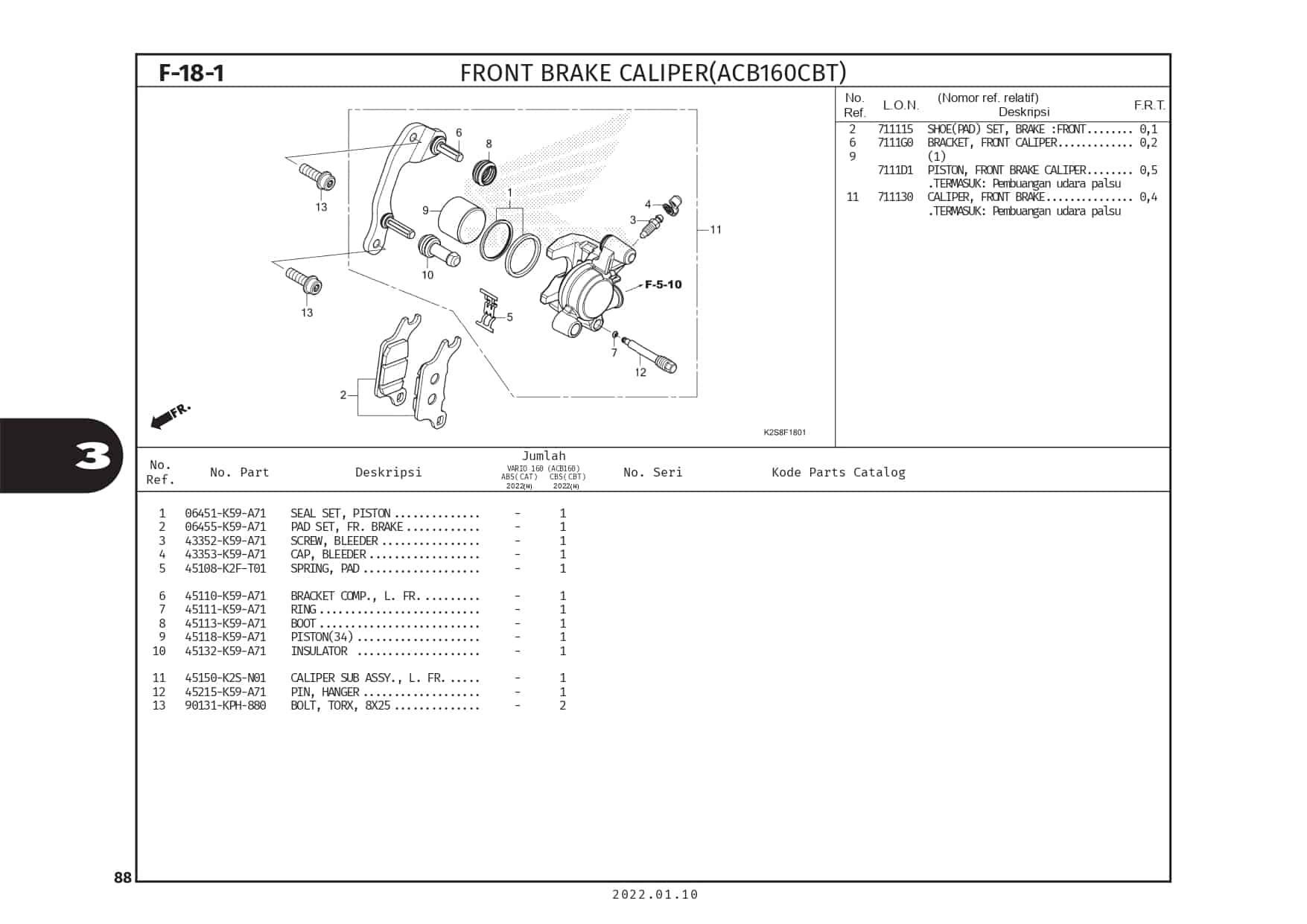

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SEAL SET,PISTON | 06451K59A71 |
|
| 2 | PAD SET,FR BRAKE | 06455K59A71 |
|
| 3 | SCREW, BLEEDER | 43352K59A71 |
|
| 4 | CAP, BLEEDER | 43353K59A71 |
|
| 5 | SPRING, PAD | 45108K2FT01 |
|
| 6 | BRACKET COMP, L FR | 45110K59A71 |
|
| 7 | RING | 45111K59A71 |
|
| 8 | BOOT | 45113K59A71 |
|
| 9 | PISTON, 34 | 45118K59A71 |
|
| 10 | INSULATOR | 45132K59A71 |
|
| 11 | CALIPER SUB ASSY L FR | 45150K2SN01 |
|
| 11 | CALIPER SUB ASSY L FR | 45150K59A71 |
|
| 12 | PIN, HANGER | 45215K59A71 |
|
| 13 | BOLT TORX 8X25 | 90131KPH880 |
|
