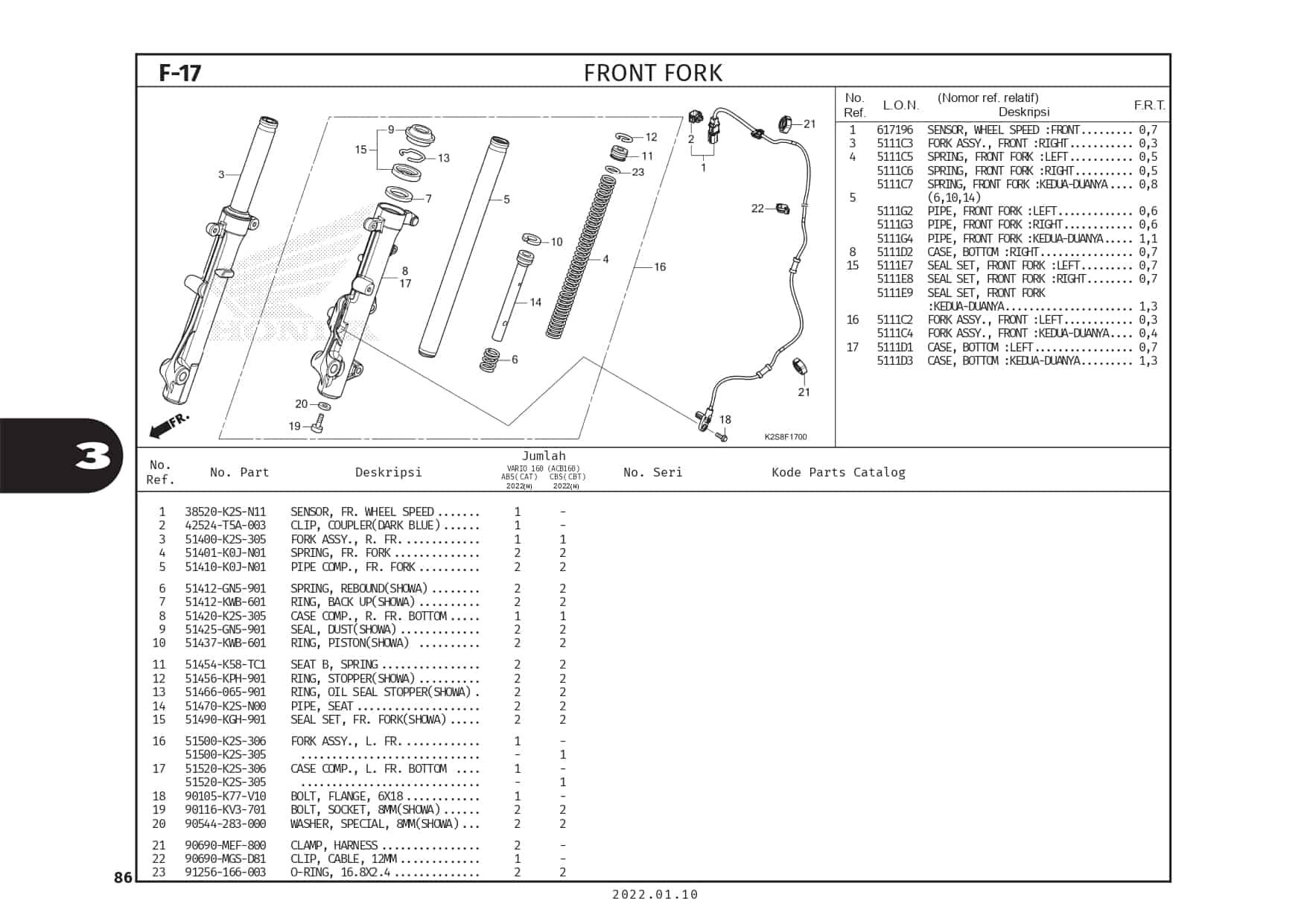

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SENSOR,WHEEL SPD FR | 38520K2SN11 |
|
| 2 | CLIP, COUPLER(DARK BLUE) | 42524T5A003 |
|
| 3 | FORK ASSY,R FRONT | 51400K2S305 |
|
| 3 | Fork Assy R Front | 51400K2SN01 |
|
| 4 | SPRING,FR FORK | 51401K0JN01 |
|
| 5 | PIPE COMP,FR FORK | 51410K0JN01 |
|
| 6 | SPG REBOUND | 51412GN5901 |
|
| 7 | RING BACK UP | 51412KWB601 |
|
| 8 | CASE COMP,R FR BOTTOM | 51420K2S305 |
|
| 8 | CASE COMP,R FR BOTTOM | 51420K2SN01 |
|
| 9 | DUST SEAL FR FORK | 51425GN5901 |
|
| 10 | RING PISTON | 51437KWB601 |
|
| 11 | SEAT B,SPRING | 51454K58TC1 |
|
| 12 | RIMG,STOPPER | 51456KPH901 |
|
| 13 | RING OIL SEAL | 51466065901 |
|
| 14 | PIPE,SEAT | 51470K2SN00 |
|
| 15 | SEAL SET FR FORK | 51490KGH901 |
|
| 15 | SEAL SET FR FORK | 51490KGH902 |
|
| 16 | FORK ASSY,L FRONT | 51500K2S306 |
|
| 16 | FORK ASSY,L FRONT | 51500K2S305 |
|
| 17 | CASE COMP,L FR BOTTOM | 51520K2S306 |
|
| 17 | CASE COMP,L FR BOTTOM | 51520K2S305 |
|
| 17 | CASE COMP,L FR BOTTOM | 51520K2SN01 |
|
| 18 | BOLT FLANGE NSHF | 90105K77V10 |
|
| 19 | BOLT,SOCKET 8MM | 90116KV3701 |
|
| 20 | WASHER SPECIAL (8MM) | 90544283000 |
|
| 21 | CLAMP HARNESS | 90690MEF800 |
|
| 22 | CLIP, CABLE, 12MM | 90690MGSD81 |
|
| 23 | O-RING,FR FORK | 91256166003 |
|
