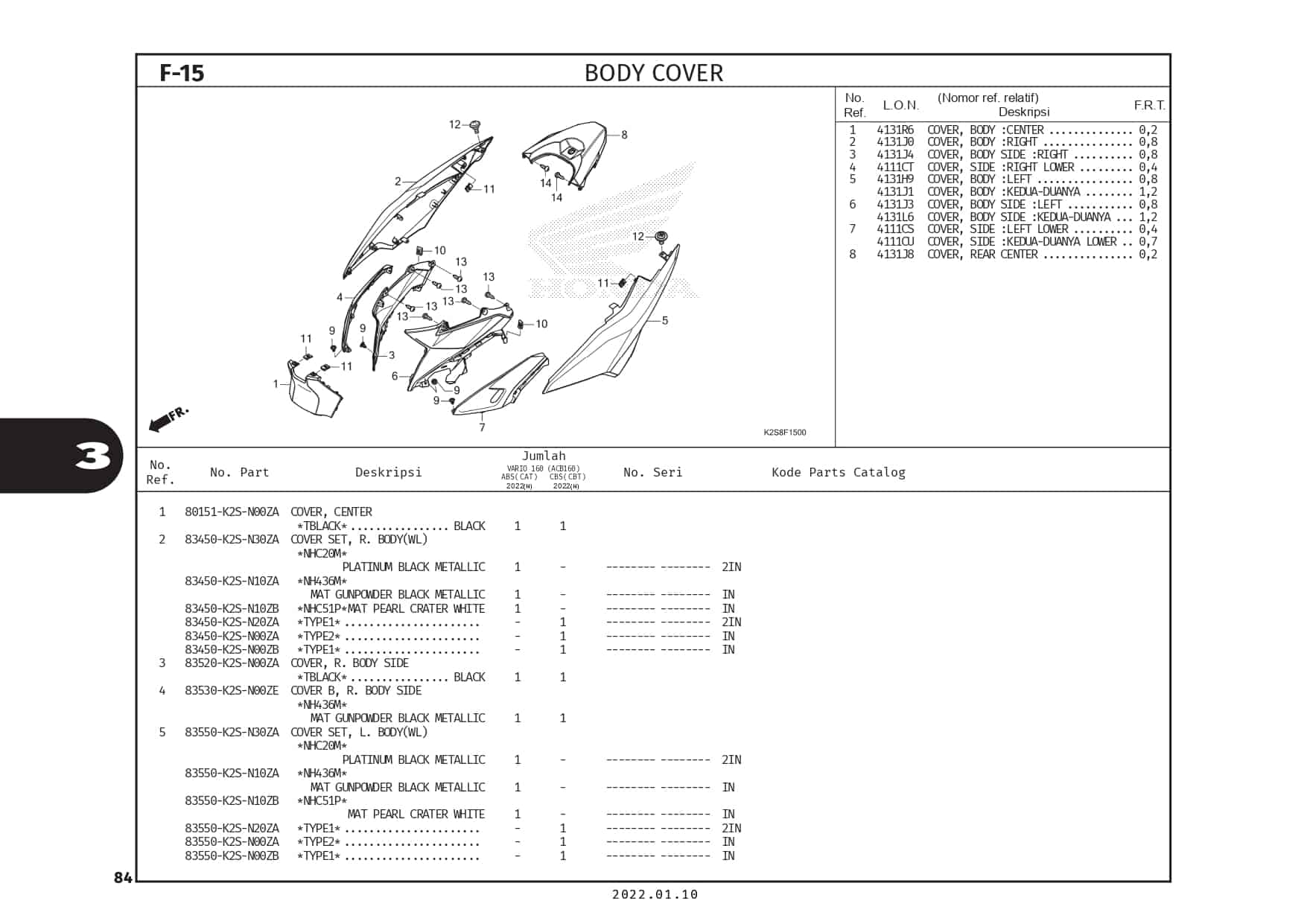

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | COVER,CENTER (BLK) | 80151K2SN00ZA |
|
| 2 | COVER, R BODY (PL BL ME) | 83500K2SN00PBL |
|
| 2 | COVER, R BODY (MT GN BL) | 83500K2SN00MGB |
|
| 2 | COVER, R BODY (MA PR CR) | 83500K2SN00MPC |
|
| 2 | COVER, R BODY (PL BL ME) | 83500K2SN00PBL |
|
| 2 | COVER, R BODY (MT GN BL) | 83500K2SN00MGB |
|
| 2 | COVER, R BODY (MT SO RED) | 83500K2SN00MSR |
|
| 2 | SET ILLUST, R BODY COVER TYPE 3 | 83450K2SH00ZA |
|
| 2 | SET ILLUST, R BODY COVER TYPE 2 | 83450K2SH00ZB |
|
| 2 | SET ILLUST, R BODY COVER TYPE 1 | 83450K2SH00ZC |
|
| 2 | Set Illust R Body Cover Type 1 | 83450K2SH10ZC |
|
| 2 | Set Illust R Body Cover Type 2 | 83450K2SH10ZB |
|
| 2 | Set Illust R Body Cover Type 3 | 83450K2SH10ZA |
|
| 2 | Cover R Body (MA BL MT) | 83500K2SN00MIB |
|
| 3 | COVER, R BODY SIDE (BLK) | 83520K2SN00ZA |
|
| 4 | COVER, R BODY SIDE (MT GN BL) | 83530K2SN00ZE |
|
| 5 | COVER, L BODY (PL BL ME) | 83600K2SN00PBL |
|
| 5 | COVER, L BODY (MT GN BL) | 83600K2SN00MGB |
|
| 5 | COVER, L BODY (MA PR CR) | 83600K2SN00MPC |
|
| 5 | COVER, L BODY (PL BL ME) | 83600K2SN00PBL |
|
| 5 | COVER, L BODY (MT GN BL) | 83600K2SN00MGB |
|
| 5 | COVER, L BODY (MT SO RED) | 83600K2SN00MSR |
|
| 5 | SET ILLUST, L BODY COVER TYPE 3 | 83550K2SH00ZA |
|
| 5 | Set Illust L Body Cover Type 1 | 83550K2SH10ZC |
|
| 5 | Set Illust L Body Cover Type 2 | 83550K2SH10ZB |
|
| 5 | Set Illust L Body Cover Type 3 | 83550K2SH10ZA |
|
| 6 | COVER, L BODY SIDE (BLK) | 83620K2SN00ZA |
|
| 7 | COVER, L BODY SIDE (MT GN BL) | 83630K2SN00ZE |
|
| 8 | COVER, RR CENTER (BLK) | 83750K2SN00ZA |
|
| 9 | RIVET PUSH 6MM | 90116K0AE11 |
|
| 10 | NUT SPRING 4MM | 90302KWWA00 |
|
| 11 | NUT CLIP 5MM. | 90677KANT00 |
|
| 12 | SCREW PAN 5X11.5 | 91509GE2760 |
|
| 13 | SCREW TAPPING 4X12 | 9390334310 |
|
| 14 | SCREW TAPPING 4X12 | 9390334380 |
|
